Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

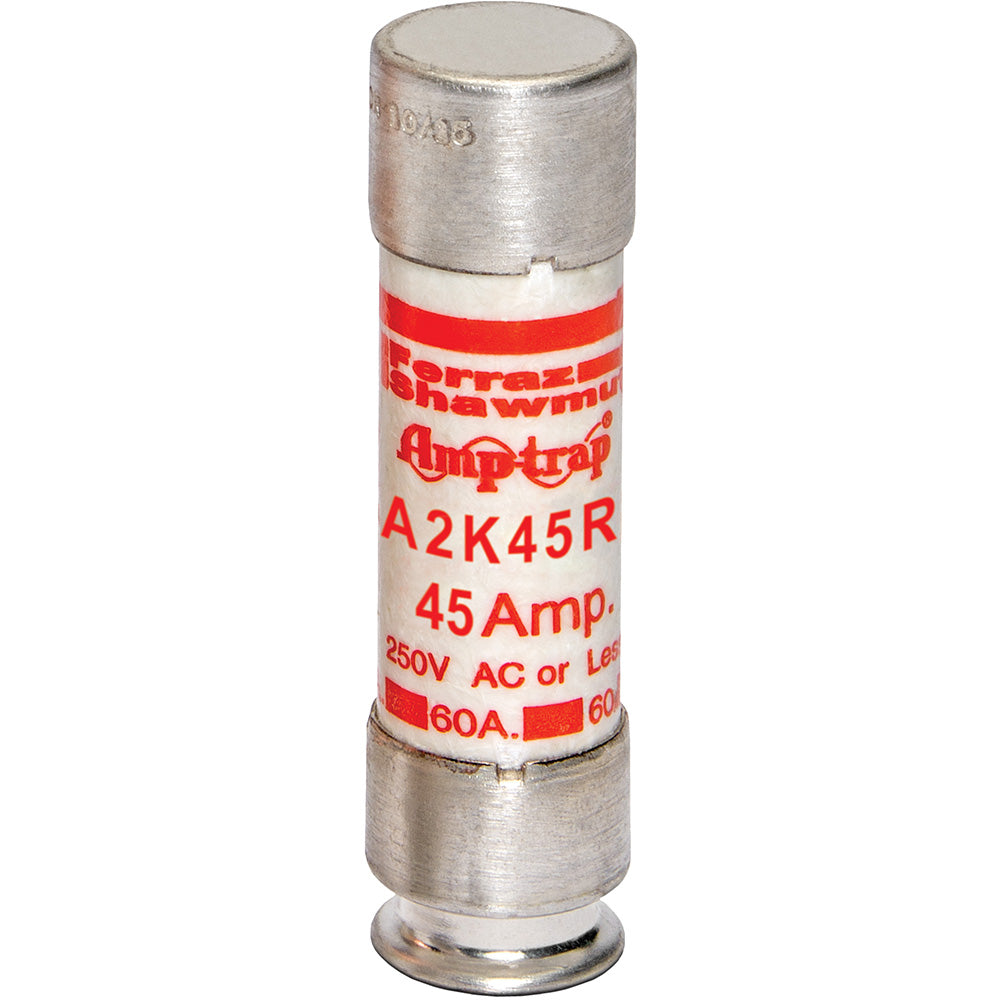

A2K45R
A2K45R is a 45A, 250VAC/250VDC Class RK1 fast-acting fuse from Mersen, designed for reliable circuit protection in industrial and commercial applications. This cartridge-style fuse features a ferrule terminal, current-limiting design, and rejection style to prevent incorrect replacement. It is UL and CSA listed for safety and compliance. The A2K45R fuse is constructed with a fiberglass-reinforced body for dimensional stability and durability in harsh environments. Its fast-acting characteristic provides rapid response to overcurrent events, protecting sensitive equipment. The fuse is suitable for use in fuse blocks and holders with clip mounting.
- Part Number: A2K45R
- Manufacturer: Mersen
- Amperage: 45A
- Voltage: 250VAC / 250VDC
- Fuse Class: Class RK1
- Speed/Characteristic: Fast-Acting
- Interrupt Rating: 200kA at 250VAC, 20kA at 250VDC
- Terminal Type: Ferrule
- Mounting Type: Clip
- Body Material: Fiberglass/Polycarbonate
- Approvals: UL Listed, CSA Certified
- Series: AMP-TRAP® A2K-R
Specifications
- Part Number: A2K45R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A2K-R Series
- Type : A2K-R
- Voltage : 250
- Amperage : 45
- AIC rating : 200kA@250V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001915148
- GTIN : 00782001915148
- Weight : 0.14
