Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

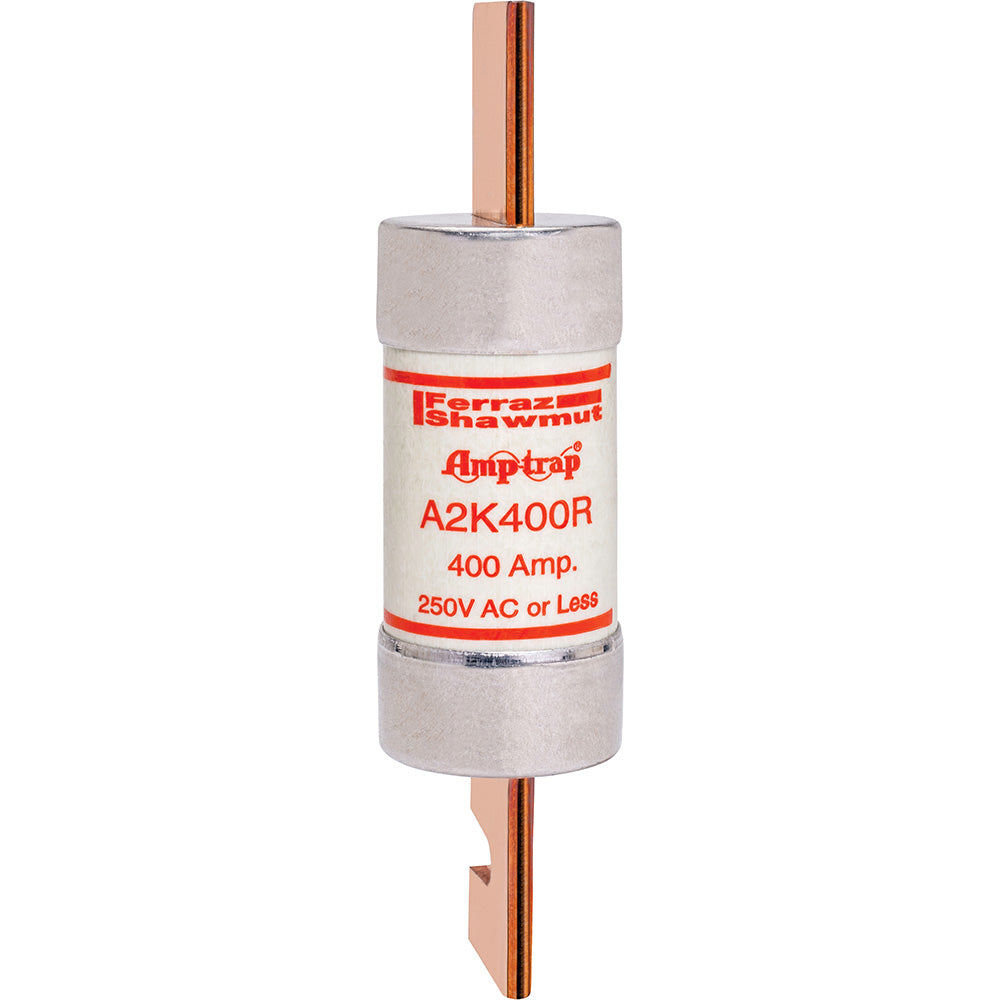

A2K400R
A2K400R is a Mersen Class RK1 fast-acting fuse rated for 400 amps and 250 volts AC/DC designed for reliable circuit protection.This fuse features a 200kA interrupting rating, tin-plated copper blade terminals for secure connections, and a compact 2.06 inch diameter by 8.625 inch length form factor. It is UL 248 and CSA certified, suitable for use in industrial and commercial electrical systems requiring Class RK1 protection.
- Amperage: 400 Amp
- Voltage Rating: 250 VAC/VDC
- Fuse Type: Class RK1, Fast-Acting
- Interrupting Rating: 200,000 Amps (200kA)
- Terminal Material: Tin-Plated Copper
- Terminal Type: Blade
- Dimensions: 2.06 in diameter x 8.625 in length
- Mounting Type: Clip
- Certifications: UL 248, CSA C22.2
- Series: A2K-R (Amp-Trap 2000)
Specifications
- Part Number: A2K400R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A2K-R Series
- Type : A2K-R
- Voltage : 250
- Amperage : 400
- AIC rating : 200kA@250V
- Diameter : 2.06
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001915360
- GTIN : 00782001915360
- Country of Origin : Mexico
- Dimensions : x 8.63 in x
- Weight : 1
