A2K35R - Mersen 35A 250V Class RK1 Fast Acting Current Limiting Fuse

A2K35R

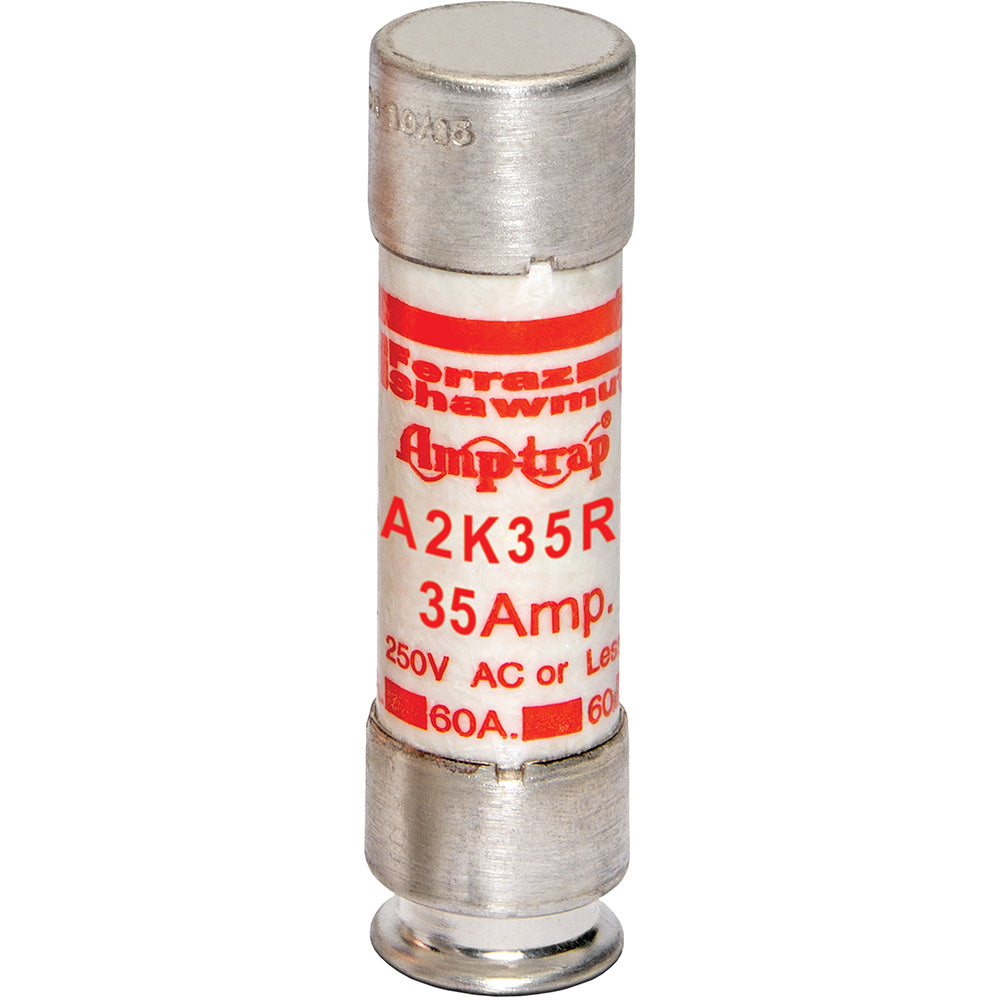

A2K35R is a Mersen 35 amp, 250 volt Class RK1 fast acting current limiting fuse designed for reliable circuit protection.This fuse features a cylindrical fiberglass body with a rejection style design to prevent replacement by other fuse classes. It is rated for 35 amps and 250 VAC/VDC with an interrupt rating of 200 kA at AC and 20 kA at DC. The fuse uses a clip mounting type and ferrule terminal connection with tin plated copper contacts. It meets UL 248-12 and CSA C22.2 No. 248.12 standards, making it suitable for load centers, panelboards, switchboards, bus ducts, feeder circuits, and lighting circuits.

Key Specifications
• Amperage: 35 A
• Voltage Rating: 250 VAC/VDC
• Fuse Class: RK1
• Interrupt Rating: 200 kA AC, 20 kA DC
• Type: Fast Acting
• Series: A2K-R
• Mounting Type: Clip
• Terminal Connection: Ferrule
• Body Material: Fiberglass
• Dimensions: 13/16 in diameter x 3 in length
• Certifications: UL 248-12, CSA C22.2 No. 248.12
• Rejection Style: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A2K35R
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : A2K-R Series
• Type : A2K-R
• Voltage : 250
• Amperage : 35
• AIC rating : 200kA@250V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 78200191512
• GTIN : 00782001915124
• Country of Origin : Mexico
• Dimensions : x 3 in x
• Weight : 5.19
