Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A2K250R

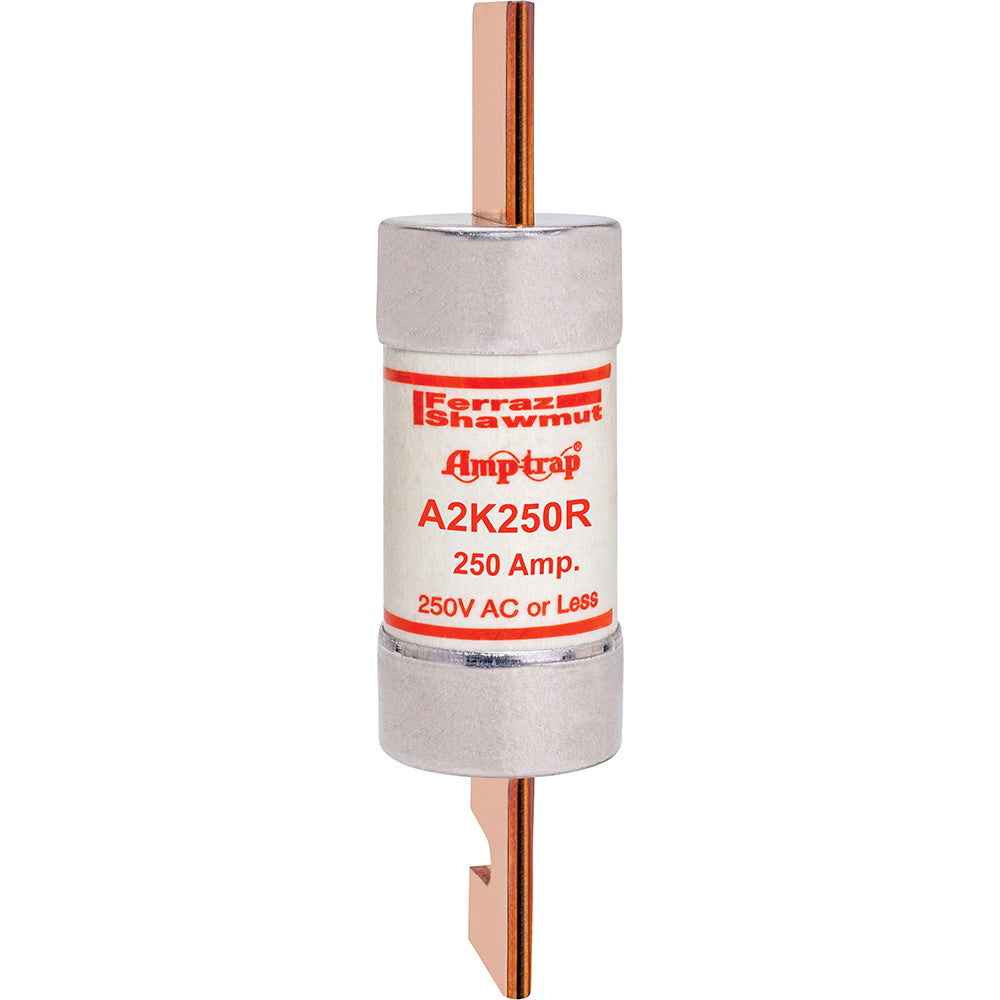

A2K250R is a Mersen Class RK1 fast-acting fuse rated for 250 amps and 250 volts AC/DC, designed for reliable overcurrent protection.This current-limiting Amp-Trap A2K-R fuse features a fiberglass body for durability and a rejection style design to prevent replacement by other fuse classes. It provides excellent protection in branch/feeder circuits, load centers, panelboards, switchboards, and bus ducts with a high interrupt rating of 200kAIC. The fuse operates at 50/60 Hz frequency and is UL and CSA certified.
- Key Specifications
- Amperage: 250 Amp
- Voltage Rating: 250 Volts AC/DC
- Fuse Class: RK1
- Speed/Characteristic: Fast-Acting
- Interrupt Rating: 200,000 AIC
- Mounting Type: Blade
- Fuse Length: 8 5/8 inches
- Diameter: 2 1/16 inches
- UL Category Code: JDDZ
- CSA File Number: Class 1422-02 Guide 012636_0
- Operating Temperature: -25°C to 80°C
- Rejection Style Design for safety
Specifications
- Part Number: A2K250R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A2K-R Series
- Type : A2K-R
- Voltage : 250
- Amperage : 250
- AIC rating : 200kA@250V
- Diameter : 2.06
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001915339
- GTIN : 00782001915339
- Weight : 1
