Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

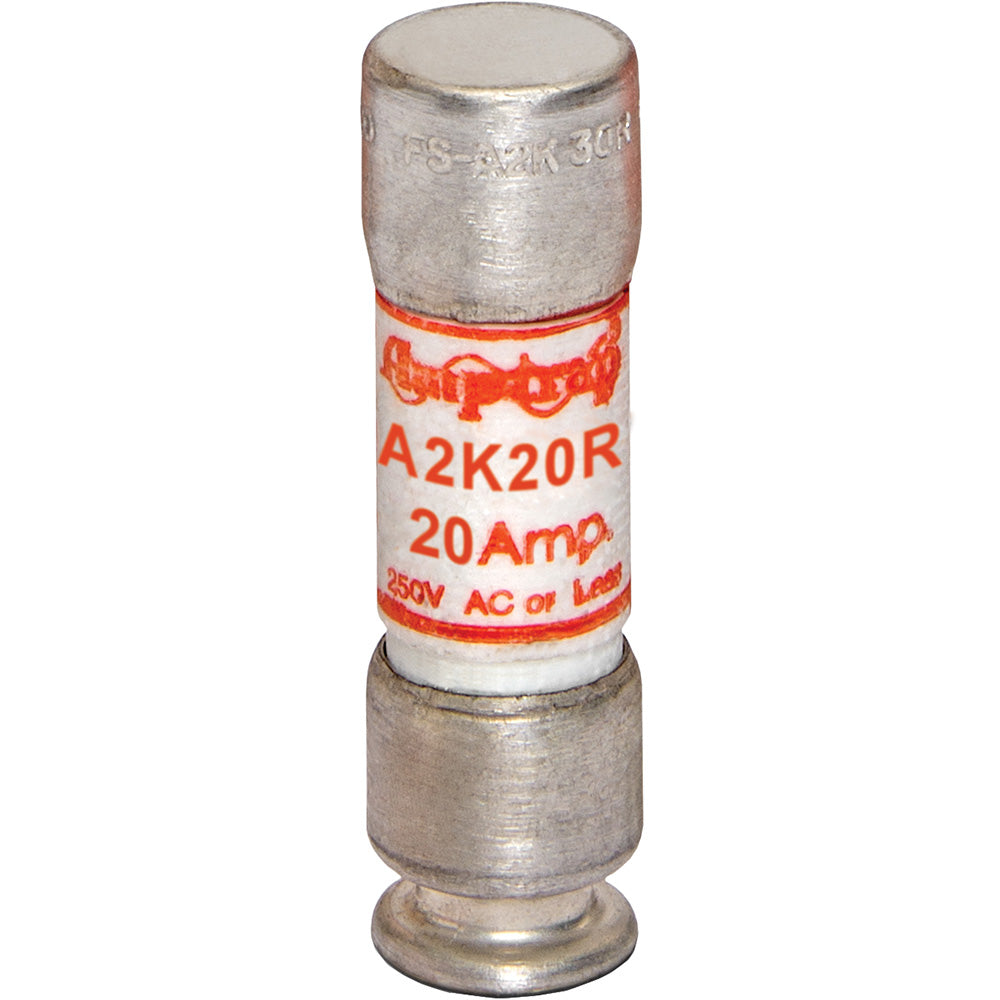

A2K20R
A2K20R is a fast-acting Class RK1 cartridge fuse designed for reliable circuit protection in industrial and commercial applications. This Mersen Amp-Trap 2000 SmartSpot fuse features a ferrule terminal and current-limiting design for enhanced safety and performance. The A2K20R fuse is rated for 20A at 250VAC and 250VDC, with a high interrupting rating of 200kA at 250VAC and 20kA at 250VDC. It features a cylindrical body style, 9/16" x 2" physical size, and is rejection style to prevent incorrect installation. The fuse is UL Class RK1 certified and suitable for use in a wide range of electrical systems requiring fast-acting protection.
- Amperage Rating: 20A
- Voltage Rating: 250VAC, 250VDC
- Fuse Type: Fast-Acting
- Interrupt Rating: 200kA at 250VAC, 20kA at 250VDC
- Body Style: Cartridge, Cylindrical
- Physical Size: 9/16" x 2"
- Terminal Type: Ferrule
- Class: RK1
- Current Limiting: Yes
- Rejection Style: Yes
- Mounting Type: In-line
- Certifications: UL Class RK1
Specifications
- Part Number: A2K20R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A2K-R Series
- Type : A2K-R
- Voltage : 250
- Amperage : 20
- AIC rating : 200kA@250V
- Diameter : 0.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001915070
- GTIN : 00782001915070
- Country of Origin : Mexico
- Dimensions : x 2 in x
- Weight : 0.05
