Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

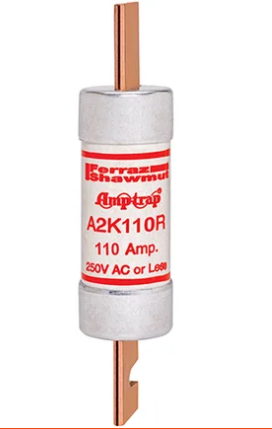

A2K110R
A2K110R is a Mersen Ferraz Shawmut Class RK1 fast-acting, current-limiting blade fuse designed for superior circuit protection in demanding electrical environments.
This fuse is engineered for applications requiring high interrupting capacity and fast response, making it ideal for load centers, panelboards, switchboards, bus duct, feeder circuits, non-inductive loads, and lighting circuits. It features a robust construction with PolyTube insulation and is certified to meet rigorous safety standards.
-
Key Specifications
- Amperage: 110A
- Voltage: 250VAC/250VDC
- Poles: Single
- Mounting Type: Clip
- Interrupt Rating: 200kA AC, 20kA DC
- Series/Frame: A2K-R (Blade Amp-Trap)
- Trip Unit: Fast-acting
- Certifications: UL Listed to Standard 248-12, CSA Certified to C22.2 No. 248.12, DC tested to UL 248 limits (Mersen Self-Certified)
- Diameter: 1-9/16 in (3.96 cm)
- Length: 7-1/8 in (18.11 cm)
- Insulation Material: PolyTube
- Application: Branch/feeder circuits, back-up protection, non-inductive loads, lighting
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A2K110R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 250
- Amperage : 110
- AIC rating : 200kA@250V
- Diameter : 2.5
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 782001915254
- GTIN : 00782002000000
- Weight : 0.95
