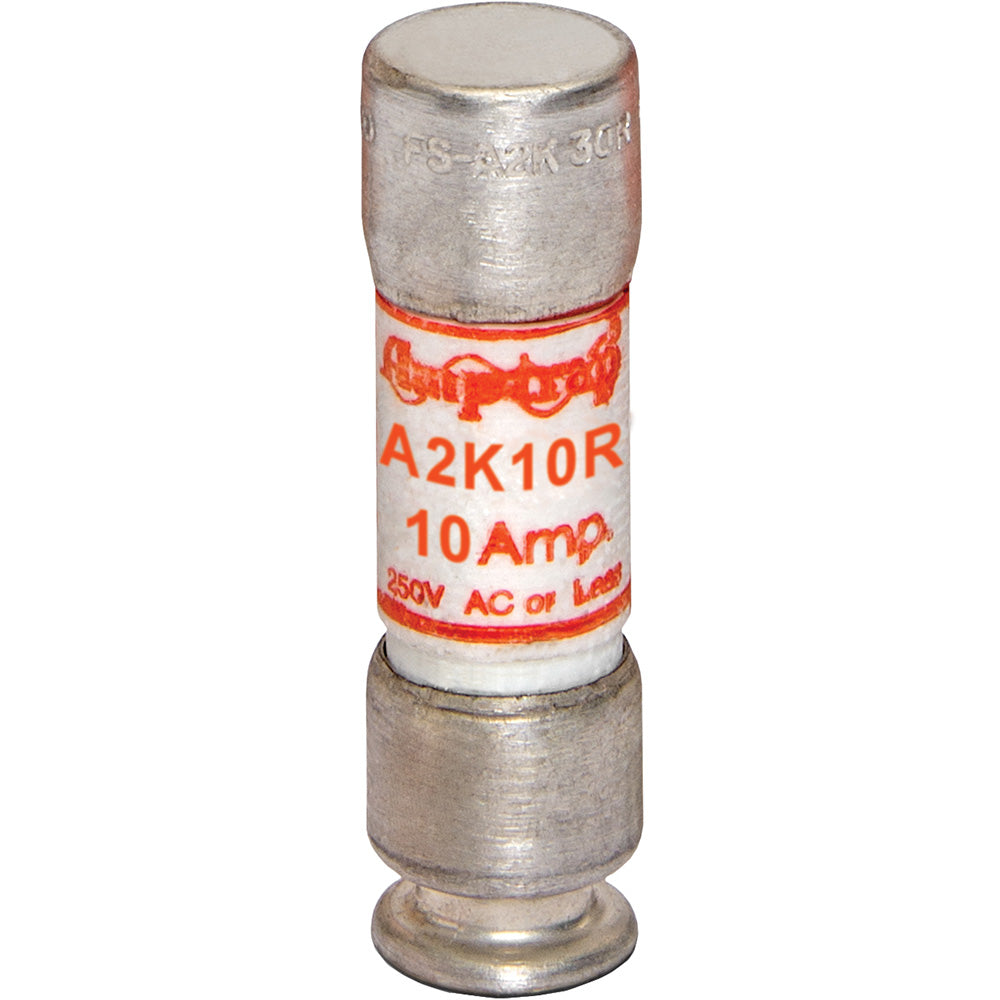

A2K10R - Mersen 10 Amp 250 Volt Class RK1 Fast Acting Fuse

A2K10R

A2K10R is a Mersen Class RK1 fast acting fuse rated for 10 amps and 250 volts AC/DC. It features a rejection style design to prevent replacement by other fuse classes.A2K10R fuses have a fiberglass body for dimensional stability in harsh industrial environments and provide current limiting protection with a 200 kiloampere interrupt rating. This 1-pole fuse measures 9/16 inch diameter by 2 inches in length and is UL 248/248-12 and CSA C22.2 certified.

Key Specifications
• Amperage: 10 A
• Voltage Rating: 250 VAC/VDC
• Fuse Class: RK1
• Fuse Type: Fast Acting
• Interrupt Rating: 200 kAIC
• Poles: 1
• Physical Size: 9/16 inch diameter x 2 inch length
• Mounting Type: Cartridge style
• Certifications: UL 248/248-12, CSA C22.2
• Rejection Style Design
• Fiberglass Body
• Current Limiting
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: A2K10R
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : A2K-R Series
• Type : A2K-R
• Voltage : 250
• Amperage : 10
• AIC rating : 200kA@250V
• Diameter : 0.56
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 078200191504
• GTIN : 00782001915049
• Country of Origin : Mexico
• Dimensions : x 2 in x
• Weight : 0.05
