Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

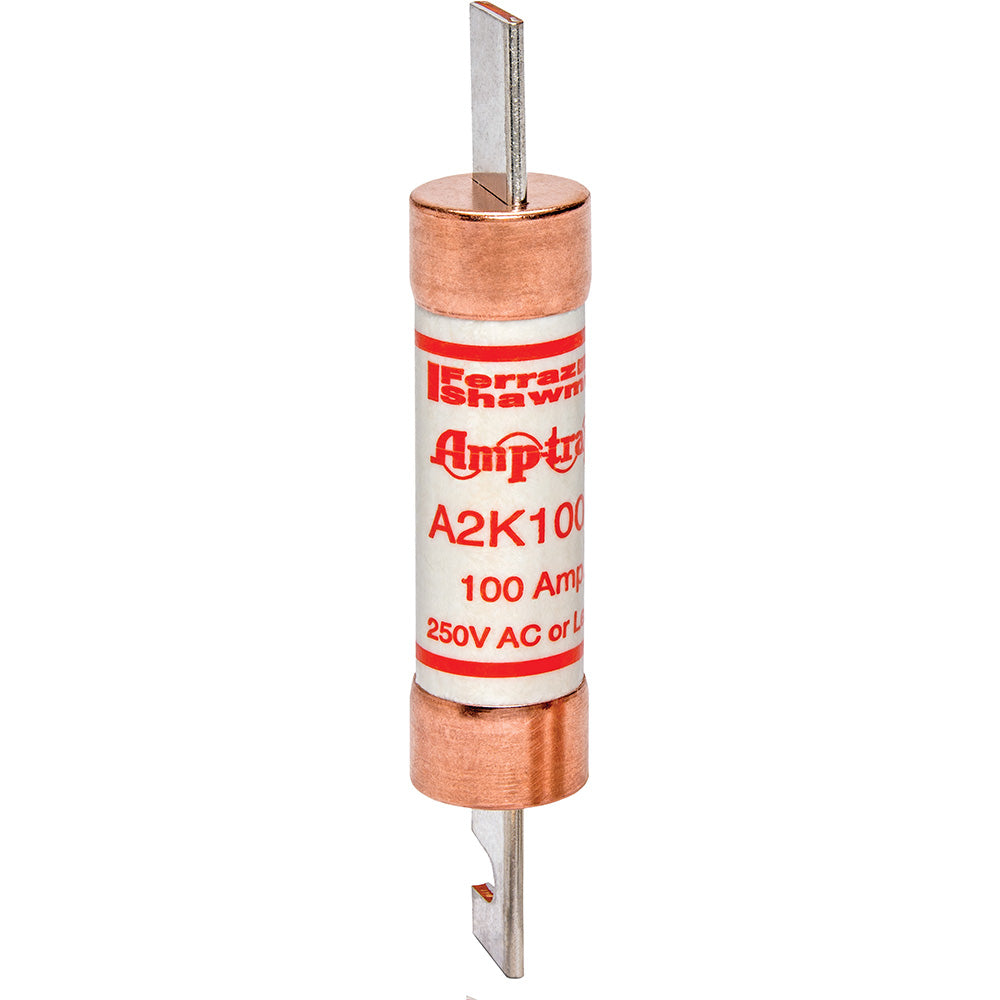

A2K100R
A2K100R is a Mersen 100 Amp, 250 Volt Class RK1 fast-acting fuse designed for reliable circuit protection.This fuse features a cylindrical PolyTube body with blade terminal connections and tin-plated copper contacts. It provides excellent current limitation and fast-acting protection for branch and feeder circuits in industrial environments. The fuse is clip-mounted and has a high interrupt rating of 200kA at 250V AC. It is UL listed, CSA certified, RoHS compliant, and designed to prevent replacement with other fuse classes through its rejection style design.
- Key Specifications
- Amperage: 100 A
- Voltage: 250 V AC/DC
- Fuse Class: RK1
- Trip Type: Fast-Acting
- Terminal Type: Blade
- Terminal Material: Tin-Plated Copper
- Mounting Type: Clip
- Interrupt Rating: 200 kA at 250 V AC
- Body Material: PolyTube
- Certifications: UL 248-12, CSA C22.2 No. 248.12, RoHS Compliant
Specifications
- Part Number: A2K100R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A2K-R Series
- Type : A2K-R
- Voltage : 250
- Amperage : 100
- AIC rating : 200kA@250V
- Diameter : 1.06
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001915223
- GTIN : 00782001915223
- Country of Origin : Mexico
- Dimensions : x 5.88 in x
- Weight : 0.38
