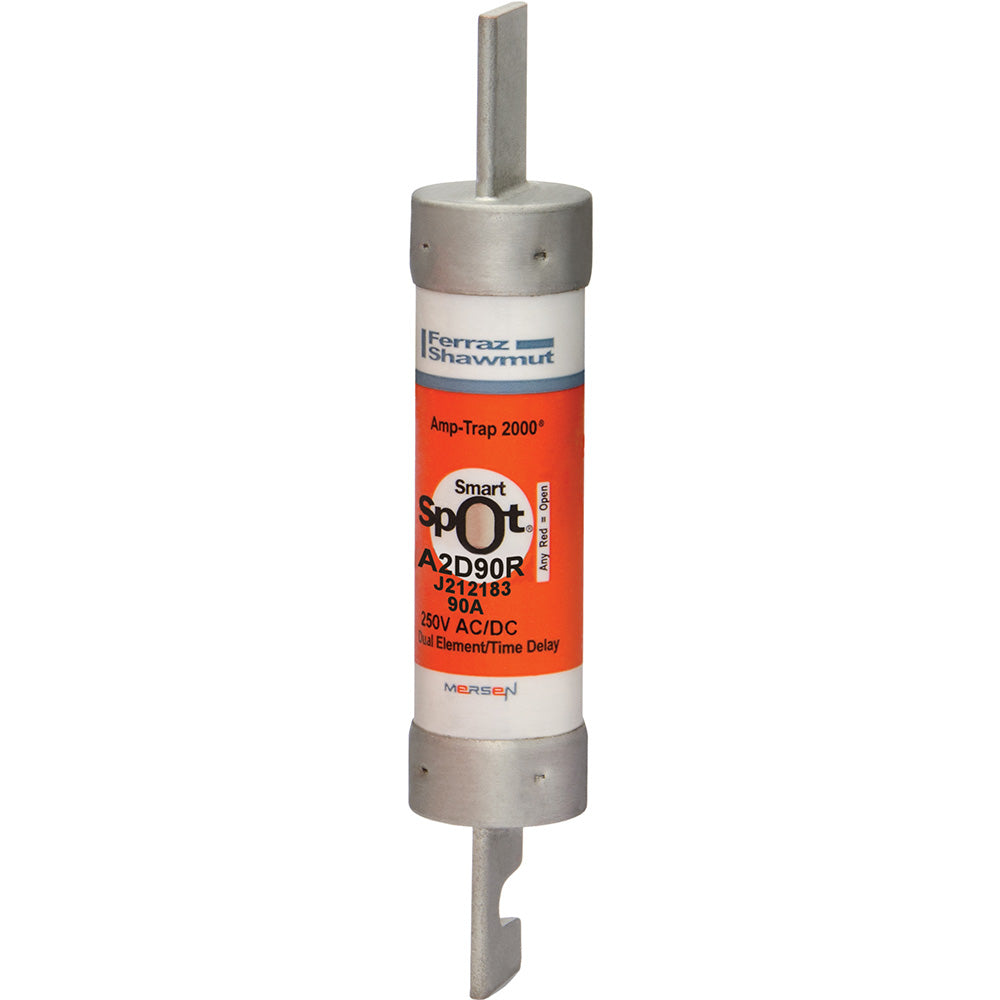

A2D90R - Mersen 90A 250V Class RK1 Time Delay Fuse Cartridge Blade

A2D90R

A2D90R is a 90 Amp, 250 Volt Class RK1 time delay fuse designed for reliable circuit protection in low voltage applications.This Mersen fuse features a cartridge blade body style with a clip mounting type. It has an interrupt rating of 200kA at 250 VAC and 100kA at 250 VDC, providing high fault current protection. The fuse is time delay type, suitable for applications requiring temporary overload tolerance. It meets UL Class RK1 standards and includes Smart Spot technology for easy visual inspection.

Key Specifications
• Amperage: 90 A
• Voltage Rating: 250 V AC/DC
• Fuse Class: RK1
• Fuse Type: Time Delay
• Interrupt Rating: 200 kA at 250 VAC, 100 kA at 250 VDC
• Mounting Type: Clip
• Body Style: Cartridge Blade
• Dimensions: Approx. 1.06 diameter x 5.88 length (inches)
• Smart Spot Visual Indicator
• UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: A2D90R
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : A2D-R
• Voltage : 250
• Amperage : 90
• AIC rating : 200kA@250V
• Diameter : 1.06
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 782001991005
• GTIN : 00782001991005
• Country of Origin : Mexico
• Dimensions : x 5-7/8 in x
• Weight : 0.31
• Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
