Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

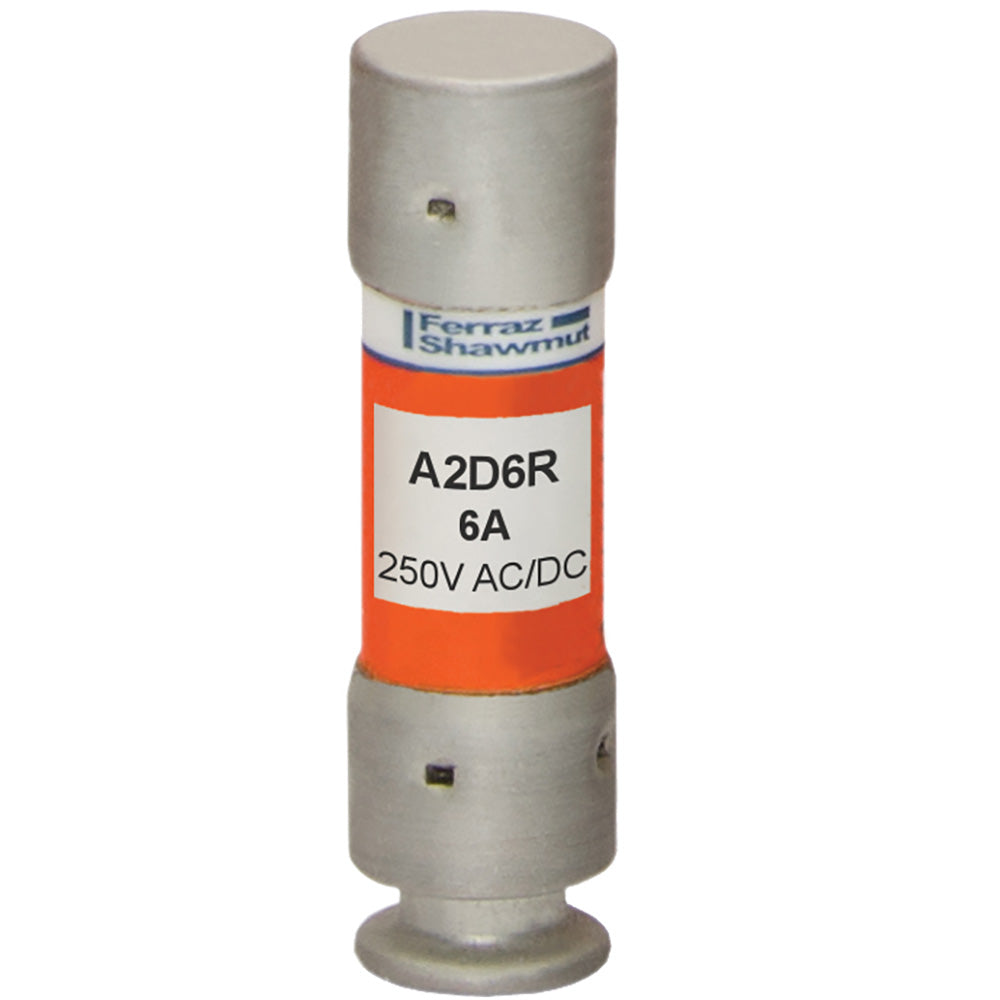

A2D6R
A2D6R is a 6 Amp, 250 Volt Class RK1 time delay fuse from Mersen designed for reliable circuit protection.This fuse features time-delay characteristics suitable for motor starting and transformer inrush currents, preventing nuisance openings. It is dual rated for 250V AC and DC, with a 200kA interrupting rating. The fuse includes a SmartSpot visual blown fuse indicator and a fiberglass body for durability in industrial environments. It meets UL 248 and CSA C22.2 standards and is recommended for arc flash mitigation and use in motors, safety switches, transformers, disconnects, and control panels.
- Key Specifications
- Amperage: 6 Amp
- Voltage Rating: 250 Volt AC/DC
- Fuse Type: Class RK1
- Response Time: Time Delay
- Interrupting Rating: 200kA AC
- Fuse Indicator: SmartSpot visual blown fuse indicator
- Body Material: Fiberglass
- Certifications: UL 248, CSA C22.2
- Physical Size: 9/16 inch diameter x 2 inch length
- Mounting Type: Recommended with fuse blocks and box connectors
Specifications
- Part Number: A2D6R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A2D-R
- Voltage : 250
- Amperage : 6
- AIC rating : 200kA@250V
- Diameter : 0.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001990756
- GTIN : 00782001990756
- Country of Origin : Mexico
- Dimensions : x 2 in x
- Weight : 0.04
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
