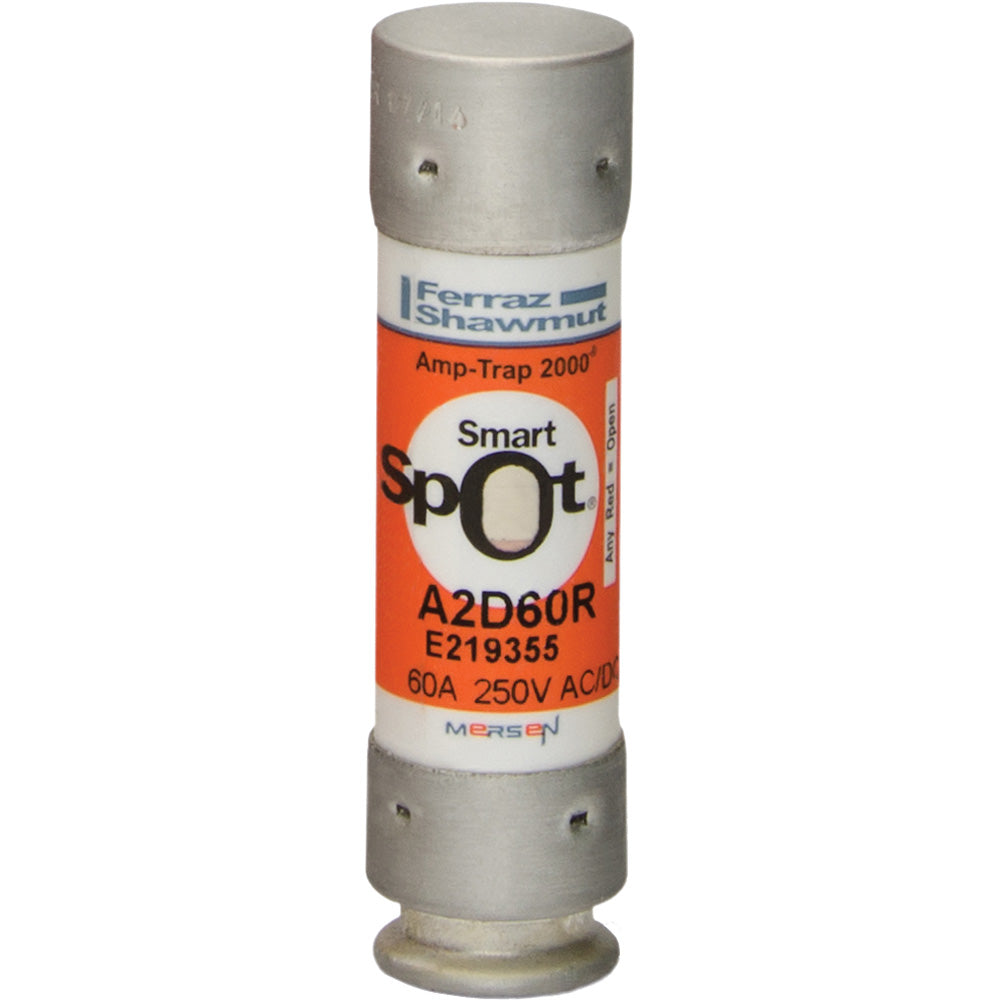

A2D60R - Mersen 60 Amp 250 Volt Class RK1 Time Delay Fuse

A2D60R

A2D60R is a 60 Amp, 250 Volt Class RK1 time delay fuse from Mersen designed for reliable circuit protection.This fuse features a time delay characteristic suitable for motor and transformer protection, with a visual open fuse indicator (Smart Spot) for easy status checking. It is rated for 250 Volts AC and DC, with ferrule TC connection and tin-plated terminals. The A2D60R provides IEC Type 2 No Damage protection and arc flash mitigating capabilities.

Key Specifications
• Amperage: 60 Amps
• Voltage Rating: 250 Volts AC/DC
• Fuse Type: UL Class RK1
• Response Time: Time Delay
• Connection Type: Ferrule TC
• Terminal Material: Tin-Plated
• Visual Indicator: Smart Spot (Open Fuse Indicator)
• Protection: IEC Type 2 No Damage, Arc Flash Mitigating
• Physical Size: 13/16" x 3"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A2D60R
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : A2D-R
• Voltage : 250
• Amperage : 60
• AIC rating : 200kA@250V
• Diameter : 1.06
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 782001990947
• GTIN : 00782001990947
• Country of Origin : Mexico
• Dimensions : x 3" x
• Weight : 5
• Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
