Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

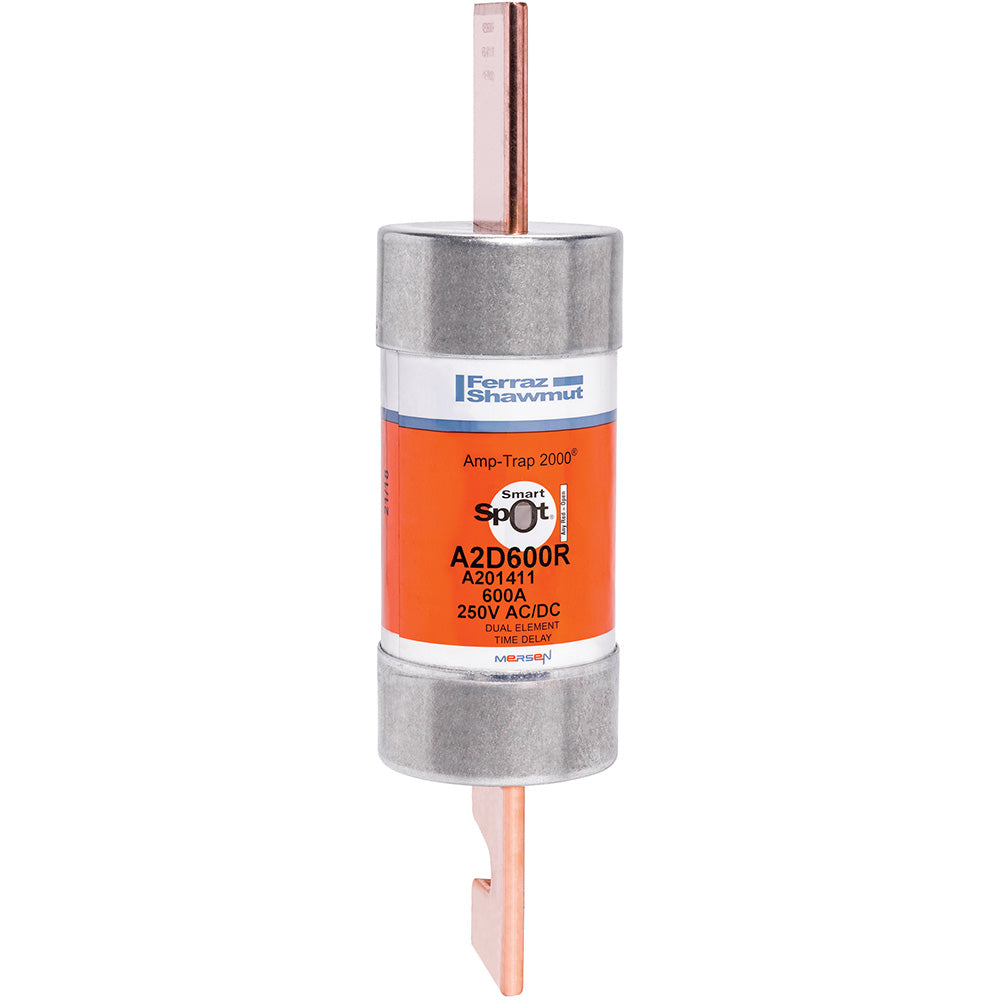

A2D600R
A2D600R is a 600 Amp, 250 Volt Class RK1 time delay fuse from Mersen designed for reliable circuit protection.This fuse features a fiberglass body for dimensional stability in harsh industrial environments and provides time-delay characteristics suitable for motor starting and transformer inrush currents. It is UL and CSA certified, dual rated for 250V AC/DC, and has a 200kA interrupting rating for AC and 100kA for DC. The A2D600R fuse includes a SmartSpot visual blown fuse indicator and is designed to reduce inventory by replacing lower-rated Class RK1 fuses without the need for fuse reducers.
- Key Specifications
- Amperage: 600 Amps
- Voltage Rating: 250 Volts AC/DC
- Fuse Type: Class RK1
- Response Time: Time Delay
- Interrupt Rating: 200kA AC, 100kA DC
- Body Material: Fiberglass
- Approvals: UL Special Purpose Listed, CSA Certified
- Visual Indicator: SmartSpot blown fuse indicator
- Dimensions: 2-9/16 Inch Diameter x 10-3/8 Inch Length
- Mounting Type: Blade Terminals
Specifications
- Part Number: A2D600R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A2D-R
- Voltage : 250
- Amperage : 600
- AIC rating : 200kA@250V
- Diameter : 2.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001991203
- GTIN : 00782001991203
- Country of Origin : Mexico
- Dimensions : x 10-3/8 in x
- Weight : 2
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
