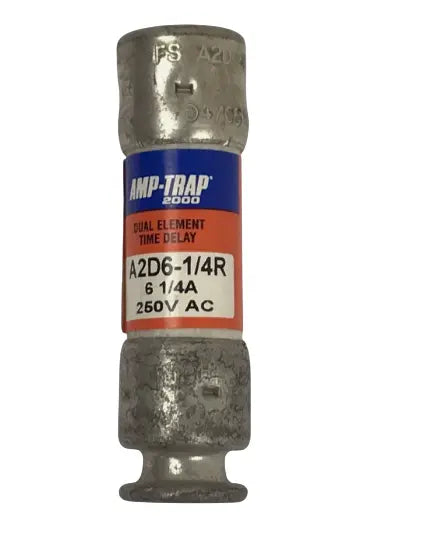

A2D6-1/4R - Mersen A2D-R Class RK1 Time-Delay Fuse 6.25A 250VAC 250VDC 200kA Interrupt Rating Amp-Trap 2000

A2D6-1/4R

A2D6-1/4R is a Class RK1 time-delay fuse designed for reliable circuit protection in motor and general-purpose applications. This Amp-Trap 2000 series fuse features a 6.25A amperage rating, 250VAC/250VDC voltage rating, and a 200kA interrupt rating for robust performance in demanding environments. The cylindrical cartridge design with ferrule terminals ensures secure mounting and compatibility with standard fuse blocks. Engineered for use in motors, safety switches, transformers, disconnects, control panels, and general-purpose circuits, the A2D6-1/4R provides fast fault clearing for short circuit protection while offering time-delay for motor in-rush currents. It can replace older 250V Class H, K, or RK5 fuses in the field.

• Part Number: A2D6-1/4R
• Manufacturer: Mersen
• Series: A2D-R, Amp-Trap 2000
• Amperage Rating: 6.25A
• Voltage Rating: 250VAC, 250VDC
• Fuse Class: Class RK1
• Interrupt Rating: 200kA @ 250VAC, 100kA @ 250VDC
• Mounting Type: Clip, Ferrule
• Body Style: Cylindrical Cartridge
• Standards: UL Listed to Standard 248-12, CSA Certified to Standard C22.2 No. 248.12
• Application: Motors, Safety Switches, Transformers, Disconnects, Control Panels, General-Purpose Circuits
• Visual Indication: Non-Indicating

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A2D6-1/4R
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : A2D-R
• Voltage : 250
• Amperage : 6
• AIC rating : 200kA@250V
• Diameter : 0.56
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 78200199076
• GTIN : 00782001990763
• Country of Origin : Mexico
• Dimensions : x 2" x
• Weight : 0.04
• Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
