Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

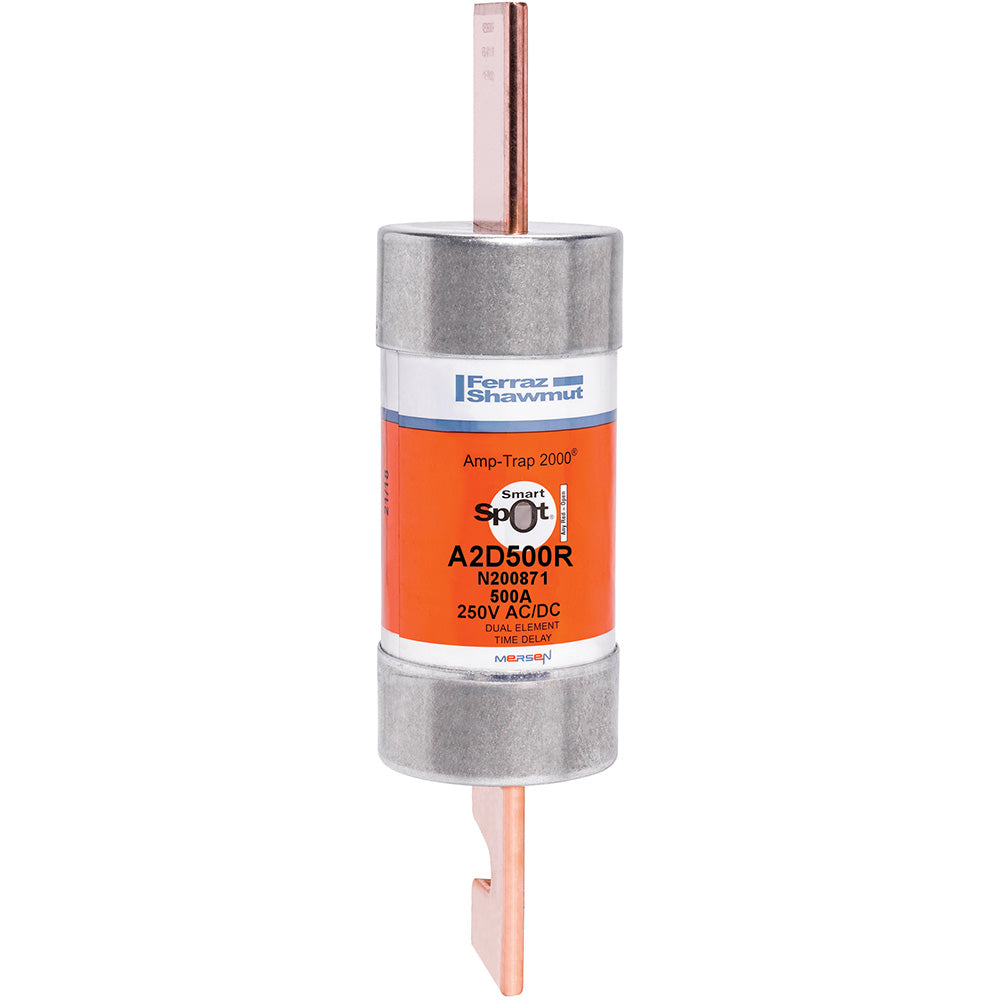

A2D500R
A2D500R is a Class RK1 time delay fuse designed for reliable circuit protection in industrial and commercial applications. This cartridge blade fuse features a visible open indicator (SmartSpot) for easy status monitoring and is suitable for both AC and DC systems.Engineered for high performance, the A2D500R offers robust protection with a 500A current rating and a 250V AC/DC voltage rating. Its time delay characteristic allows for temporary current surges without nuisance tripping, making it ideal for motor circuits and other demanding environments. The fuse is designed for use in standard holders and provides a clear visual indication when blown.
- 500A current rating
- 250V AC/DC voltage rating
- Class RK1 fuse type
- Time delay operation
- SmartSpot visible open indicator
- Cartridge blade body style
- 200kA interrupt rating at 250V AC
- 100kA interrupt rating at 250V DC
- UL 248/248-12 listed
- CSA C22.2 approved
- Mounts in standard fuse holders
- Physical size: 2 9/16" x 10 3/8"
Specifications
- Part Number: A2D500R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A2D-R
- Voltage : 250
- Amperage : 500
- AIC rating : 200kA@250V
- Diameter : 2.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001991197
- GTIN : 00782001991197
- Weight : 2
