Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A2D40R

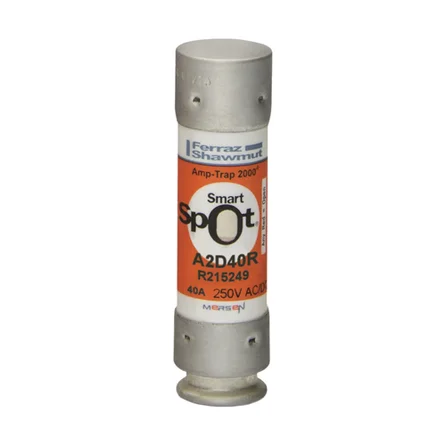

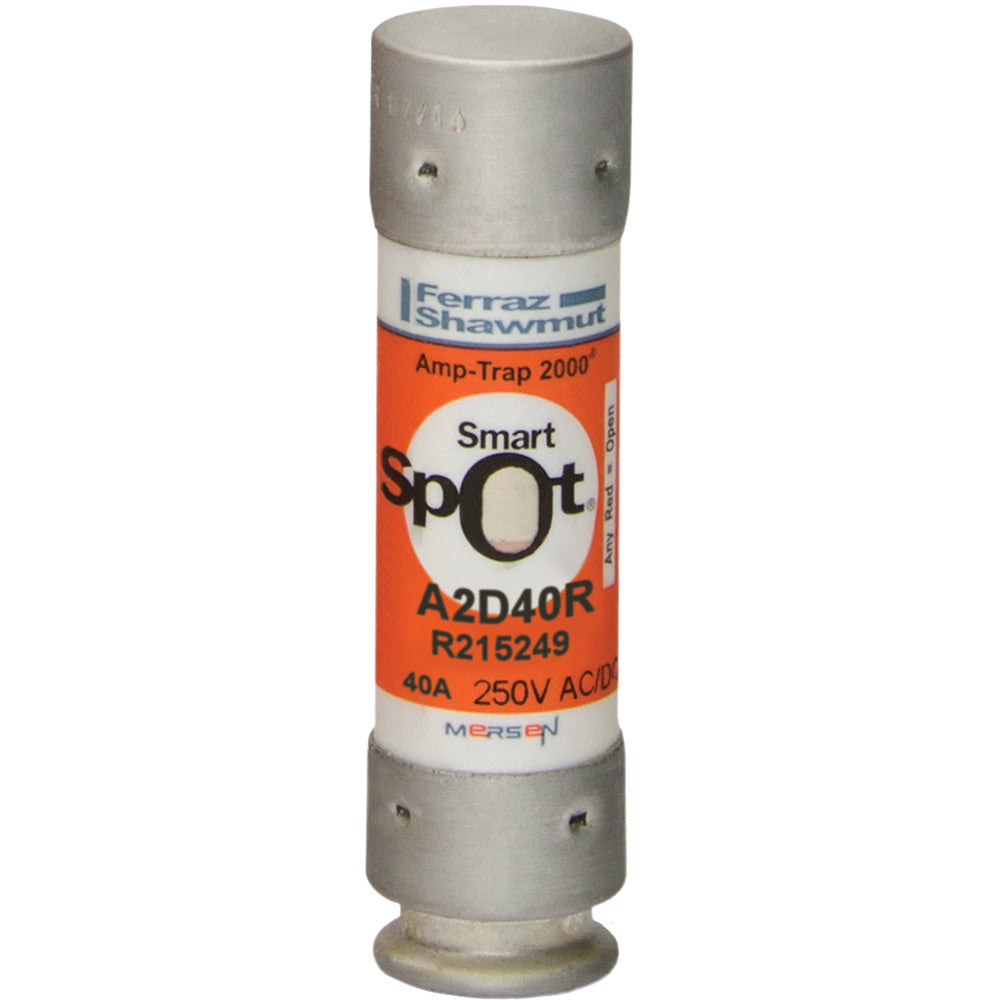

A2D40R is a Mersen 40 Amp 250 Volt Class RK1 time delay fuse designed for reliable circuit protection.This fuse features a time-delay response ideal for motor starting and transformer inrush currents, minimizing nuisance openings. It has a 13/16" x 3" fiberglass body with a high interrupt rating of 200kA to ensure safety and durability in industrial applications. The fuse is UL and CSA certified, dual rated for AC and DC at 250 volts, and includes a rejection-style design to prevent replacement errors.
- Amperage: 40 Amp
- Voltage Rating: 250 Volt AC/DC
- Fuse Type: Class RK1
- Response Time: Time Delay
- Interrupt Rating: 200kA
- Fuse Size: 13/16" x 3"
- Mounting Type: Clip
- Certifications: UL 248/248-12, CSA C22.2
- Body Material: Fiberglass
- Rejection-style design for error prevention
- Arc Flash Mitigating
Specifications
- Part Number: A2D40R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A2D-R
- Voltage : 250
- Amperage : 40
- AIC rating : 200kA@250V
- Diameter : 0.81
- Class Rating : Rk1
- Barrels : 1
Product Data
- UPC : 782001990916
- GTIN : 00782001990916
- Country of Origin : Mexico
- Dimensions : x 3" x
- Weight : 0.14
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
