Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A2D350R

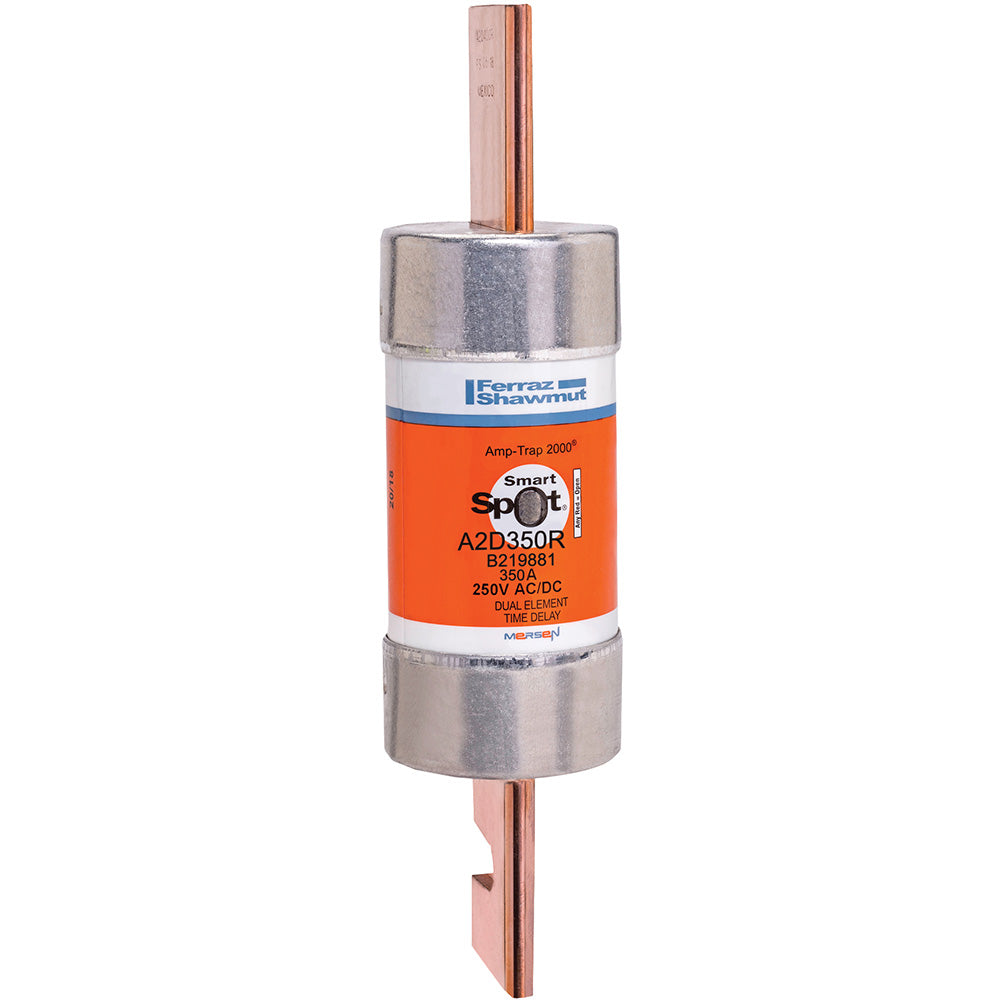

A2D350R is a Mersen Ferraz Shawmut Amp-Trap 2000 Class RK1 time-delay fuse rated for 350A and 250V AC/DC applications. This fuse features a blade terminal and is designed for reliable circuit protection in industrial and commercial power distribution systems. The A2D350R fuse is part of the Amp-Trap 2000 series, offering current-limiting performance and SmartSpot® technology for visual indication of fuse status. It is suitable for mains, feeders, and branch circuits, providing protection for both motor and non-motor loads.
- Amperage: 350A
- Voltage Rating: 250V AC/DC
- Class: RK1
- Time-Delay: Yes
- Interrupt Rating: 200kA @ 250V AC
- Series: Amp-Trap 2000
- Mounting Type: Blade Terminal
- Physical Size: 2 1/16" x 8 5/8"
- UL Class: RK1
- Approvals: UL 248/248-12, CSA C22.2
- SmartSpot® Indicator: Yes
- Current Limiting: Yes
Specifications
- Part Number: A2D350R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A2D-R
- Voltage : 250
- Amperage : 350
- AIC rating : 200kA@250V
- Diameter : 2.06
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001991142
- GTIN : 00782001991142
- Weight : 1
