Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A2D3-2/10R

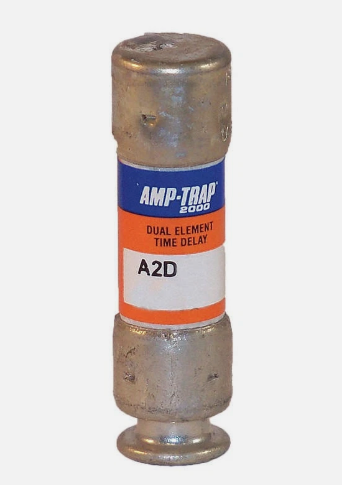

A2D3-2/10R is a Mersen Ferraz Shawmut Class RK1 time delay fuse rated at 3.2 amps and 250 volts AC/DC.This fuse features a 9/16" x 2" polyester body designed for branch circuit and mains protection with a 200kA interrupting rating. It is a time-delay fuse suitable for motor starting and transformer inrush currents, providing arc flash mitigation and low peak let-thru current. The fuse has a rejection-style design to prevent replacement errors and includes a high-visibility orange label for easy identification.
- Key Specifications
- Amperage: 3.2 Amp
- Voltage Rating: 250 V AC/DC
- Fuse Class: RK1
- Fuse Size: 9/16" x 2"
- Interrupt Rating: 200kA AC
- Fuse Type: Time Delay
- Body Material: Polyester
- Mounting: Compatible with 2HKRFB fuse blocks
- Certifications: UL 248/248-12, CSA C22.2
- Features: Arc flash mitigation, rejection-style design, SmartSpot visual blown fuse indicator
- Part Number: A2D3-2/10R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A2D-R
- Voltage : 250
- Amperage : 3
- AIC rating : 200kA@250V
- Diameter : 0.56
- Class Rating : RK1
- Barrels : 1
- UPC : 78200199069
- GTIN : 00782001990695
- Country of Origin : Mexico
- Dimensions : x 2" x
- Weight : 0.04
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
