A2D25R - Eaton 25A 250V AC Class RK1 Time Delay Fuse Clip Mount

A2D25R

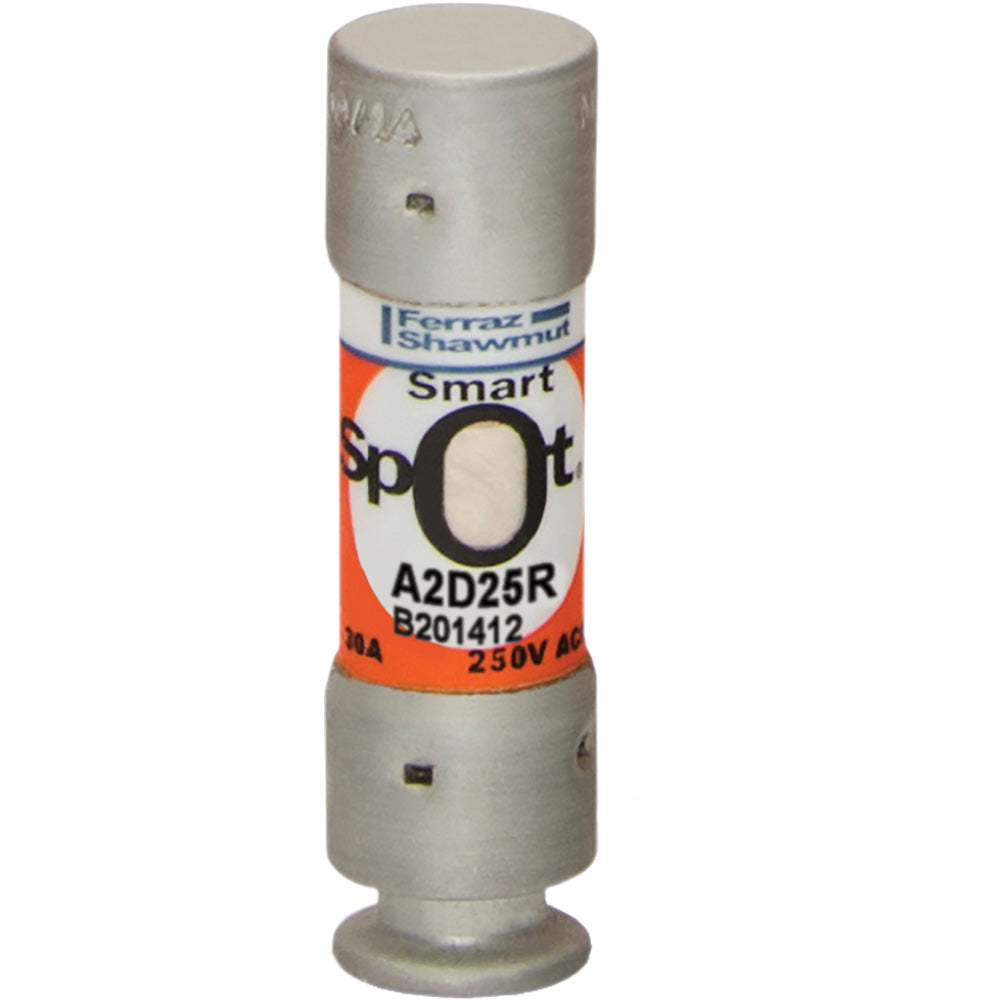

A2D25R is a 25 amp, 250 volt AC time delay fuse from Eaton, designed for clip mounting in low voltage applications.This Eaton A2D25R fuse features Class RK1 current limiting characteristics with a time delay speed, suitable for protecting mains, feeders, and branch circuits. It has a 200 kA interrupt rating at 250V AC and 100 kA at 250V DC, with a cartridge body measuring 2 inches long by 9/16 inch diameter. The fuse includes a SmartSpot indicator for easy status identification and requires a fuse holder for mounting.

Key Specifications
• Amperage: 25A
• Voltage Rating: 250V AC / 250V DC
• Fuse Class: RK1
• Speed Type: Time Delay
• Interrupt Rating: 200 kA AC, 100 kA DC
• Mounting Type: Clip mount (requires holder)
• Body Style: Cartridge
• Dimensions: 2" length x 9/16" diameter
• Indication System: SmartSpot indicator included
• Frequency: 50/60 Hz
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: A2D25R
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : A2D-R
• Voltage : 250
• Amperage : 25
• AIC rating : 200kA@250V
• Diameter : 0.56
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 782001990855
• GTIN : 00782001990855
• Country of Origin : Mexico
• Dimensions : x 2 in x
• Weight : 0.04
• Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
