Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A2D250R

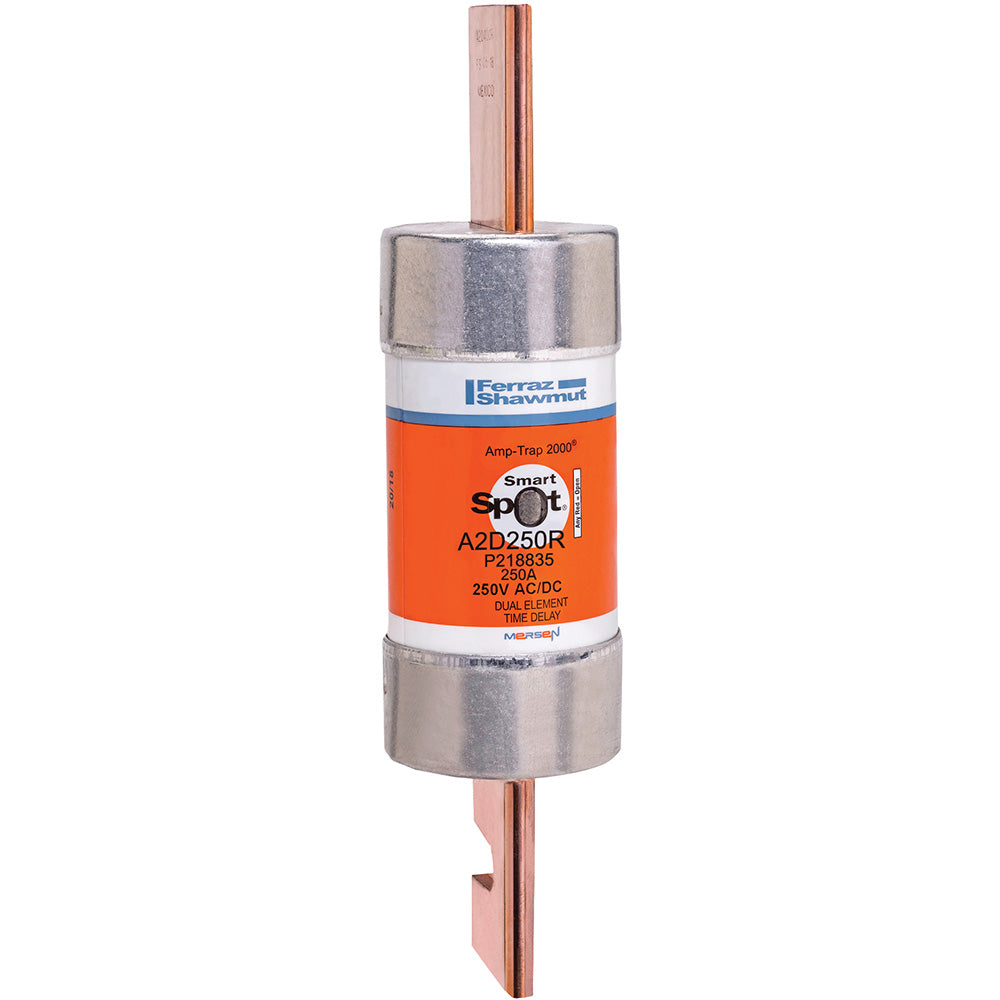

A2D250R is a Ferraz Shawmut Mersen 250A 250V Class RK1 time delay fuse designed for low voltage applications.This Amp-Trap 2000 fuse features a single barrel design with a diameter of 2.06 inches and a length of 8.63 inches. It provides a visible open indicator called SmartSpot for easy fuse status verification. Rated for 250 volts AC/DC, it has an interrupting rating of 200kA AC and 100kA DC. The fuse is UL 248-12 and CSA C22.2 certified, ensuring compliance with industry safety standards.
- Key Specifications
- Amperage: 250A
- Voltage: 250V AC/DC
- Fuse Class: RK1
- Speed/Characteristic: Time Delay
- Poles: 1
- Diameter: 2.06 inches
- Length: 8.63 inches
- Interrupting Rating: 200kA AC, 100kA DC
- Visible Open Indicator: SmartSpot
- Certifications: UL 248-12, CSA C22.2
- Series: Amp-Trap 2000
- RoHS Compliant: Yes
- Part Number: A2D250R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A2D-R
- Voltage : 250
- Amperage : 250
- AIC rating : 200kA@250V
- Diameter : 2.06
- Class Rating : RK1
- Barrels : 1
- UPC : 782001991128
- GTIN : 00782001991128
- Weight : 1
