Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

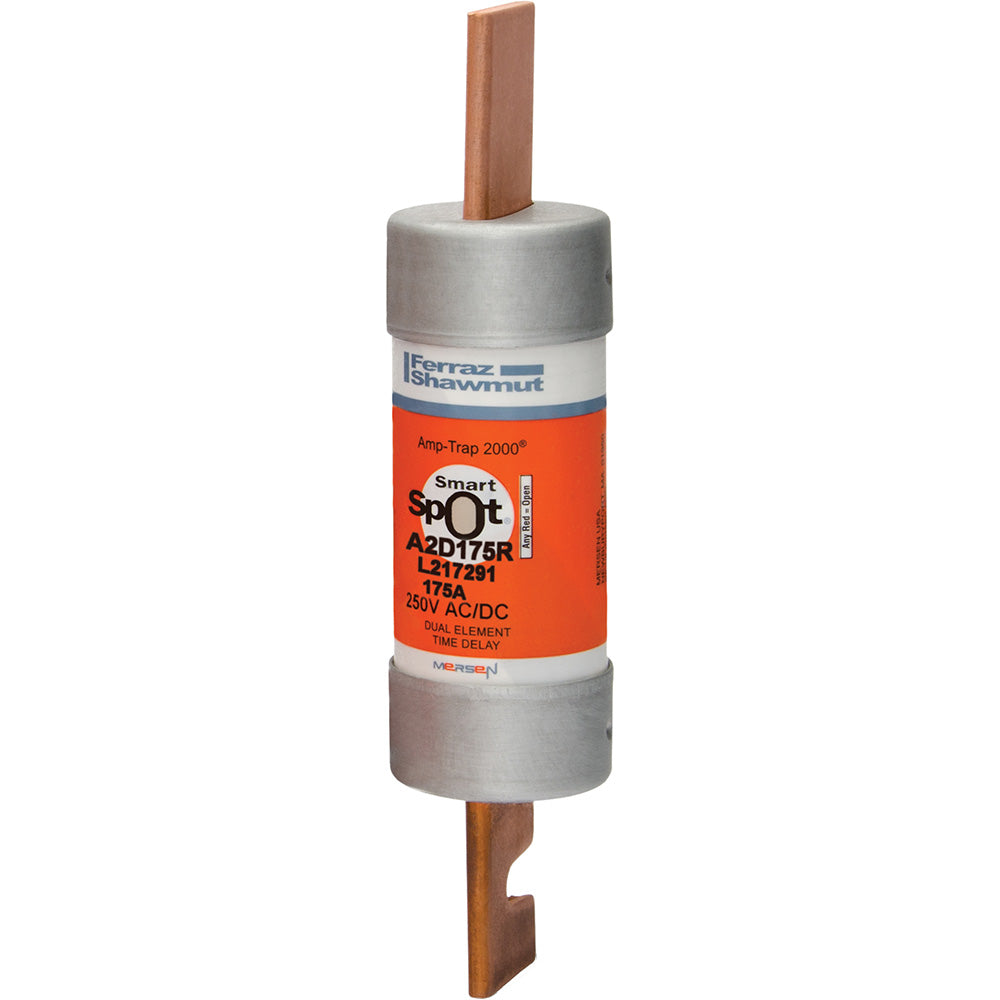

A2D175R
A2D175R is a Mersen time delay fuse designed for low voltage applications with a 175 amp rating and 250 volt capacity.This Class RK1 fuse features a time delay characteristic and current limiting capability, suitable for protecting electrical circuits with a high interrupt rating of 200kA at 250 VAC and 100kA at 250 VDC. It has a compact cartridge blade body style with physical dimensions approximately 1 9/16" diameter by 7 1/8" length, making it easy to install in various fuse holders.
- Key Specifications
- Amperage: 175 Amps
- Voltage Rating: 250 Volts AC/DC
- Fuse Type: Time Delay
- Class: RK1
- Interrupt Rating: 200kA at 250 VAC, 100kA at 250 VDC
- Body Style: Cartridge Blade
- Physical Size: 1 9/16" diameter x 7 1/8" length
- Current Limiting: Yes
- Series: Amp-Trap 2000
- Certifications: UL Listed
- Part Number: A2D175R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A2D-R
- Voltage : 250
- Amperage : 175
- AIC rating : 200kA@250V
- Diameter : 1.56
- Class Rating : RK1
- Barrels : 1
- UPC : 782001991074
- GTIN : 00782001991074
- Weight : 0.94
