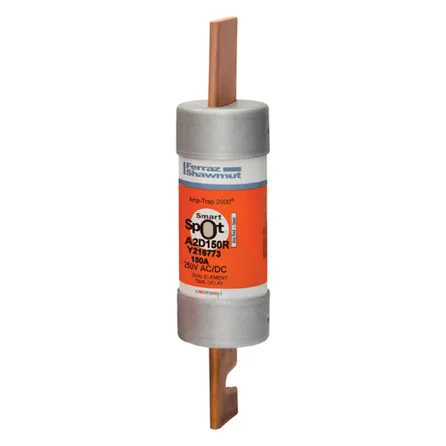

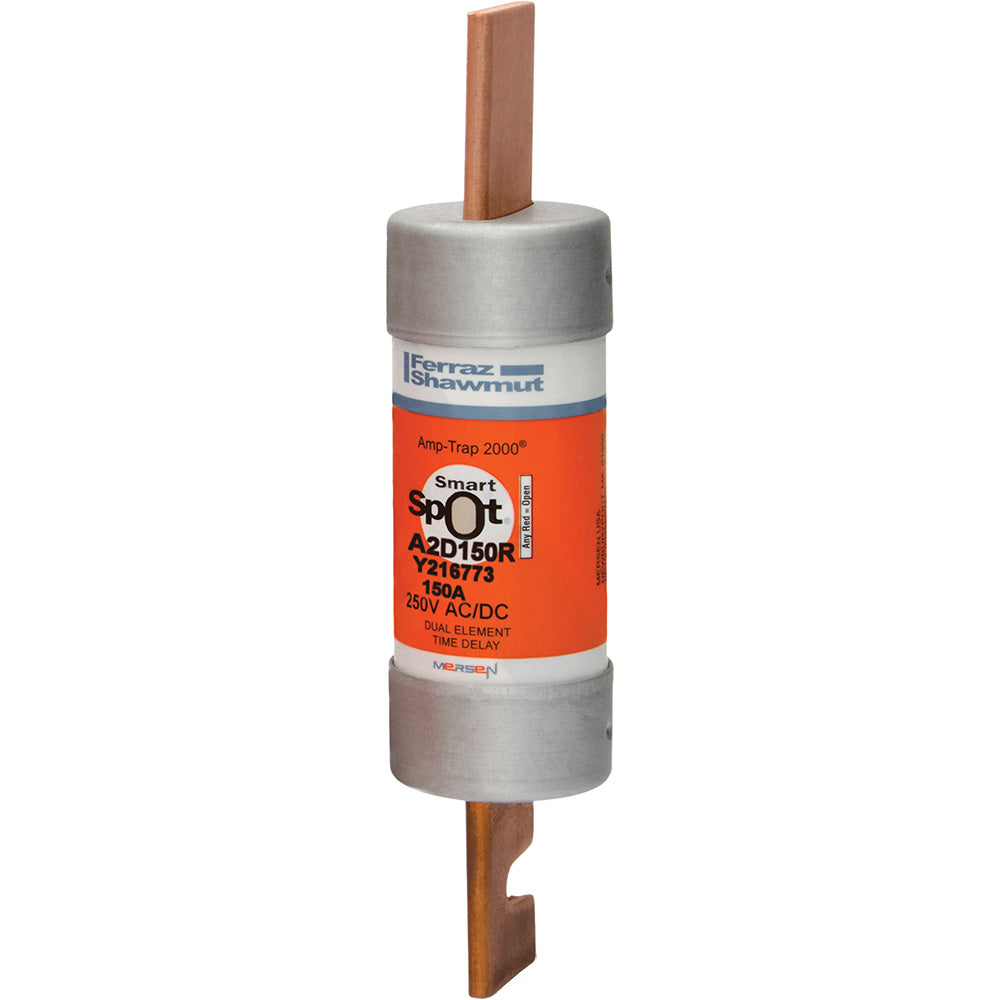

A2D150R - Mersen 150A 250V Class RK1 Time Delay Fuse, Amp-Trap 2000 Series

A2D150R

A2D150R is a 150 Amp, 250 Volt AC/DC Class RK1 time delay fuse from Mersen's Amp-Trap 2000 series designed for reliable circuit protection.This fuse features a time-delay characteristic with Smart-Spot indicator for easy status identification. It has a fiberglass body with plated terminals, measuring 1 9/16" diameter by 7 1/8" length. Rated for 250V AC and DC operation, it provides an interrupting rating of 200,000 AIC AC and 100,000 AIC DC. The A2D150R is UL listed to standard 248-12, DC listed to UL 248, and CSA certified to C22.2 No. 248.12, ensuring compliance with safety standards.

Key Specifications
• Amperage: 150 Amps
• Voltage Rating: 250V AC/DC
• Fuse Class: RK1
• Time Delay: Yes
• Interrupting Rating: 200,000 AIC AC / 100,000 AIC DC
• Body Material: Fiberglass
• Dimensions: 1 9/16" diameter x 7 1/8" length
• Smart-Spot Indicator: Yes
• Certifications: UL 248-12, UL 248 (DC), CSA C22.2 No. 248.12
• Series: Amp-Trap 2000
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: A2D150R
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : A2D-R
• Voltage : 250
• Amperage : 150
• AIC rating : 200kA@250V
• Diameter : 1.56
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 782001991067
• GTIN : 00782001991067
• Country of Origin : Mexico
• Dimensions : x 7.13 in x
• Weight : 0.94
• Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
