Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A2D125R

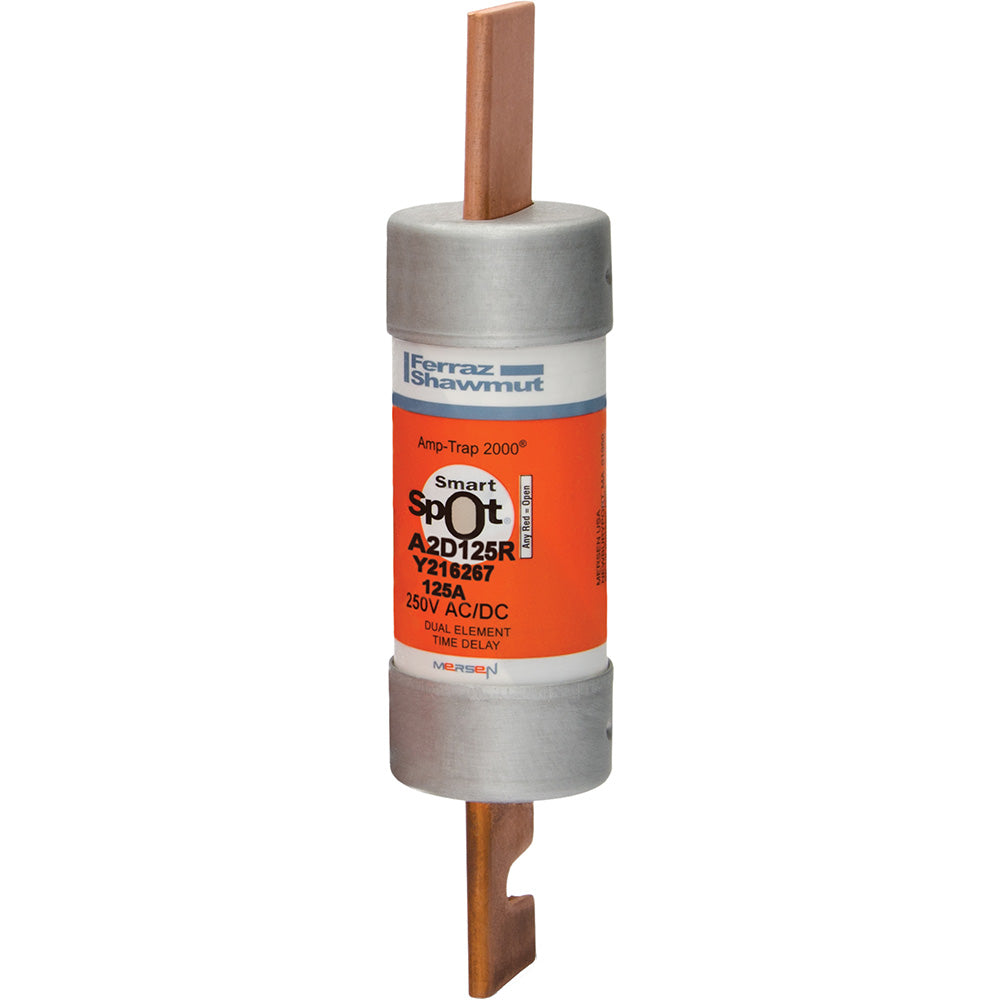

A2D125R is a 125 Amp, 250 Volt AC/DC Class RK1 time-delay fuse from Mersen Ferraz Shawmut featuring SmartSpot visual blown fuse indication.
This fuse offers a 200,000 A interrupting rating at 250 VAC and 100,000 A at 250 VDC, with a fiberglass body and tin-plated copper blade terminals. It is UL listed to standard 248-12 and CSA certified to C22.2 No. 248.12, designed for arc flash mitigation and reliable protection in industrial applications. The fuse measures approximately 1.56 inches in diameter and 7.13 inches in length, mounting via blade clips for easy installation.
- Key Specifications
- Amperage: 125 A
- Voltage Rating: 250 V AC/DC
- Fuse Class: RK1
- Time Delay characteristic
- Interrupting Rating: 200 kA AC, 100 kA DC
- Mounting Type: Blade clip
- Body Material: Fiberglass
- Terminal Material: Tin-plated copper
- SmartSpot visual blown fuse indicator
- UL Listed (UL 248-12) and CSA Certified
- Arc Flash Mitigating design
- Dimensions: 1.56" diameter x 7.13" length
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A2D125R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A2D-R
- Voltage : 250
- Amperage : 125
- AIC rating : 200kA@250V
- Diameter : 1.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001991050
- GTIN : 00782001991050
- Weight : 0.94
