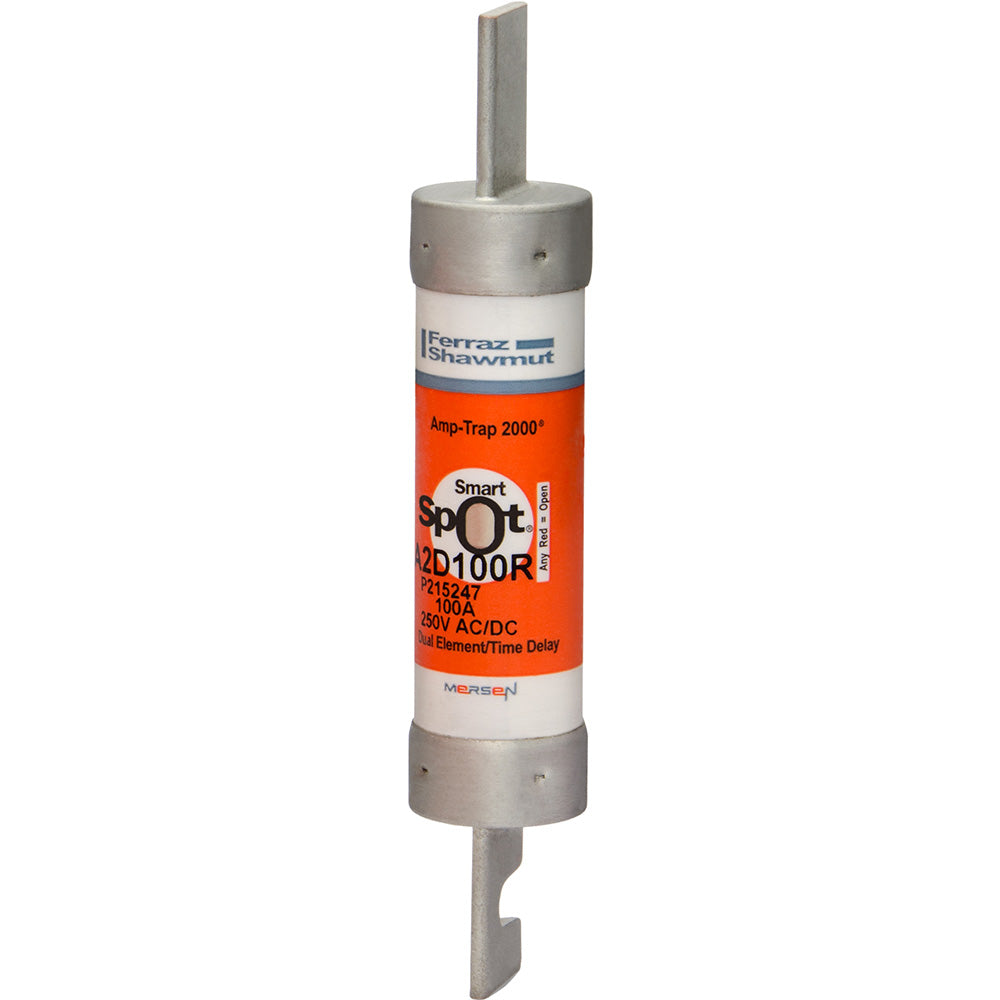

A2D100R - Mersen 100A 250V Class RK1 Time Delay Fuse with SmartSpot Indicator

A2D100R

A2D100R is a 100 Amp, 250 Volt Class RK1 time delay fuse from Mersen featuring the SmartSpot visual blown fuse indicator.This fuse provides IEC Type 2 no damage protection for mains, feeders, and branch circuits with time-delay characteristics to handle harmless inrush currents. It is rated for both AC and DC at 250 volts with a 200kA interrupt rating. The blade terminal with tin-plated copper ensures reliable connection, and the fuse body is made of durable PolyTube material. It is ROHS compliant and designed for clip mounting.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 250 V AC/DC
• Fuse Class: RK1
• Speed/Characteristic: Time Delay
• Interrupt Rating: 200 kA
• Mounting Type: Clip
• Terminal Type: Blade
• Terminal Material: Tin-Plated Copper
• Indication System: SmartSpot visual blown fuse indicator
• Body Material: PolyTube
• ROHS Compliant: Yes
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A2D100R
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : A2D-R
• Voltage : 250
• Amperage : 100
• AIC rating : 200kA@250V
• Diameter : 1.56
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 782001991012
• GTIN : 00782001991012
• Country of Origin : Mexico
• Dimensions : x 5-7/8 in x
• Weight : 5
• Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
