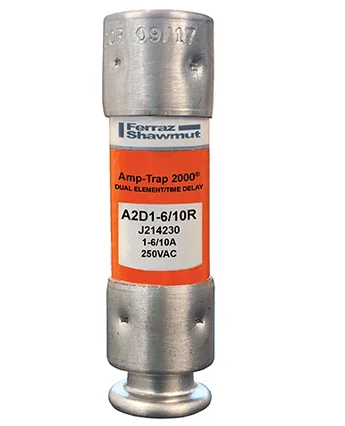

A2D1-6/10R - Mersen Class RK1 Time-Delay Fuse 250V 1.6A

A2D1-6/10R

A2D1-6/10R is a Mersen Amp-Trap 2000 time-delay fuse designed for motor and non-motor load protection in mains, feeders, and branch circuits.

This Class RK1 fuse delivers IEC Type 2 no-damage protection with fast opening under extreme fault conditions to prevent damage to motor starters, switches, and circuit components. The time-delay characteristic accommodates motor in-rush and transformer inrush currents without nuisance tripping. Rated 250V AC and 250V DC with a 200kA interrupt rating at 250V AC and 100kA at 250V DC, the A2D1-6/10R features a ferrule terminal design and includes SmartSpot visual blown fuse indication. This fuse can replace older 250V Class H, K, or RK5 fuses in existing installations.

• Amperage Rating: 1.6 A
• Voltage Rating: 250V AC / 250V DC
• Fuse Class: Class RK1
• Speed Characteristic: Time Delay
• Interrupt Rating: 200kA at 250V AC; 100kA at 250V DC
• Physical Size: 2 in L x 9/16 in dia
• Terminal Type: Ferrule
• Frequency: 50/60 Hz
• Flammability Rating: 94 V-0
• RoHS Compliant: Yes
• UL Category Code: JDDZ

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A2D1-6/10R
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : A2D-R
• Voltage : 250
• Amperage : 1
• AIC rating : 200kA@250V
• Diameter : 0.56
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 78200199063
• GTIN : 00782001990633
• Country of Origin : Mexico
• Dimensions : x 2" x
• Weight : 5.19
• Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
