Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage
Description
A25X600

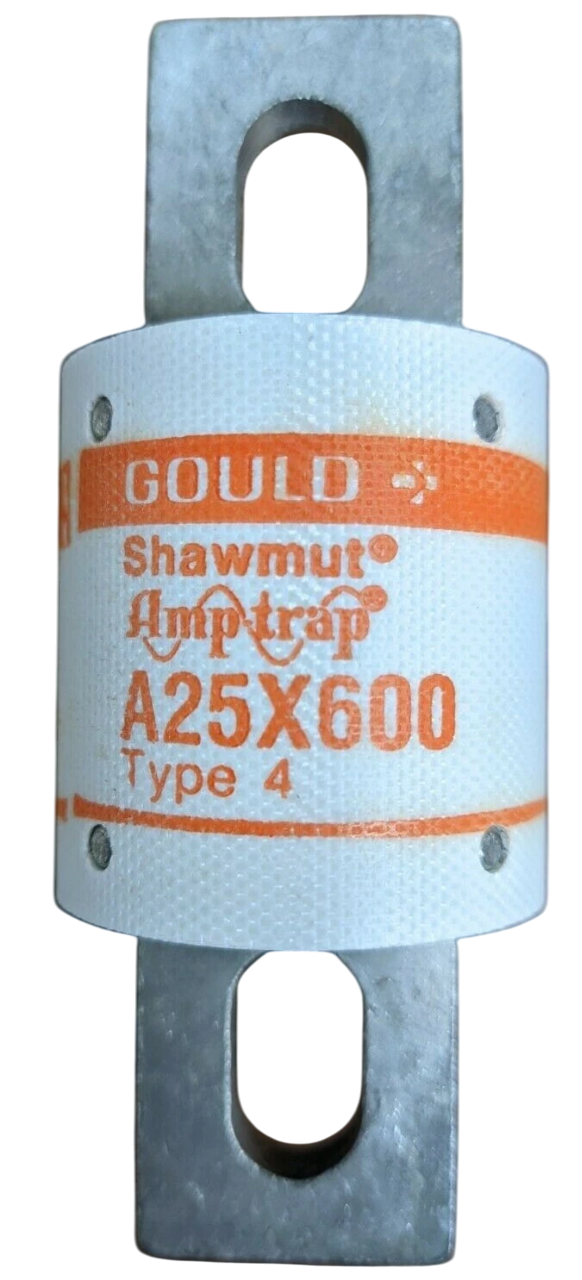

A25X600-4 is a Mersen semiconductor fuse designed for protecting power semiconductors such as diodes and SCRs in heavy-duty rectifier and power supply applications.
This fast-acting, current limiting fuse features a 600 ampere rating and 250 VAC voltage rating with a 10.6 kiloampere interrupting capacity. It has a round body measuring 1.5 inches in diameter by 3.84 inches in length, with blade terminals and bolt mounting for secure installation. The fuse minimizes damage to protected components by limiting I2T and controlling arc voltage during fault clearing. It is UL approved and RoHS compliant, suitable for North American round style fuse holders.
- Key Specifications
- Amperage Rating: 600 A
- Voltage Rating: 250 VAC
- Interrupt Rating: 10.6 kA
- Series: A25X
- Type: Current Limiting, Fast Acting Semiconductor Fuse
- Terminal Type: Blade
- Mounting Type: Bolt
- Body Size: 1.5 in Diameter x 3.84 in Length
- Certifications: UL Approved, RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A25X600
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Amp-Trap
- Type : A25X
- Voltage : 250
- Amperage : 600
- AIC rating : 10.6kA@250V
- Diameter : 1.5
- Class Rating : Semiconductor
- Barrels : 1
Product Data
- Weight : 4
