Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description

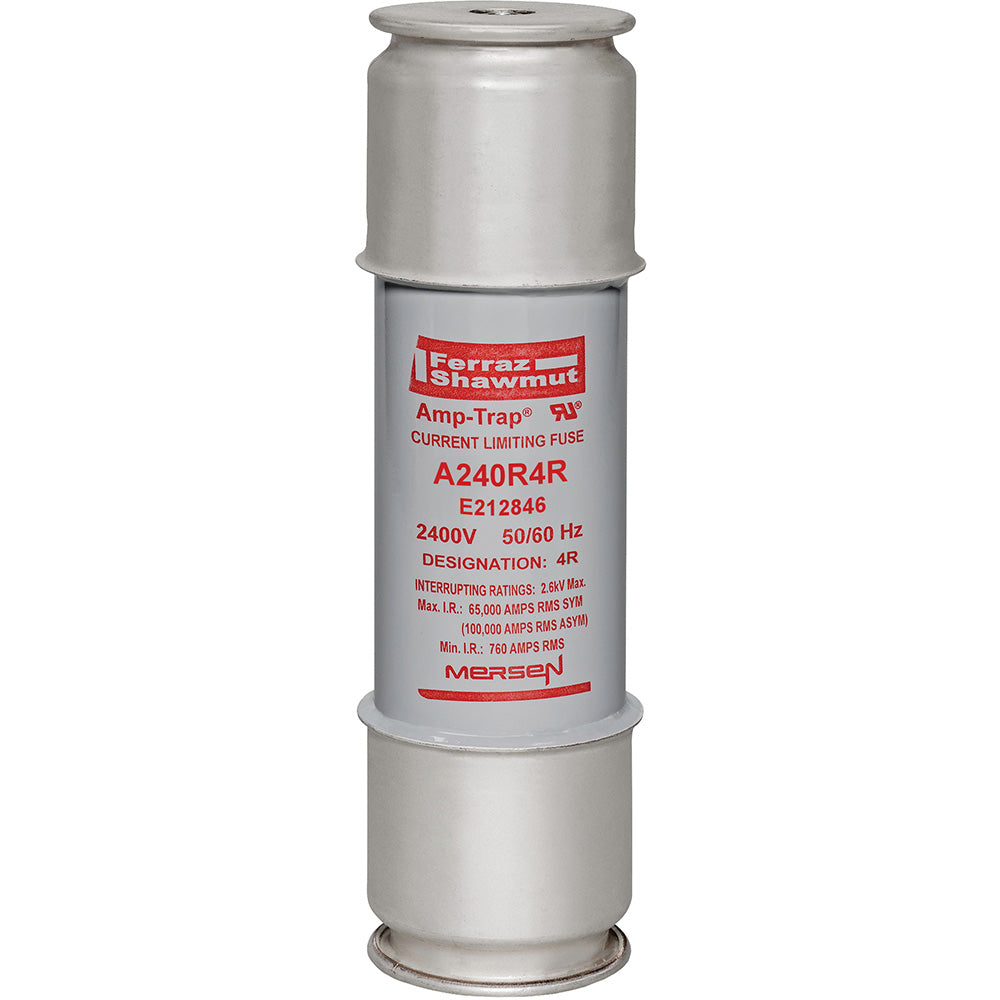

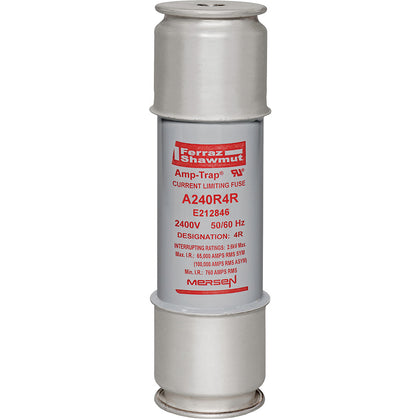

A240R4R
A240R4R is a back-up R-rated medium voltage motor protection fuse designed for 2400VAC applications with 130A amperage rating and 4R ferrule mounting configuration. This fuse is part of Mersen's 2.5 kV ferrule mount motor series and features a visual indicator system for operational status monitoring. The fuse delivers reliable motor circuit protection with a 65 kA DC interrupt rating and silver-plated copper terminals for enhanced conductivity and corrosion resistance.
- Voltage Rating: 2400VAC
- Amperage: 130A
- Class: R-Rated
- Size: 4R
- Mounting Type: Ferrule
- Interrupt Rating: 65 kA DC
- Connection Material: Silver-Plated Copper
- Length: 10.88 inches
- Weight: 7.5 pounds
- Country of Origin: Mexico
- Visual Indicator: Yes
- Application: Motor Protection
Specifications
- Part Number: A240R4R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : Amp-Trap Series
- Type : A240R
- Voltage : 2400
- Amperage : 130
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : R
- Barrels : 1
- Clip Center : 7.5
Product Data
- UPC : 782001800055
- GTIN : 00782001800055
- Weight : 8
- Certification : Amp-Trap: UL File E93367 9F60: UL File E191980
