Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description
A240R36R

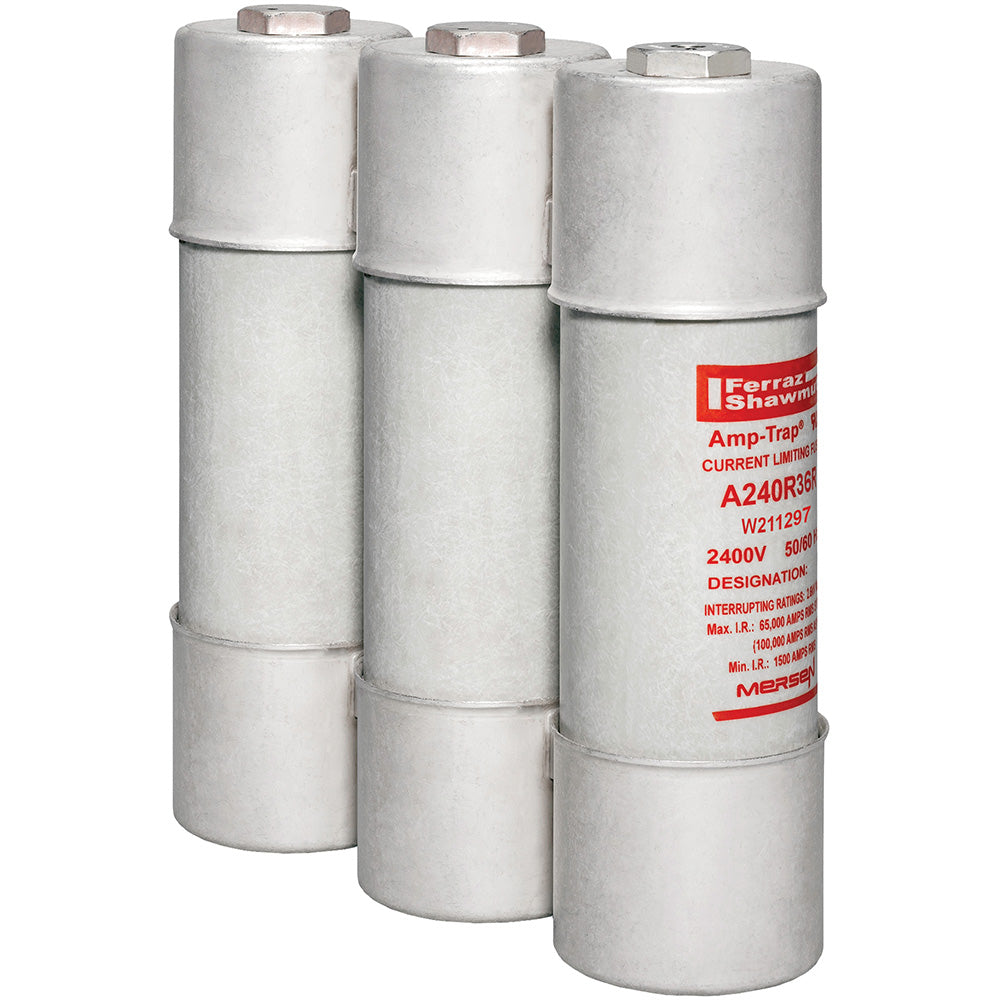

A240R36R is a Mersen Amp-Trap Series medium voltage fuse designed for motor protection with a 2400 VAC voltage rating and 650 amperes current rating.
This R-Rated fuse features a 3-inch diameter barrel and ferrule terminal type for clip mounting. It provides current-limiting short circuit protection with a high interrupting rating of 65 kA, suitable as a back-up fuse coordinated with overload relays in motor starters. The fuse body is made of epoxy insulating material and includes a visual indication system for fuse status. It is UL recognized and RoHS compliant.
- Key Specifications
- Voltage Rating: 2400 VAC
- Current Rating: 650 A
- Fuse Type: R-Rated Medium Voltage Motor Fuse
- Mounting Type: Clip with Ferrule Terminals
- Interrupting Rating: 65 kA
- Body Material: Epoxy
- Visual Indication System: Yes
- Diameter: 3 inches
- UL Recognized: Yes
- RoHS Compliant: Yes
- Part Number: A240R36R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : Amp-Trap Series
- Type : A240R
- Voltage : 2400
- Amperage : 650
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : R
- Barrels : 3
- Clip Center : 7.5
- UPC : 782001800178
- GTIN : 00782001800178
- Weight : 25
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
