Description
A210-30-11-84

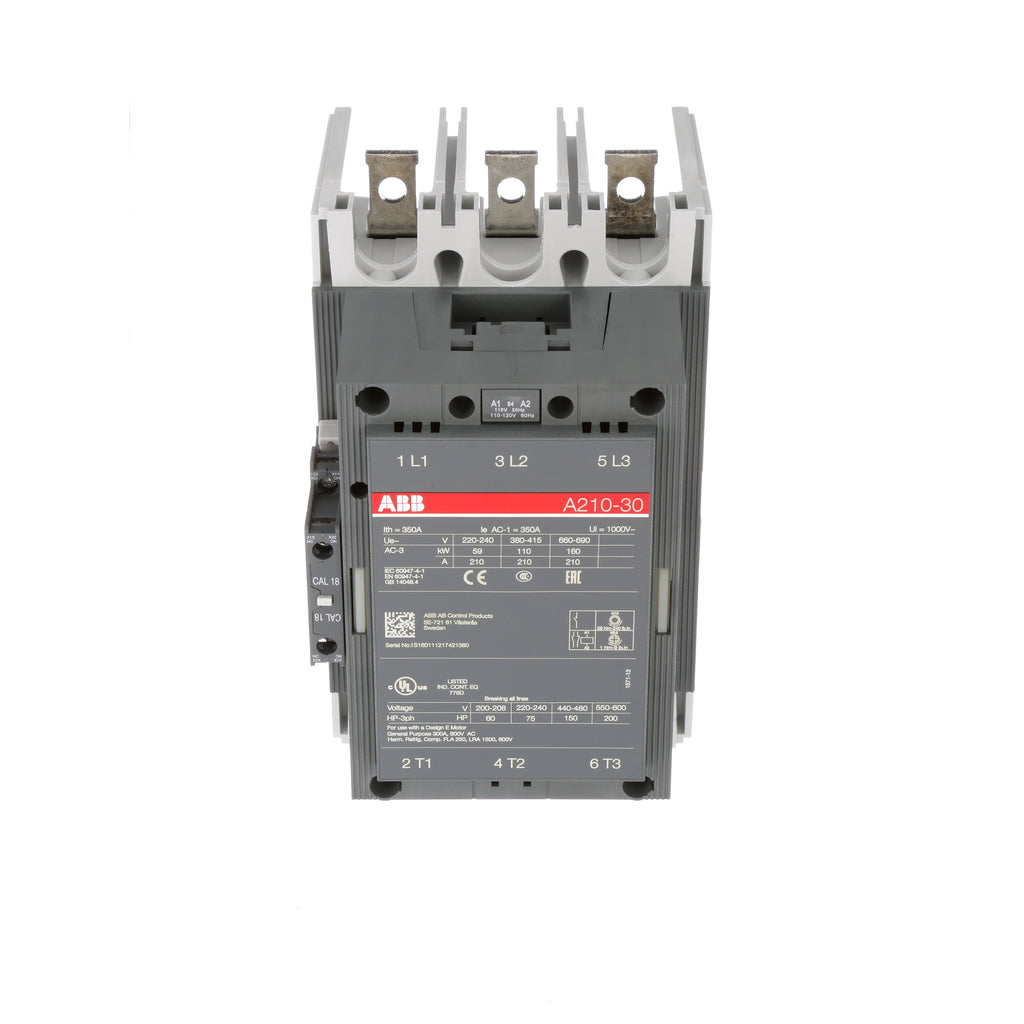

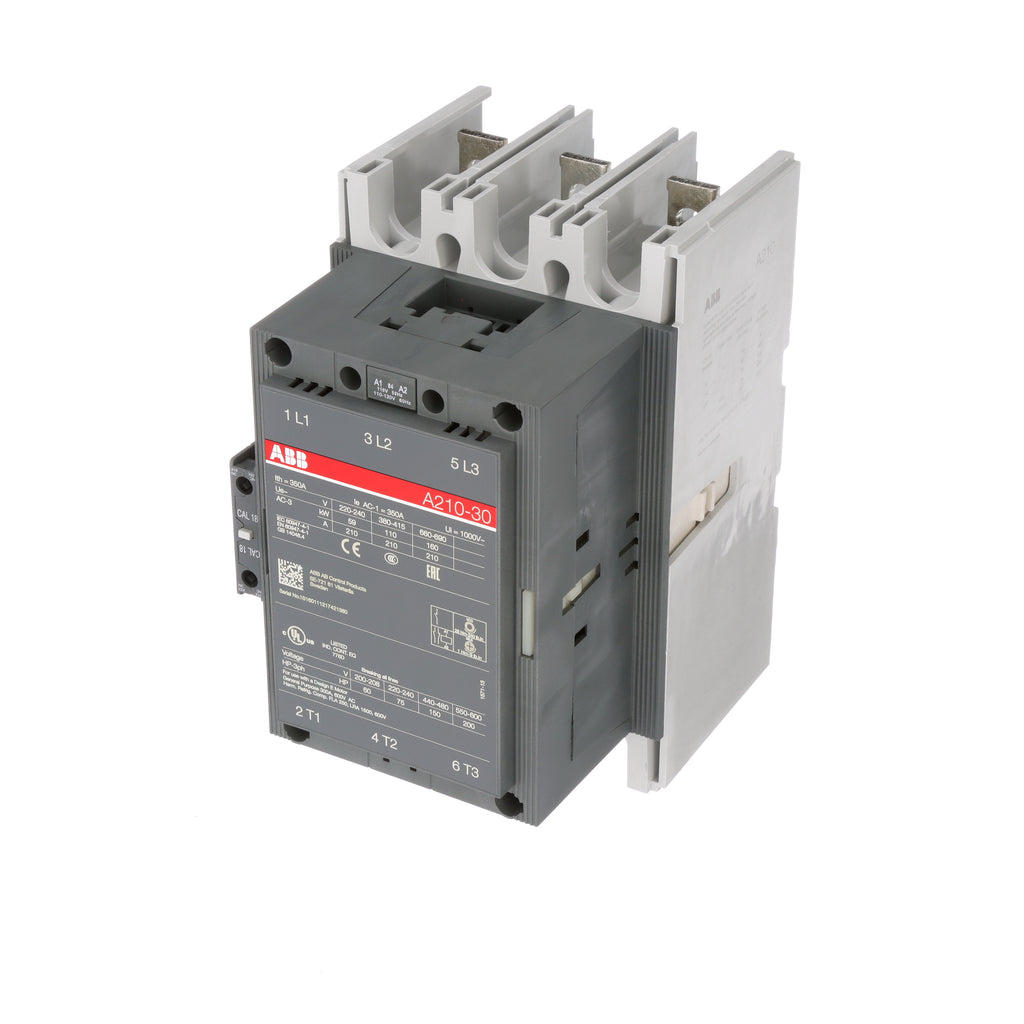

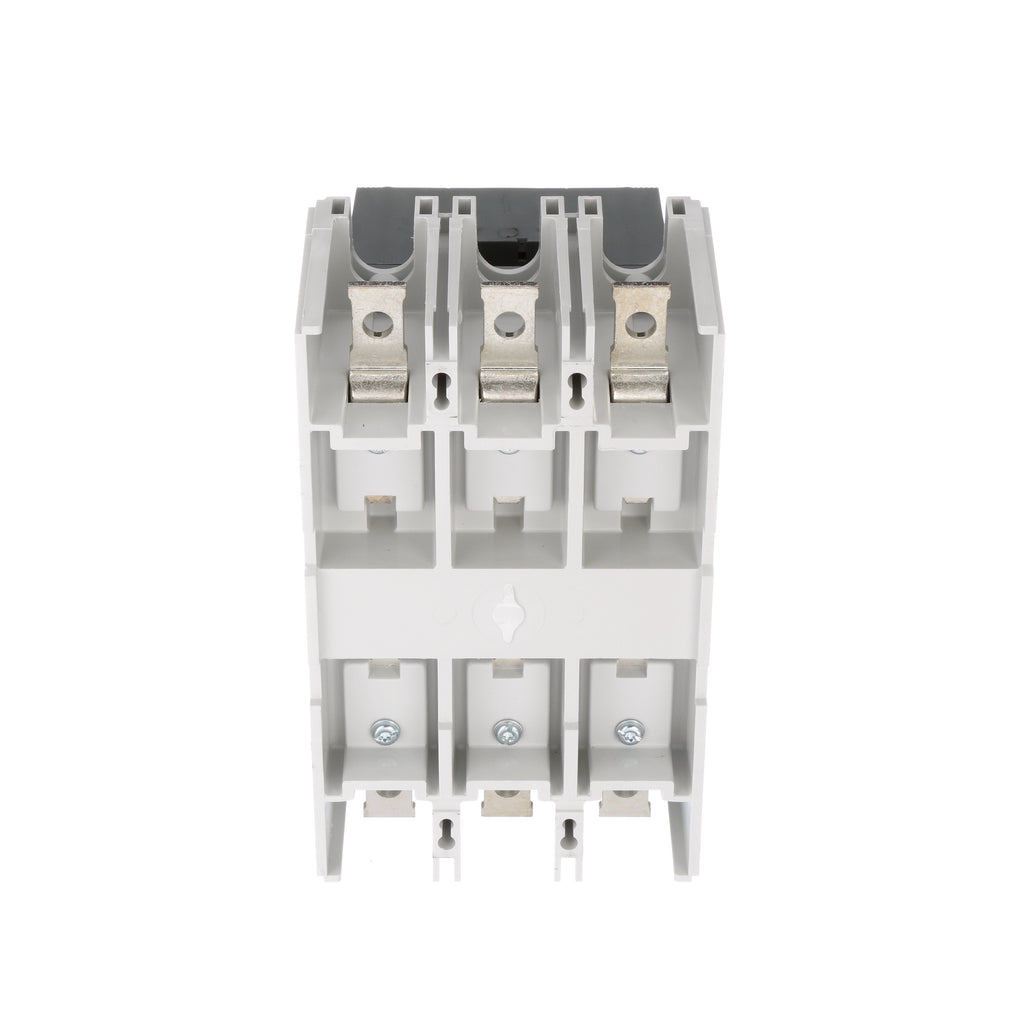

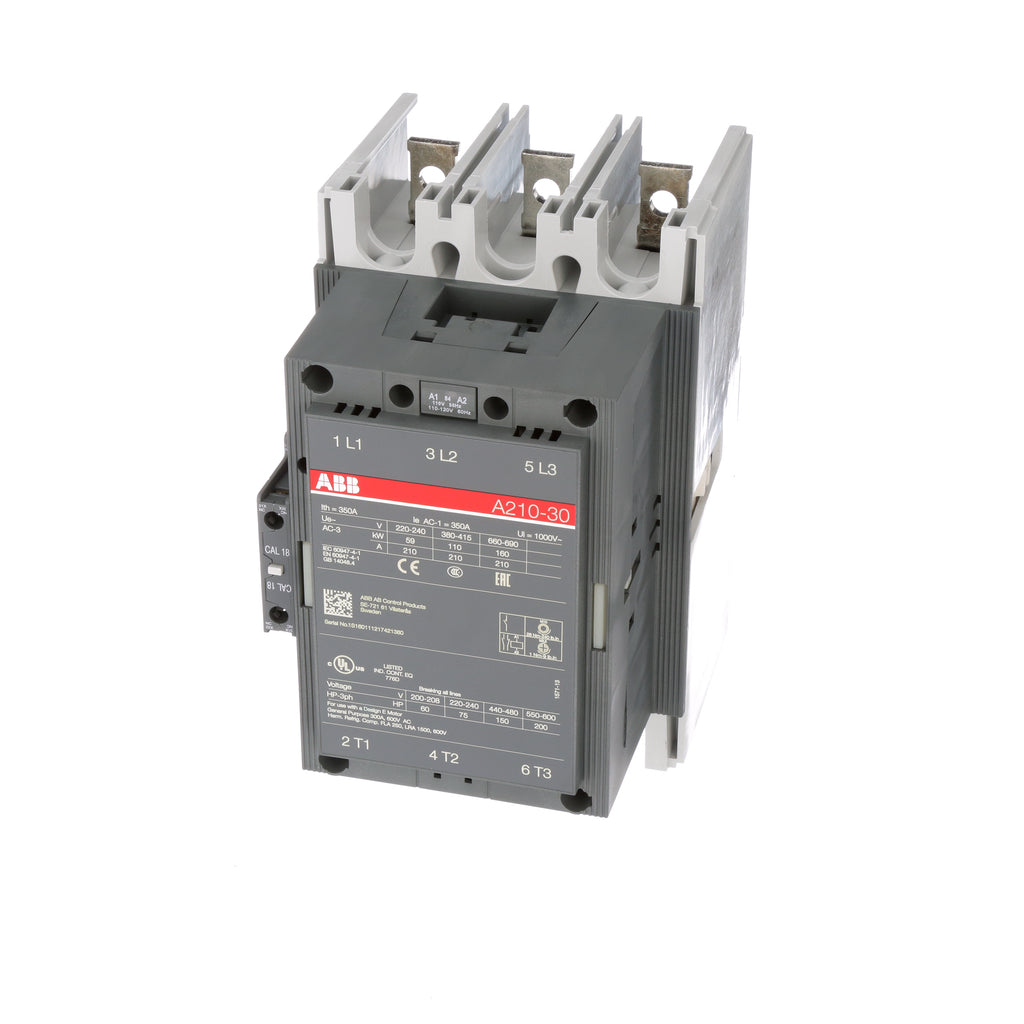

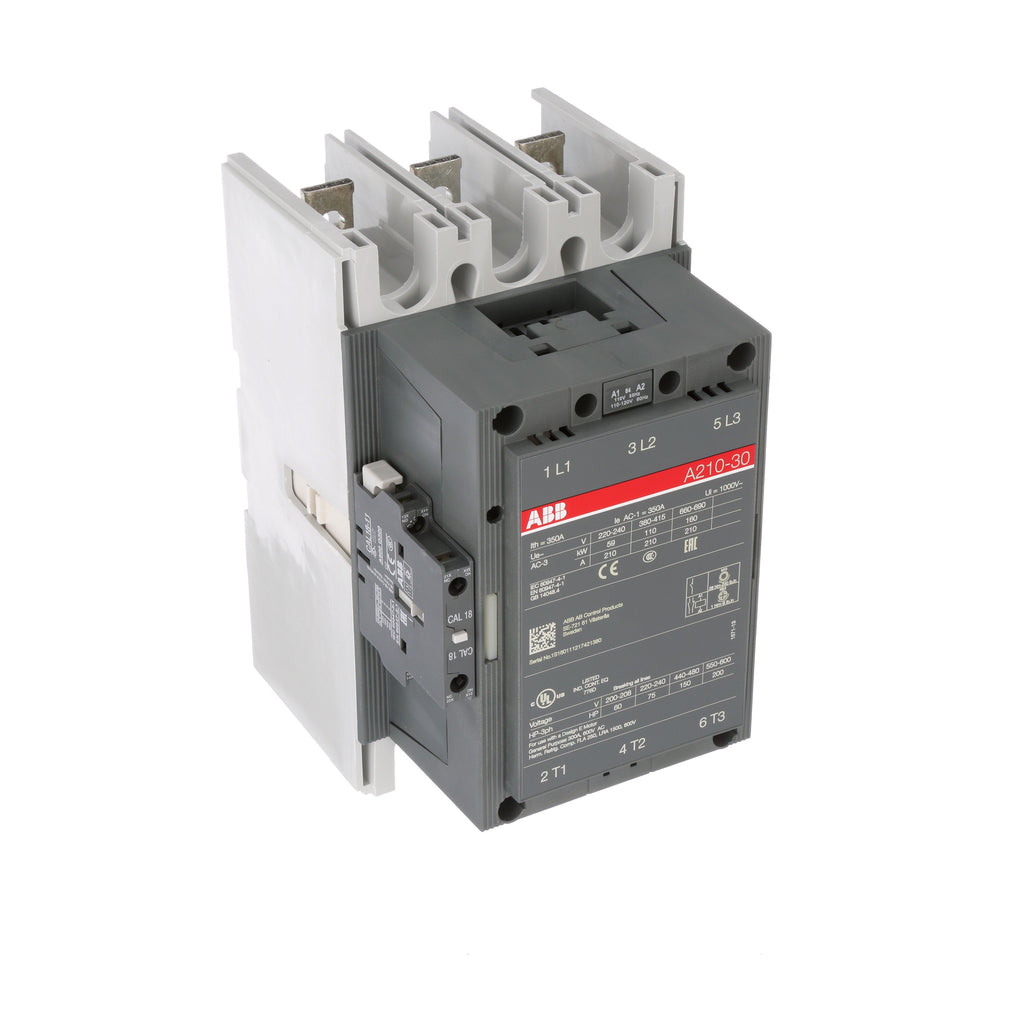

A210-30-11-84 is a 3-phase magnetic contactor from ABB's A210 series designed for motor starting, isolation, bypass, and distribution applications up to 690 V. This compact, space-saving contactor features a 110 to 120 V AC coil with built-in surge suppression and operates reliably across 50/60 Hz networks with extended voltage range capability of 85 to 110 percent of rated control voltage. Key Specifications
- Part Number: A210-30-11-84
- Manufacturer: ABB
- Number of Poles: 3
- Coil Voltage: 110 to 120 V AC
- Contact Configuration: 3NO (3 Normally Open)
- Auxiliary Contacts: 1NO-1NC
- Contact Rating: 600 V AC
- Maximum Load Current: 300 A (AC1)
- Frequency Rating: 50/60 Hz
- Coil Power Rating: 1350/1550/1700 VA pull-in, 60/65/80 VA holding
- Operating Temperature: -40 to 70 deg C
- Mounting Type: DIN Rail/Snap-On
- Terminal Type: Screw
Specifications
- Part Number: A210-30-11-84
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Family : A-Line
- Type : A210
- Voltage : 600
- Amperage : 192
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 60 hp HP @ 3 Phase - 240V 75 hp HP @ 3 Phase - 480V 150 hp
- Aux Contacts : 1NO/1NC
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
Product Data
- UPC : 32050020333
- GTIN : 07320500203330
- Dimensions : 140 mm x 227 mm
- Weight : 24
