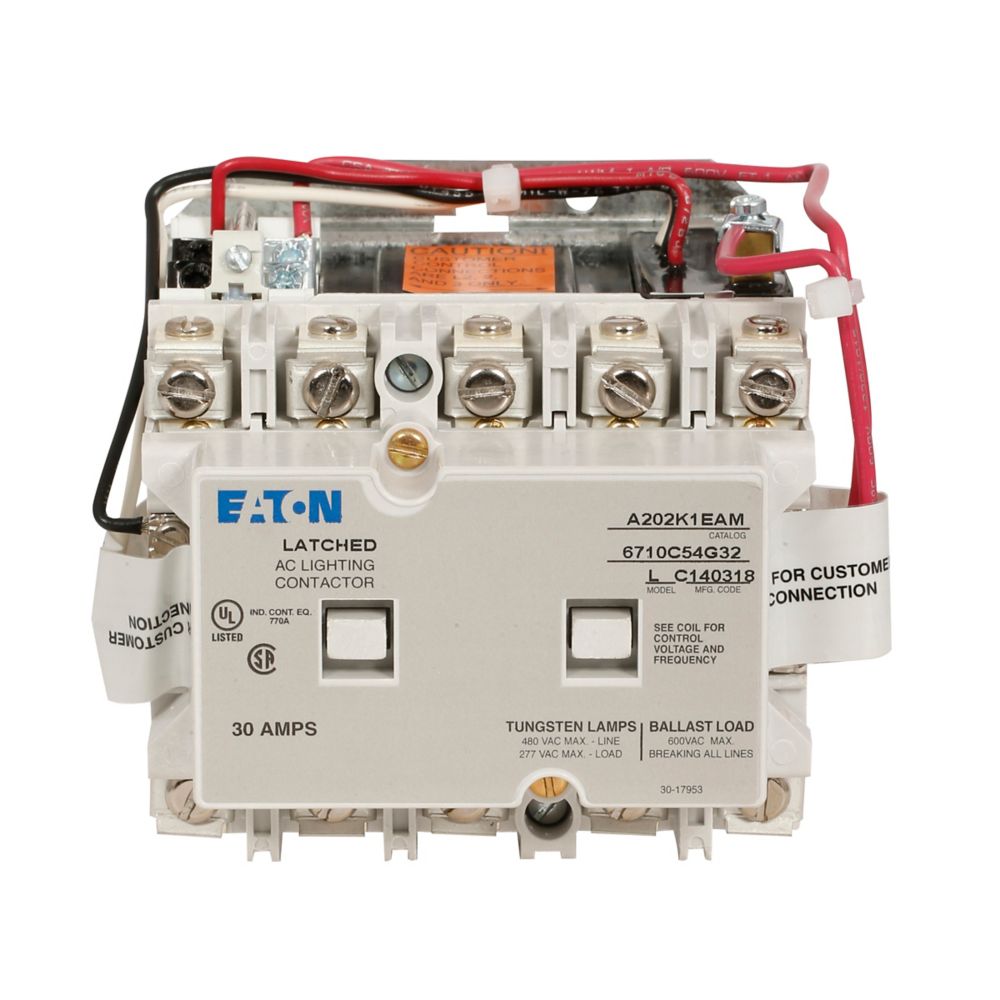

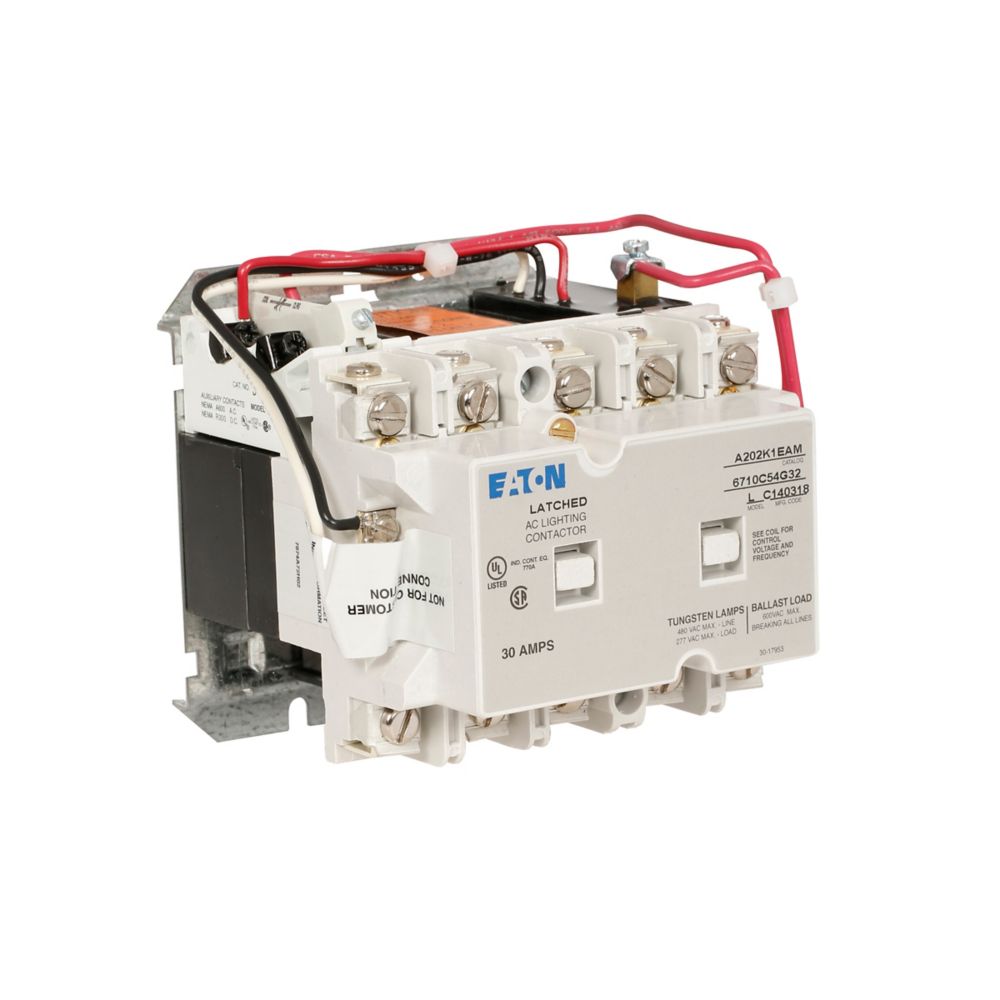

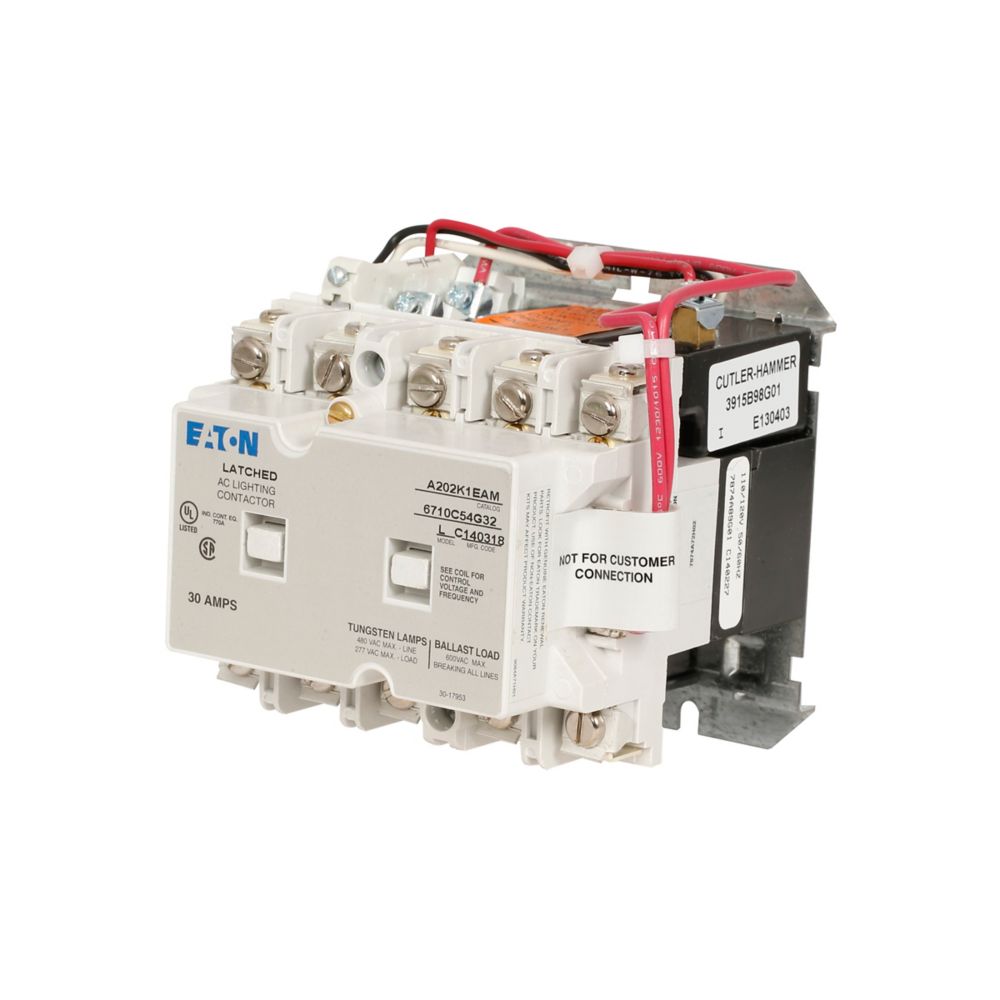

A202K1EAM - Eaton Freedom Series Definite Purpose Contactor, 3-Pole, 600 V AC, NEMA Size 1, 120 V Coil

A202K1EAM

A202K1EAM is a definite purpose contactor manufactured by Eaton as part of the Freedom Series. It is a NEMA Size 1 contactor rated for 600 V AC operation and features a 120 V AC coil. The A202K1EAM is designed for reliable control of motors, resistive, and lighting loads in both industrial and commercial systems. Built with heavy-duty contacts and a compact frame, the A202K1EAM provides dependable performance and long electrical life. It supports field-replaceable coils and contact kits for quick maintenance and integrates easily into control panels or MCCs.

• Part Number: A202K1EAM
• Manufacturer: Eaton
• Series / Family: Freedom Series (A202)
• Product Type: Definite Purpose Contactor
• NEMA Size: 1
• Poles: 3
• Voltage Rating: 600 V AC
• Coil Voltage: 120 V AC
• Operation: Electrically held
• Mounting Type: Panel mount
• Application: Motor control, HVAC systems, and lighting circuits
• Certifications: UL Listed, CSA Certified, NEMA ICS 2 Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Magnetically Held includes a 120 VAC coil.

Specifications

• Part Number: A202K1EAM
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : A202
• Type : A202
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 5
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Frequency : 60 Hz

Product Data

• UPC : 786678035680
• GTIN : 00786678035680
• Country of Origin : Dominican Republic
• Dimensions : 4.19 in x 4.38 in x 4.19 in (Length/Depth x Height x Width)
• Weight : 3.2 lb
• Certification : CSA Certified,UL Listed
