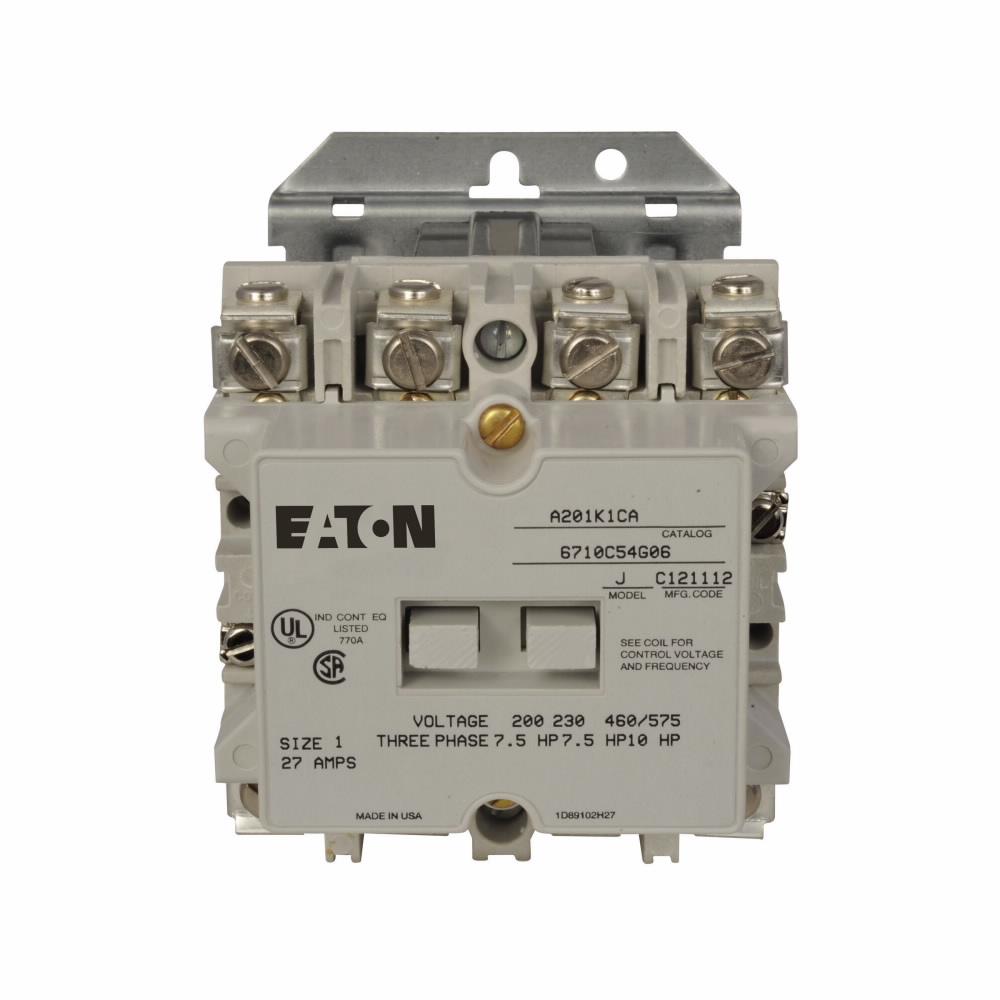

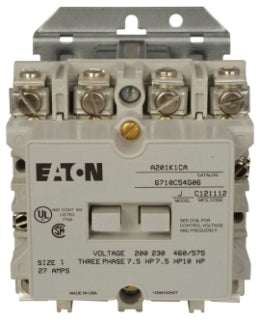

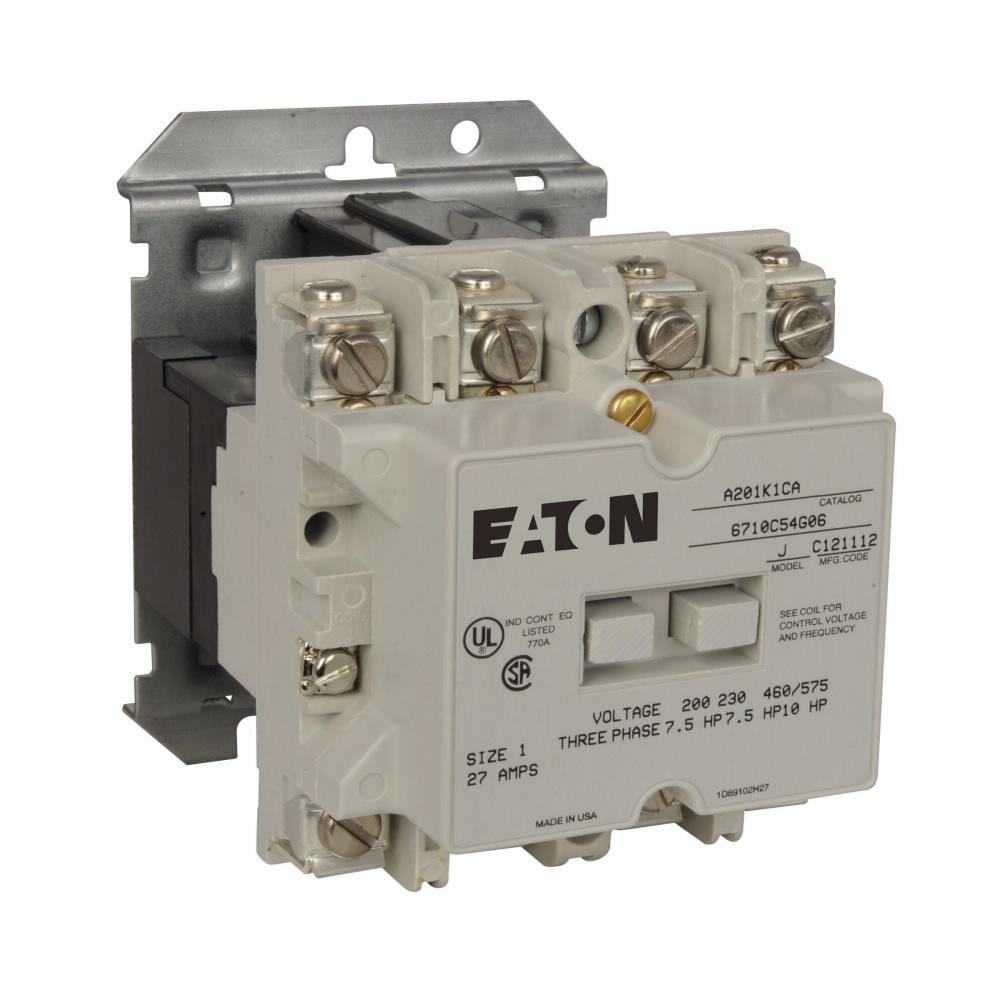

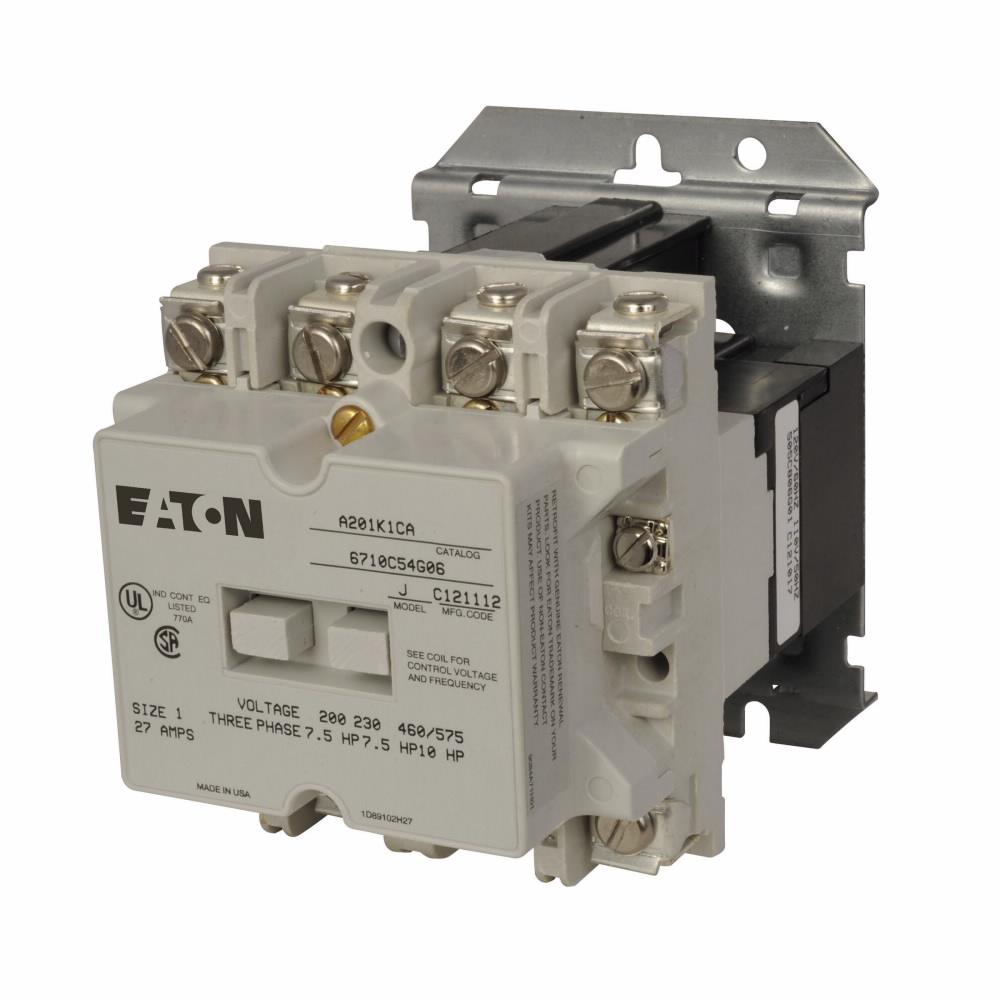

A201K1CA - Cutler Hammer 27A 3-Pole 120V Coil NEMA Size 1 Motor Control Contactor

A201K1CA

A201K1CA is a Cutler Hammer motor control contactor designed for non-reversing applications with a 27 amp rating and 3 poles.This Eaton Freedom NEMA Size 1 magnetic contactor features a 120V AC coil, supports full voltage operation up to 600VAC, and is open style without enclosure. It is front connected and suitable for across the line starting and stopping of single-speed motors. The contactor is rated for multiple maximum horsepower applications across various voltages and phases, and it is CSA certified and UL listed.

• Amperage: 27A
• Coil Voltage: 120V AC (60 Hz), 110V AC (50 Hz)
• Poles: 3
• Voltage Rating: Up to 600VAC
• NEMA Size: 1
• Mounting Type: Front connected
• Operation: Non-Reversing
• Enclosure: Open style (no enclosure)
• Series/Frame: A200 Series
• Certifications: CSA Certified, UL Listed
• Max HP Ratings: 2 HP @ 115V 1-phase, 7.5 HP @ 208/240V 3-phase, 10 HP @ 480/600V 3-phase
• Weight: Approx. 2.6-2.8 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A201K1CA
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : A200 Series
• Type : A201
• Voltage : 600
• Amperage : 27
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110

Product Data

• UPC : 786678231532
• GTIN : 00786678231532
• Country of Origin : Dominican Republic
• Dimensions : 4.61 in x 3.31 in x 4.38 in (Length/Depth x Height x Width)
• Weight : 2.8 lb
• Certification : UL Listed,CSA Certified
