A200MACAC - Cutler Hammer 9 Amp 600 Volt 3 Pole NEMA Motor Control Starter

A200MACAC

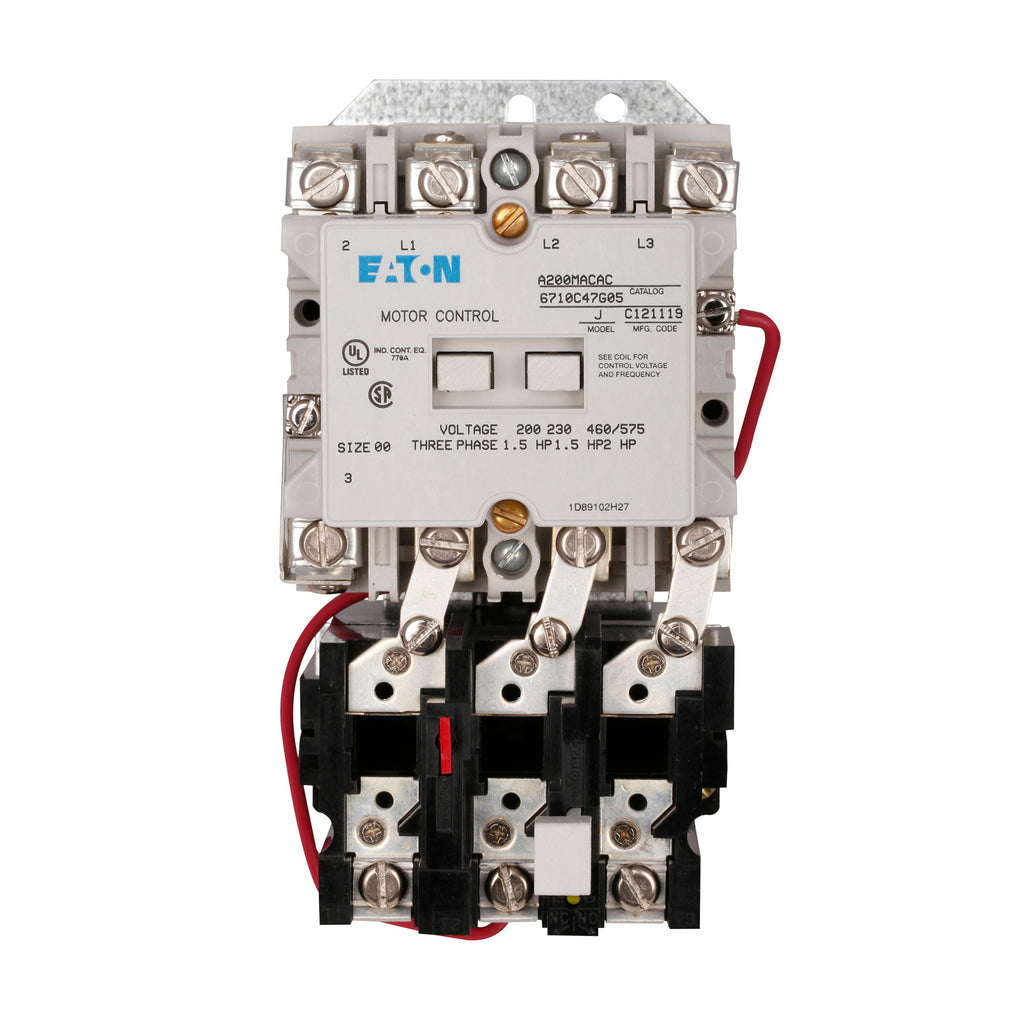

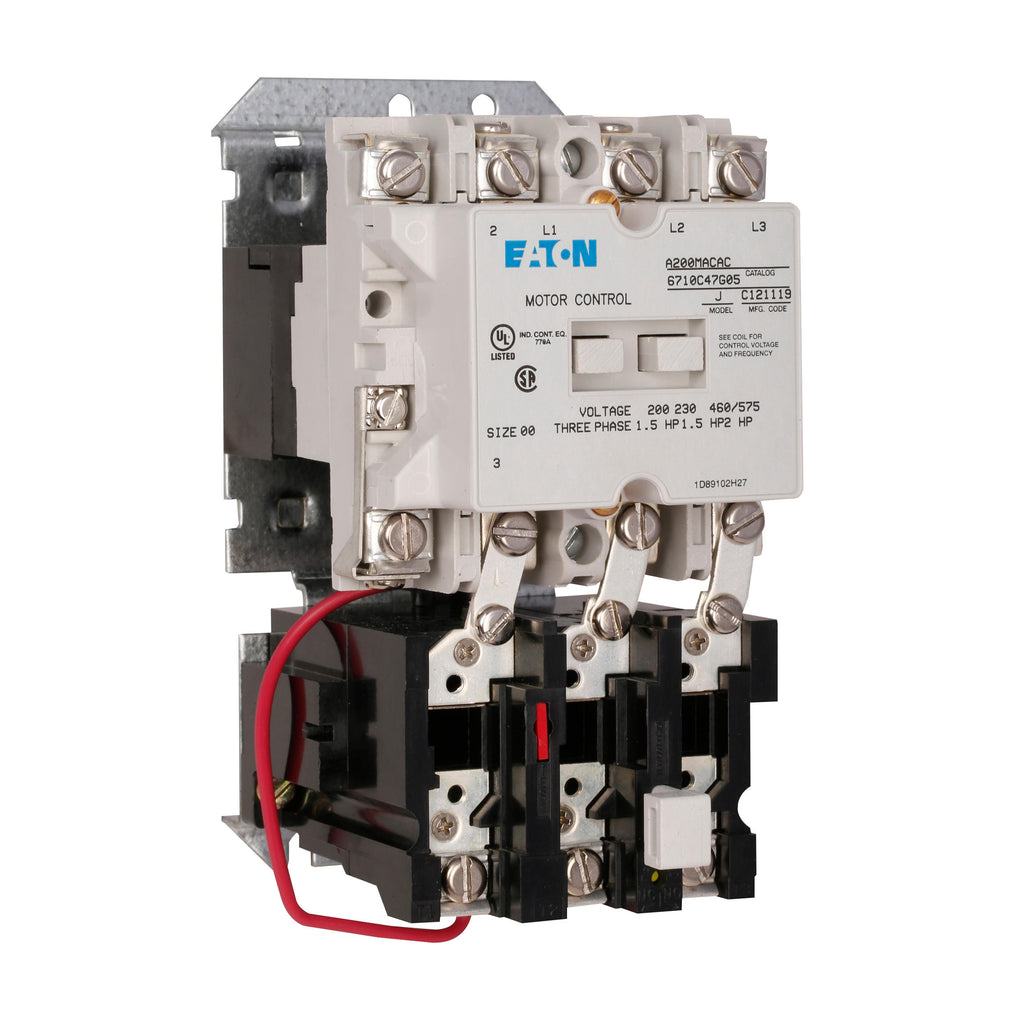

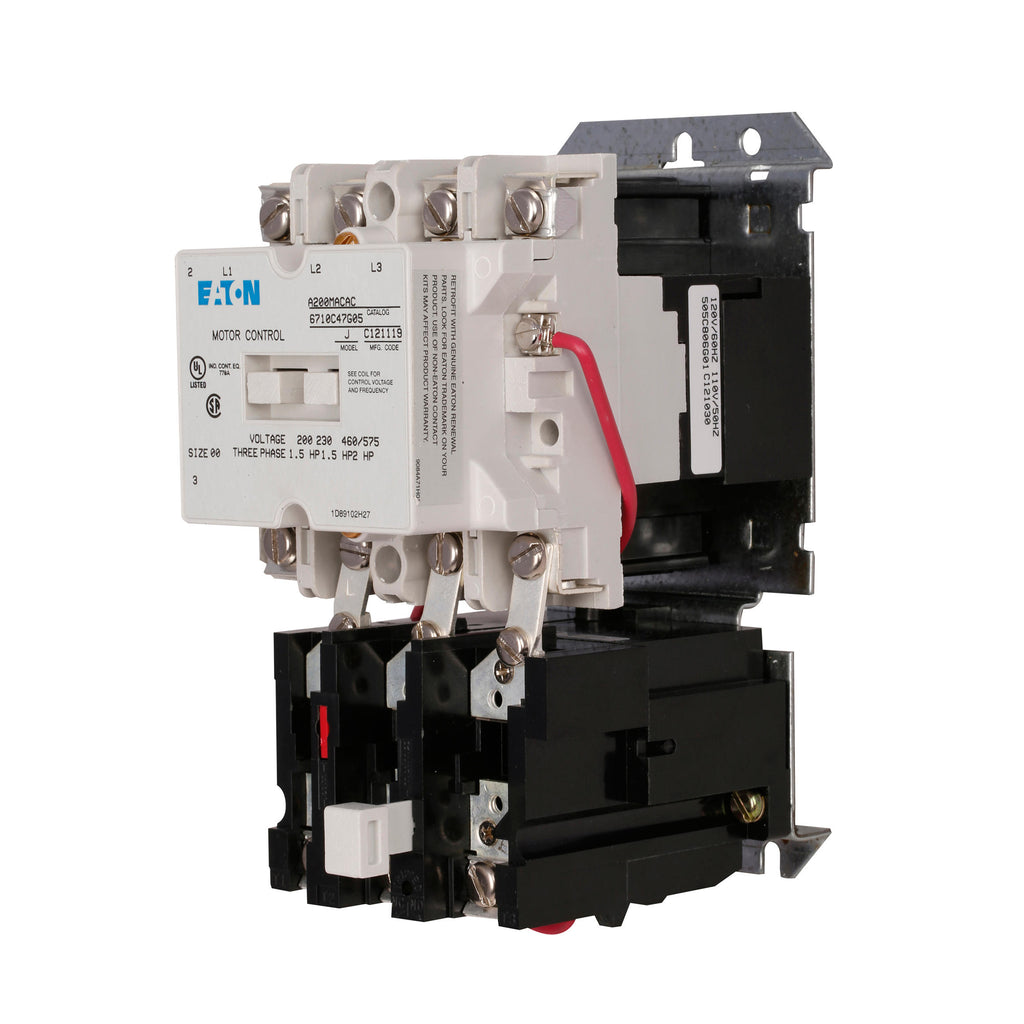

A200MACAC is a Cutler Hammer motor control starter designed for 9 Amp current and 600 Volt operation with 3 poles.This Eaton Freedom NEMA motor control starter is a non-reversing type with coil voltage ratings of 110VAC at 50Hz and 120VAC at 60Hz. It supports motor power ratings of 1/3 hp at 115V, 1-1/2 hp at 208/240V, and 2 hp at 480/600V. The starter features a surface mounting type and is part of the A200 series, wired for separate control. It is UL Listed and CSA Certified, suitable for three-phase magnetic motor control applications.

Key Specifications
• Amperage: 9 Amps
• Voltage: 600 VAC maximum
• Poles: 3 Pole
• Coil Voltage: 110VAC (50Hz), 120VAC (60Hz)
• Mounting Type: Surface Mount
• Series/Frame: A200 Series, NEMA Size 00
• Motor Power Ratings: 1/3 hp at 115V, 1-1/2 hp at 208/240V, 2 hp at 480/600V
• Type: Non-Reversing Magnetic Motor Starter
• Certifications: UL Listed, CSA Certified
• Wiring: Wired for Separate Control
• Enclosure: Open Style
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: A200MACAC
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : A200 Series
• Type : A200
• Voltage : 600
• Amperage : 9
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Nema Rating : 00



Product Data

• UPC : 786678231051
• GTIN : 00786678231051
• Country of Origin : Dominican Republic
• Dimensions : 4.61 in x 3.31 in x 4.38 in (Length/Depth x Height x Width)
• Weight : 2.6 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA Certified,UL Listed
