A200M0CAC - Cutler Hammer 18A 600V 3-Pole NEMA Size 0 Magnetic Motor Starter Non-Reversing 120V Coil

A200M0CAC

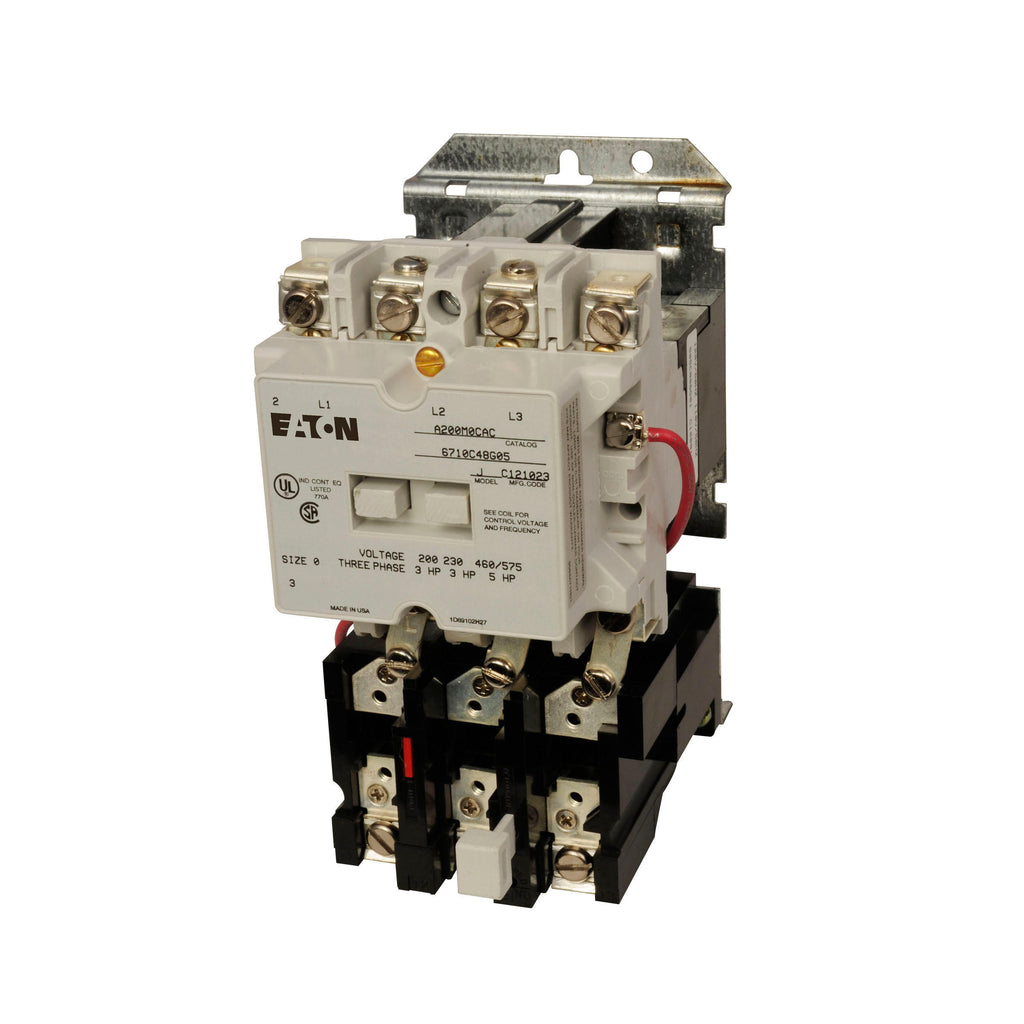

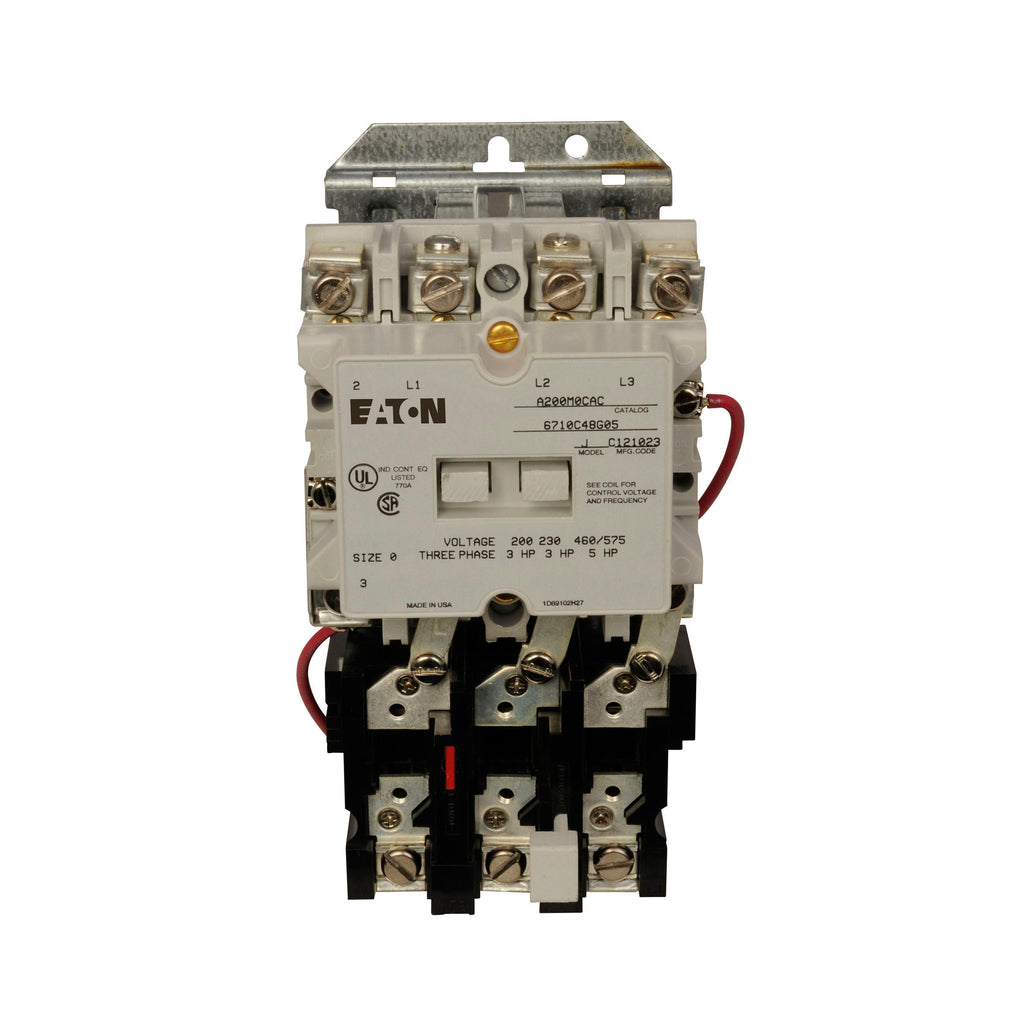

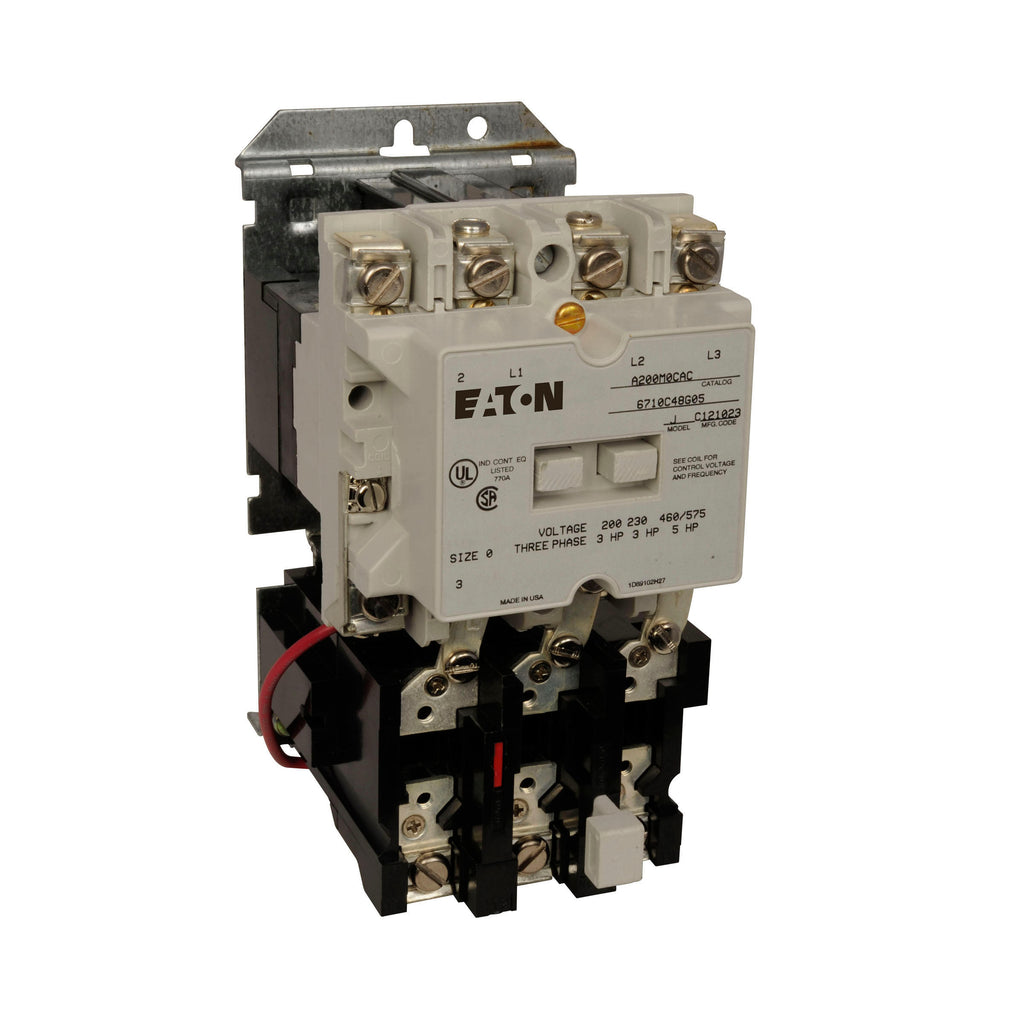

A200M0CAC is a Cutler Hammer magnetic motor starter designed for non-reversing motor control applications.This NEMA Size 0 starter features 18 amps rating, three poles, and a 120V AC coil voltage. It supports full voltage across-the-line starting and stopping with a maximum system voltage of 600VAC. The starter is equipped with a Type B overload relay and is open style without enclosure. It is suitable for single-speed motors with horsepower ratings of 1 HP at 115V single phase, 3 HP at 208/240V three phase, and 5 HP at 480/600V three phase. The unit is UL Listed and CSA Certified.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 18 Amps
• Voltage: 600 VAC max system voltage
• Coil Voltage: 120V AC (110/120V compatible)
• Poles: 3
• NEMA Size: 0
• Type: Magnetic Motor Starter
• Overload Relay: Type B standard
• Mounting: Open style, no enclosure
• Non-Reversing
• Certifications: UL Listed, CSA Certified
• Horsepower Ratings: 1 HP @ 115V 1-phase, 3 HP @ 208/240V 3-phase, 5 HP @ 480/600V 3-phase
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: A200M0CAC
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : A200 Series
• Type : A200
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Nema Rating : 0
• Amperage Maximum : 120



Product Data

• UPC : 786678231105
• GTIN : 00786678231105
• Country of Origin : Dominican Republic
• Dimensions : 4.61 in x 6.42 in x 3.31 in (Length/Depth x Height x Width)
• Weight : 35 lb
• Certification : UL Listed,CSA Certified
