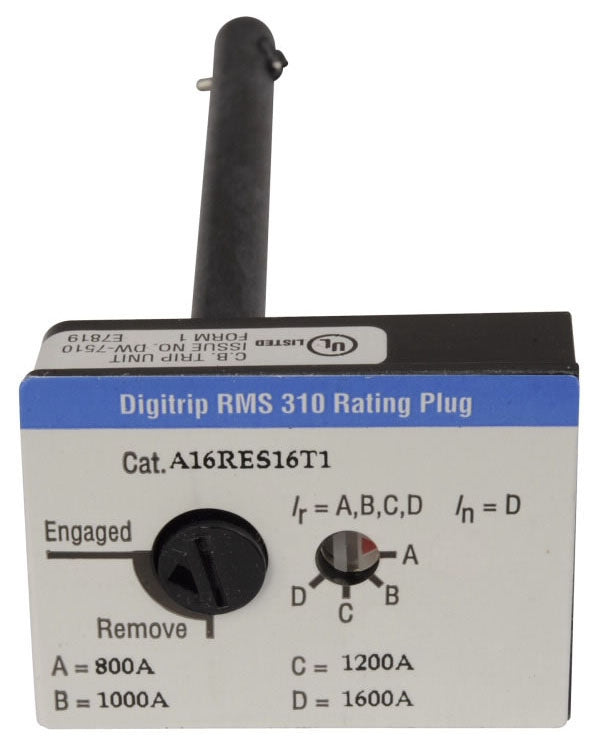

A16RES16T2 - Cutler Hammer 1600A Adjustable Rating Plug for Series G Molded Case Circuit Breaker Frame J-K

A16RES16T2

A16RES16T2 is an adjustable rating plug designed for Cutler Hammer Series G molded case circuit breakers with Frame J-K, rated up to 1600A.This rating plug allows adjustable current settings from 800A to 1600A, providing compatibility with multiple breaker current ratings within the Series G frame J-K breakers. It is used to set the breaker trip current accurately for protection coordination and system requirements.

• Manufacturer: Cutler Hammer
• Part Number: A16RES16T2
• Type: Molded Case Circuit Breaker Rating Plug
• Amperage Rating: Adjustable 800A to 1600A
• Compatible Series: Series G
• Frame Size: J-K
• Mounting Method: Adjustable

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A16RES16T2
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Rating Plug
• Family : Series G
• Type : A16RES
• Amperage : 1600
• Frame Size : 1600
• Amperage Maximum : 1600
• Amperage Minimum : 800
• Compatible Frames : RD,RDC,CRD,CRDC,RGH,RGC,RW,RWC
• Trip Type : DIGITRIP,RMS310,RES

Product Data

• UPC : 786679581957
• GTIN : 00786679581957
• Country of Origin : United States
• Dimensions : 4.9 in x 1.5 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.07
