Description

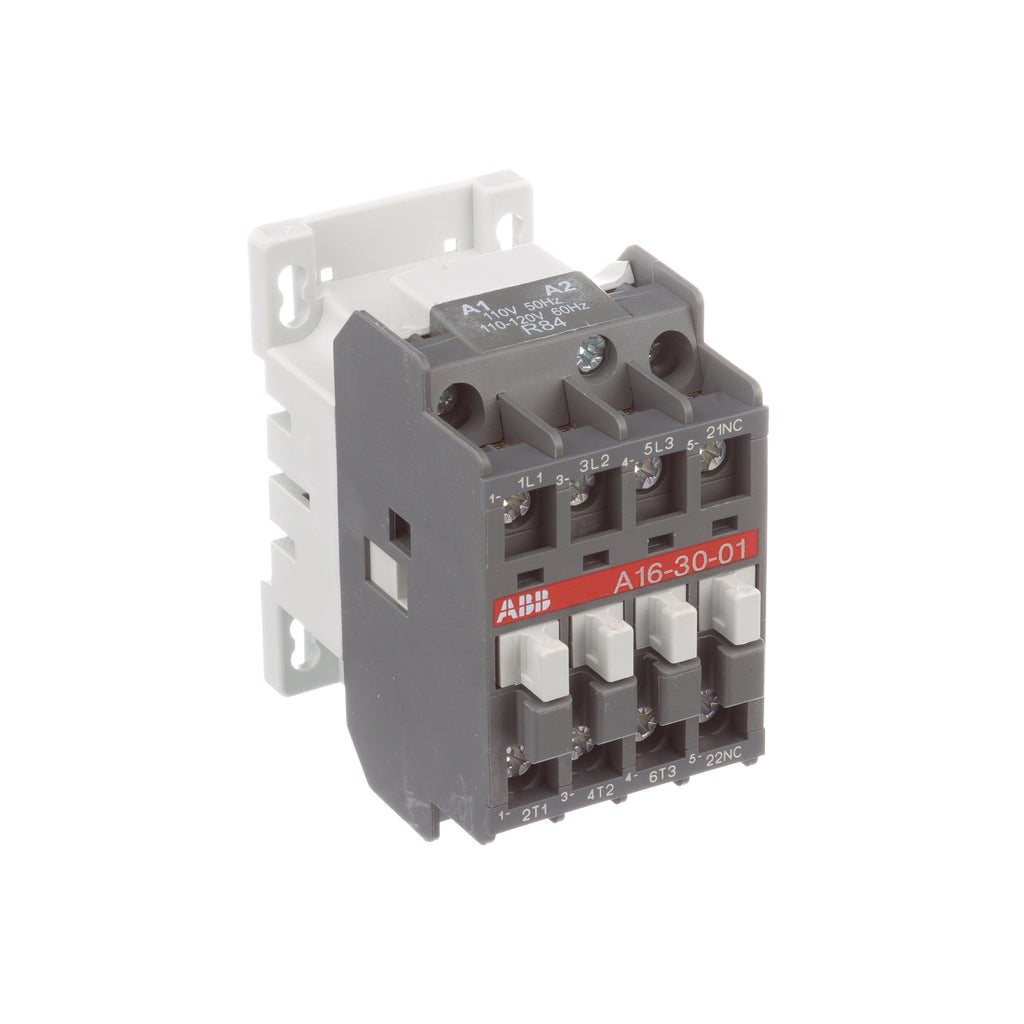

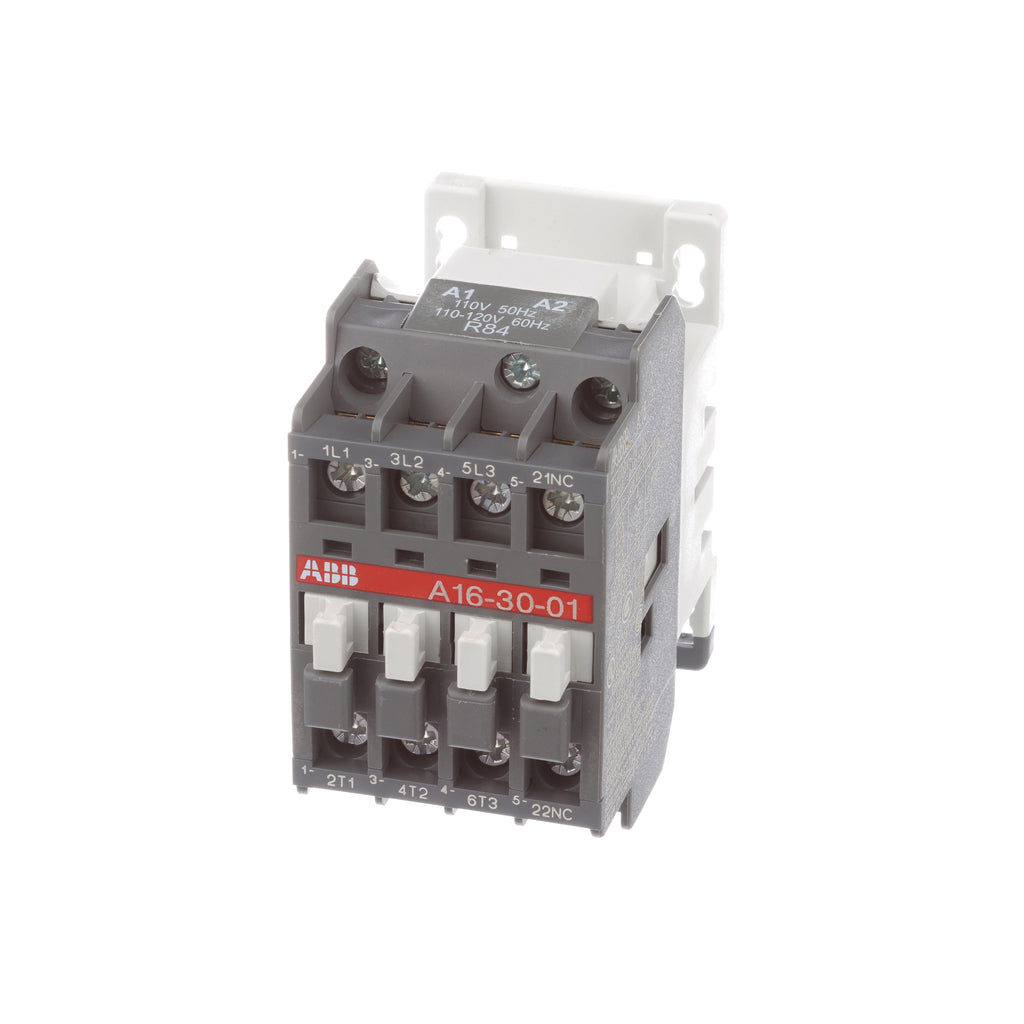

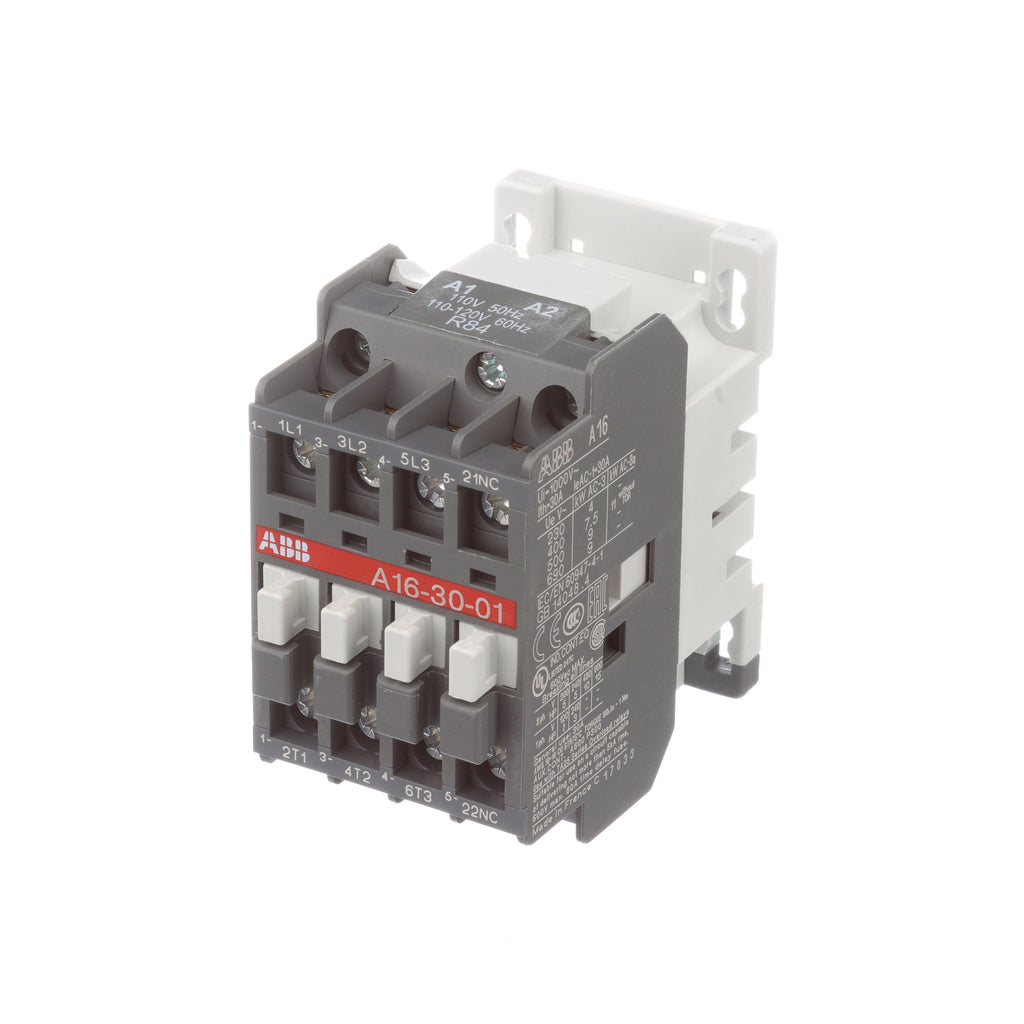

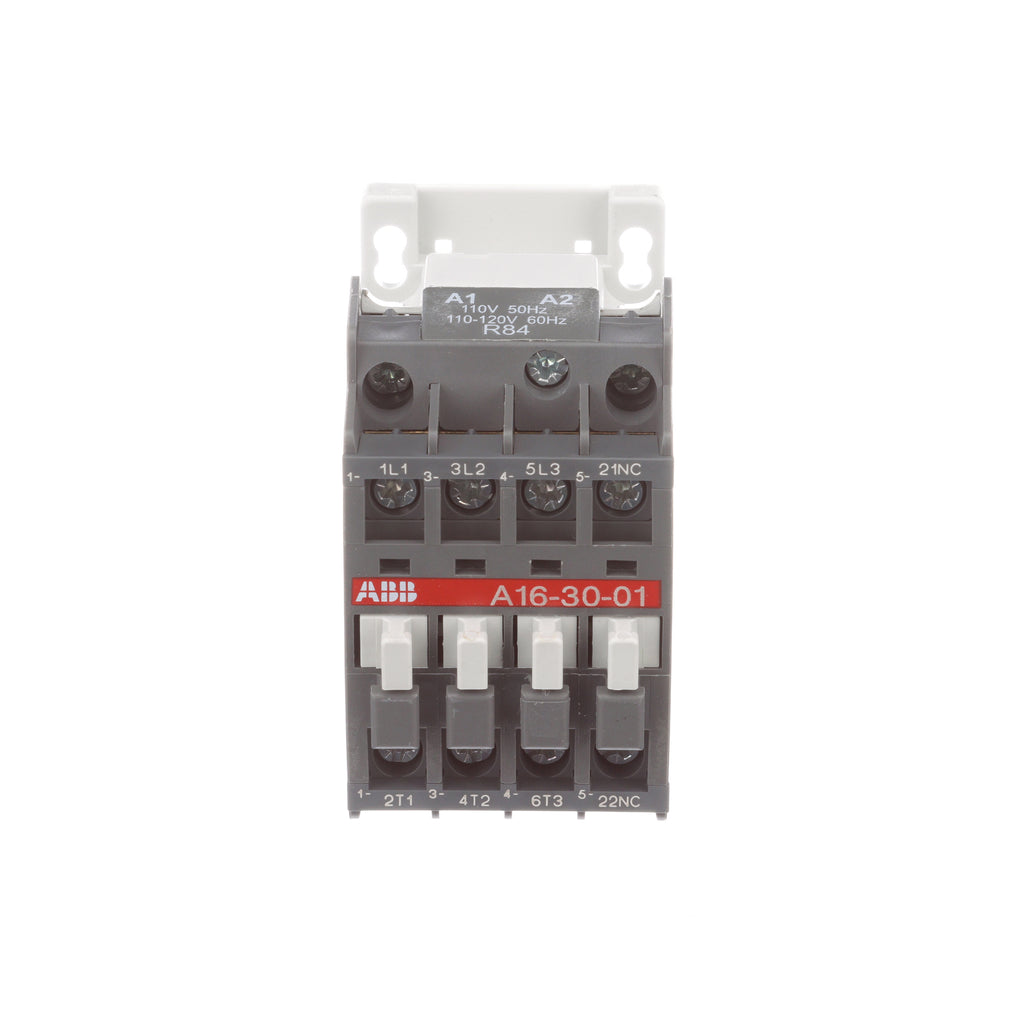

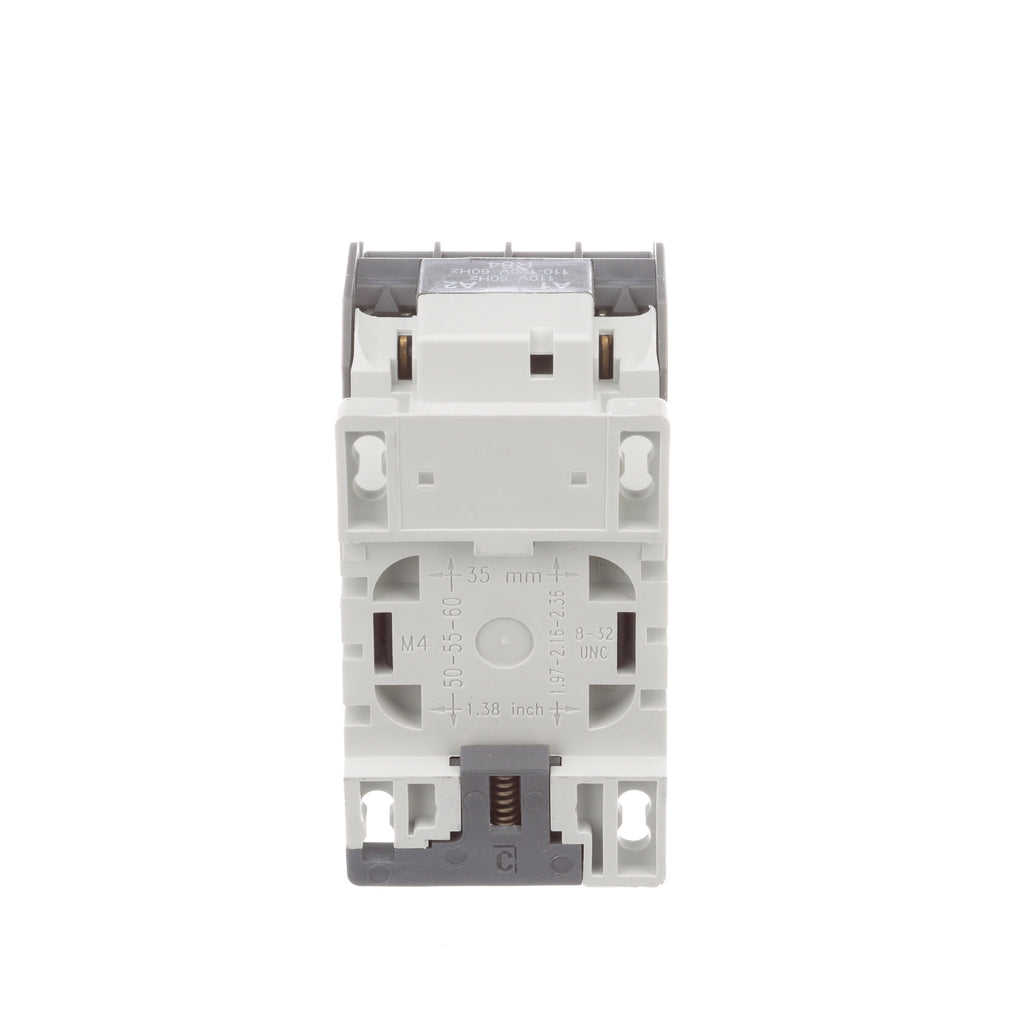

A16-30-01-84
A16-30-01-84 is a 3-pole AC non-reversing contactor designed for motor control and power circuit applications up to 690V AC. This ABB A-Series contactor delivers reliable performance in industrial motor switching and general-purpose control circuits.Technical Overview: The A16-30-01-84 features a 110-120V AC coil with 3 normally open (3NO) contact configuration. It is rated for 30A at AC1 (general purpose) and 17A at AC3 (UL motor switching). The contactor supports multiple voltage applications including 115V single-phase (1.5 HP maximum), 230-240V single-phase (5 HP maximum), and 200-208V three-phase (5 HP maximum) motor control. Contact rating reaches 690V AC, making it suitable for diverse industrial environments.Key Specifications
- Part Number: A16-30-01-84
- Manufacturer: ABB
- Poles: 3-Pole
- Contact Configuration: 3 Normally Open (3NO)
- Coil Voltage: 110-120V AC
- General Purpose Rating (AC1): 30 Amps
- Motor Switching Rating (AC3): 17 Amps
- Contact Rating: 690V AC
- Contact Type: Non-Reversing
- Coil Power Rating: 70-80 VA
- Series: A-Line (IEC Standard)
Specifications
- Part Number: A16-30-01-84
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Family : A-Line
- Type : A16
- Voltage : 600
- Amperage : 17
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
Product Data
- UPC : 47152204984
- GTIN : 03471522049841
- Weight : 1
