A16.2 - Square D A-Series Thermal Overload Relay Heater Element 9.81-11.5A Melting Alloy Class 20 Trip Plug-In Mount

A16.2

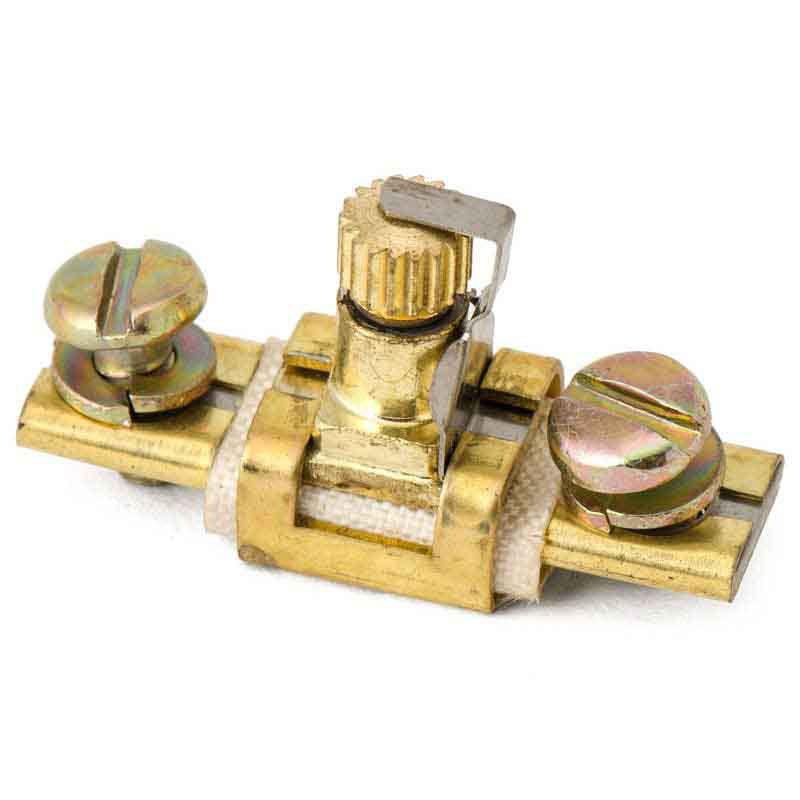

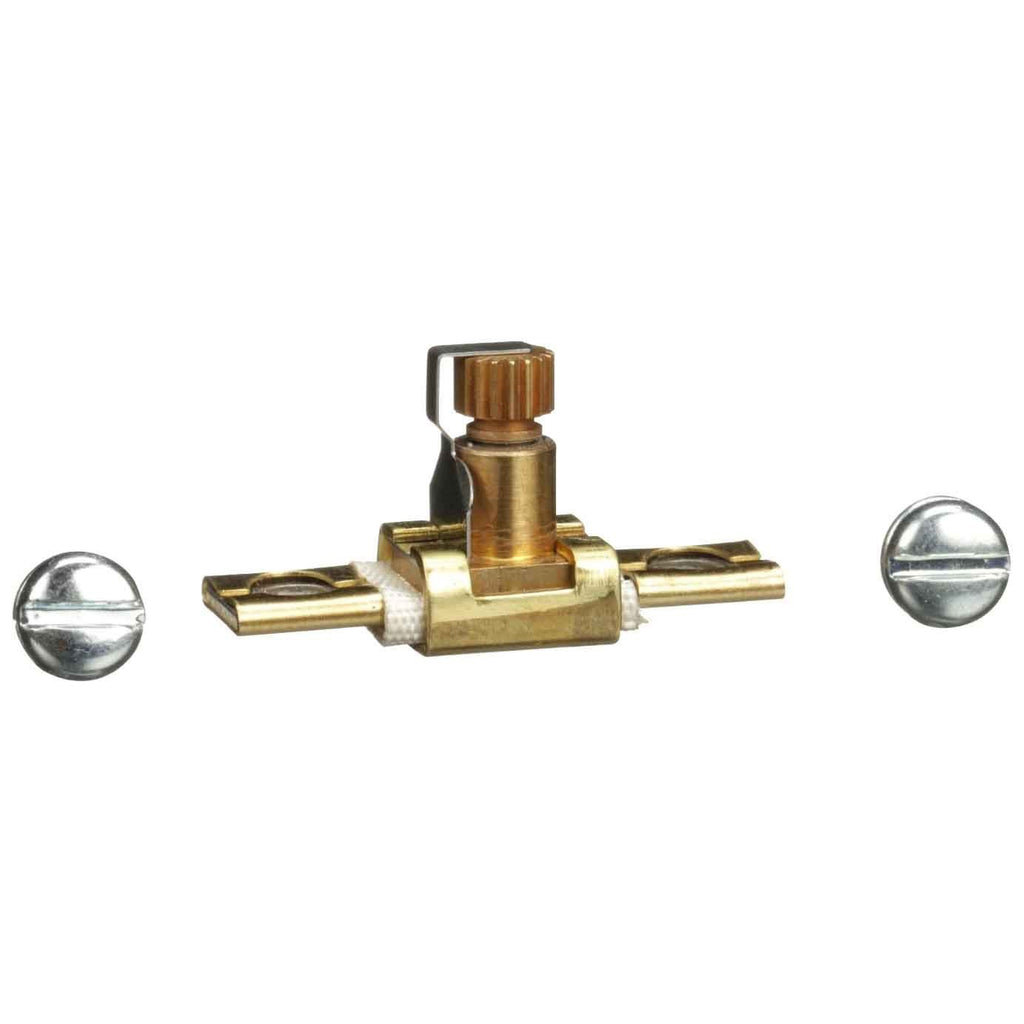

A16.2 is a Square D A-Series thermal overload relay heater element designed for motor protection in industrial and commercial applications. This melting alloy thermal unit provides reliable overload protection for motors, controllers, and branch circuit conductors against excessive heating due to prolonged overcurrent conditions. The A16.2 heater element features plug-in mounting for easy installation and replacement. It is compatible with a range of Square D thermal overload relays, magnetic motor starters, and motor control devices. The unit is rated for 600V AC and provides Class 20 trip response, ensuring motors are protected from overload up to and including locked rotor currents. The melting alloy sensing method ensures precise and repeatable tripping performance.

• Part Number: A16.2
• Manufacturer: Square D
• Series: A-Series
• Type: Melting Alloy Thermal Unit
• Full Load Amps: 9.81 - 11.5A
• Maximum Voltage: 600V AC
• Mounting Type: Plug-In
• Motor Tripping Class: 20
• Sensing Method: Melting Alloy
• Compatible Devices: Thermal Overload Relays, Magnetic Motor Starters, Motor Controls
• Application: Motor Protection, Overload Relay, Motor Control

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A16.2
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Heater Element
• Family : A Series
• Type : A
• Voltage : 600
• Amperage : 4000
• Phase : 3
• Poles : 3
• Full Load Amp Minimum : 9.81
• Full Load Amp Maximum : 11.5
• Full Load Amps : 10.90 to 12.10

Product Data

• UPC : 78590158548
• GTIN : 00785901585480
• Country of Origin : Mexico
• Weight : 0.05
