Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

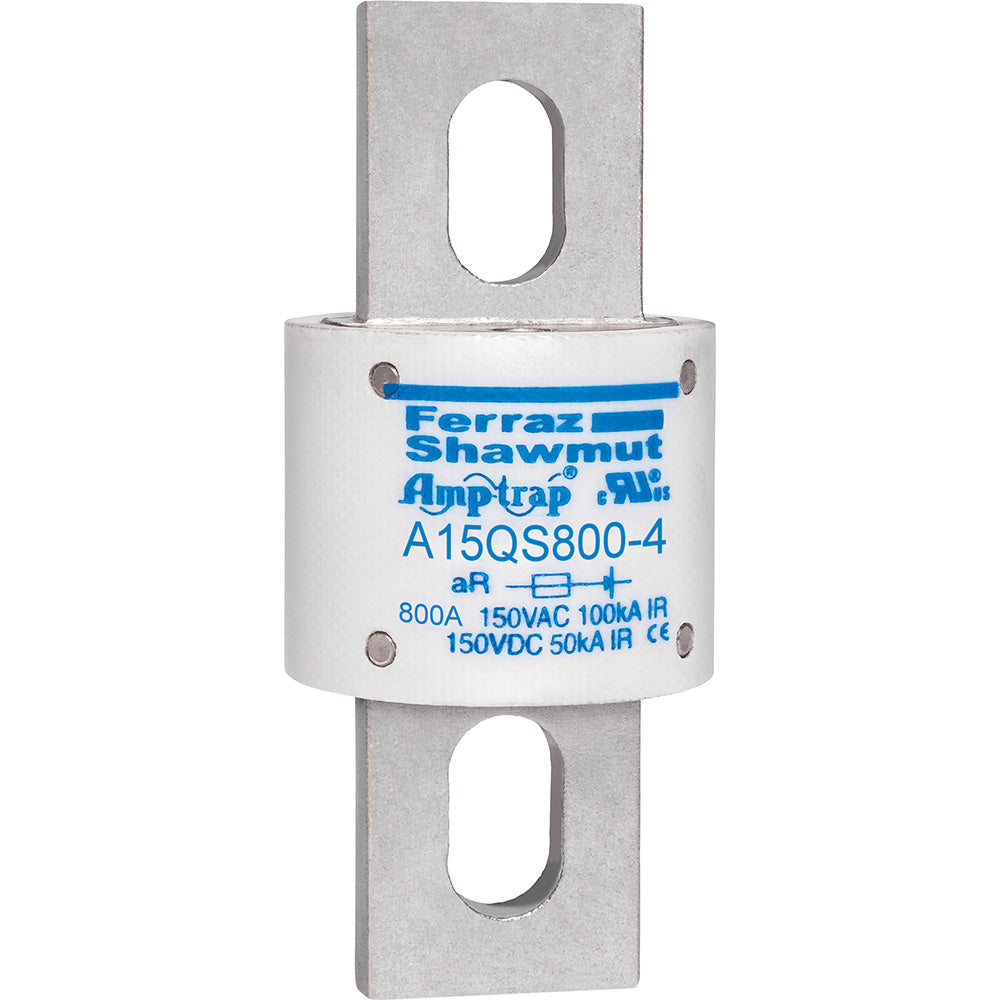

A15QS800-4
A15QS800-4 is a high speed semiconductor fuse from Eaton designed for 800 amps and 150 volts AC/DC applications with bolt-on mounting.This fuse features a fast-acting, current limiting design suitable for protecting semiconductor devices. It has a cylindrical fiberglass body measuring approximately 1.5 inches in diameter and 3.5 inches in length. Rated for 150 volts AC and DC, it supports interrupt ratings up to 50/100 kA and is classified as an aR type fuse. The bolt-on mounting ensures secure installation in electrical systems.
- Key Specifications
- Amperage: 800A
- Voltage Rating: 150V AC / 150V DC
- Fuse Type: High Speed Semiconductor
- Mounting Type: Bolt-On
- Interrupt Rating: 50/100 kA
- Body Material: Fiberglass
- Dimensions: 1.5" diameter x 3.5" length
- Fuse Class: aR
- Series: Amp-Trap A15QS
- Certifications: UL Listed
Specifications
- Part Number: A15QS800-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A15QS
- Voltage : 150
- Amperage : 800
- AIC rating : 100kA@150V
- Diameter : 1.5
- Barrels : 1
Product Data
- UPC : 78200128826
- GTIN : 00782001288266
- Weight : 3
