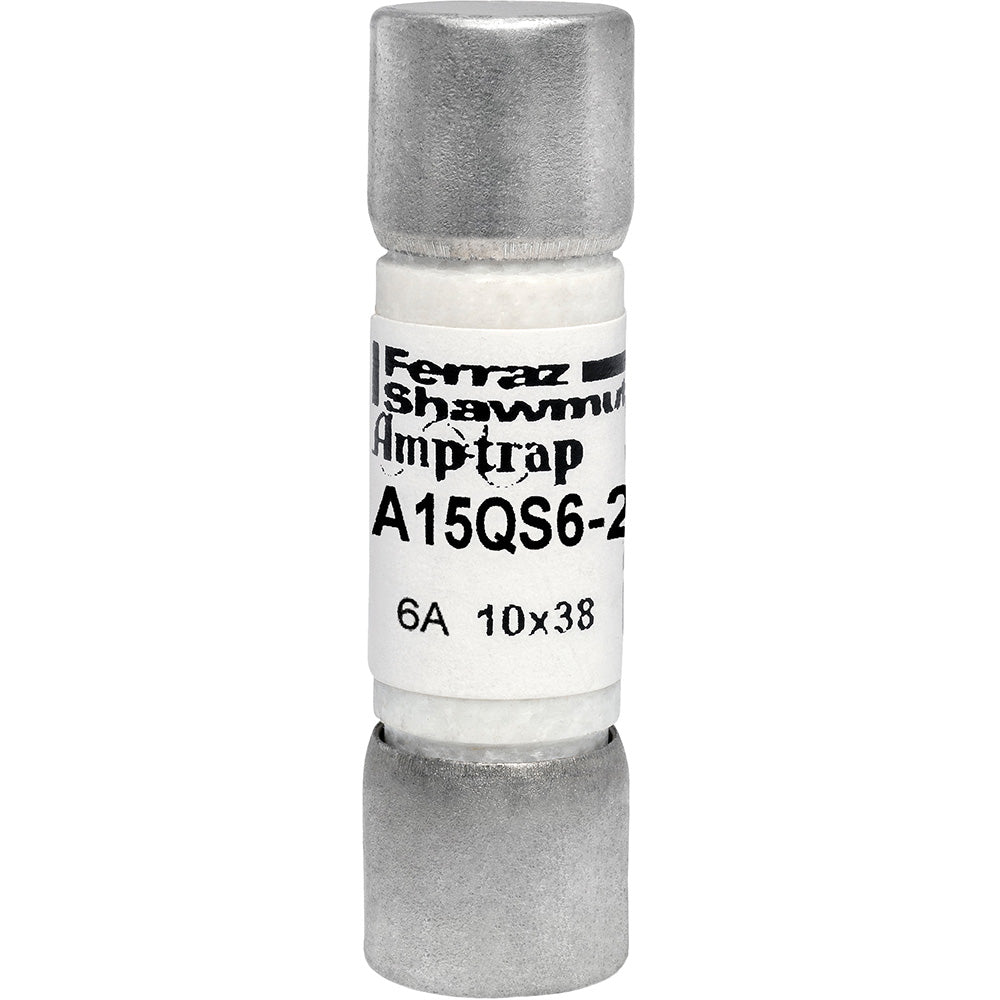

A15QS6-2
A15QS6-2 is a Mersen semiconductor fast acting fuse rated for 6 amps and 150 volts AC/DC designed for protecting semiconductor devices.
This A15QS6-2 Amp-Trap fuse features a cylindrical round body with a diameter of 0.41 inches and length of 1.5 inches. It has a high interrupt rating of 100kA at 150 VAC and 50kA at 150 VDC, providing reliable current limiting protection for diodes, electrochemical rectifiers, and other heavy-duty semiconductor devices. The fuse is UL recognized and tested to UL standards for AC and DC applications. It is designed to minimize damage to protected components by controlling arc voltage and reducing stress during fuse clearing.
- Key Specifications
- Current Rating: 6 Amps
- Voltage Rating: 150 VAC / 150 VDC
- Interrupt Rating: 100kA AC / 50kA DC
- Fuse Type: Semiconductor, Fast Acting
- Physical Size: 0.41 inch diameter x 1.5 inch length
- Mounting Style: Cylindrical / Round Body
- UL Recognized Component
- Designed for diode and semiconductor device protection
- Equivalent to Bussmann FWA style fuse
- Part Number: A15QS6-2
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A15QS
- Voltage : 150
- Amperage : 6
- AIC rating : 100kA@150V
- Connection : Ferrule
- Diameter : 0.41
- Barrels : 1
- UPC : 78200145343
- GTIN : 00782001453435
- Weight : 0.08
