Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

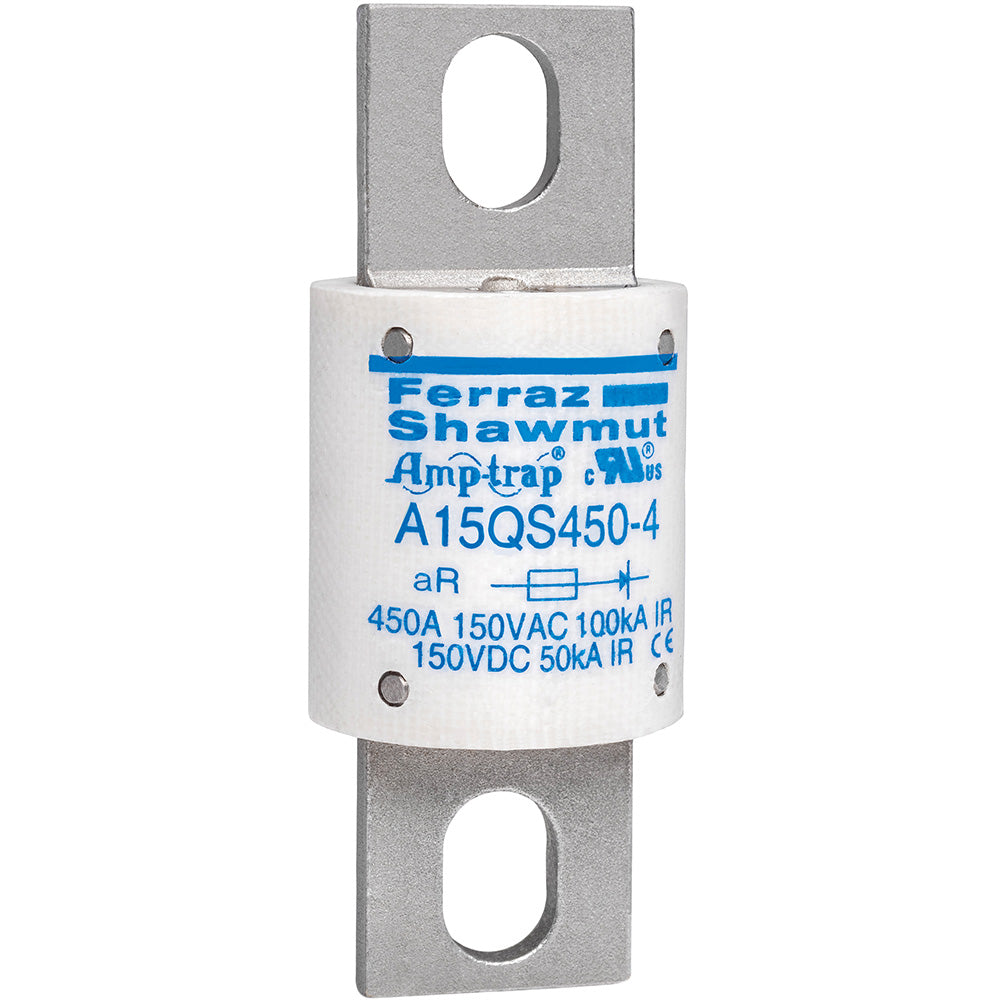

A15QS450-4
A15QS450-4 is a high speed semiconductor protection fuse from Eaton's Amp-Trap Form 101 series designed for 450 amps and 150 volts AC/DC applications.This fast-acting fuse provides reliable current limiting protection specifically for diodes and other semiconductor devices. It features a stud mounting style with bolt-in termination and an interrupt rating of 100kA at 150 VAC and 50kA at 150 VDC. The fuse body is constructed with GMG insulating material and tin-plated terminals for durability and secure connections.
- Amperage: 450 A
- Voltage Rating: 150 VAC / 150 VDC
- Fuse Type: Fast Acting, Current Limiting
- Interrupt Rating: 100kA at 150 VAC, 50kA at 150 VDC
- Mounting Style: Stud
- Termination Style: Bolt-In
- Series/Frame: Amp-Trap Form 101
- Body Material: GMG Insulating Material
- Terminal Material: Tin Plated
- Application: Semiconductor Device Protection
Specifications
- Part Number: A15QS450-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A15QS
- Voltage : 150
- Amperage : 450
- AIC rating : 100kA@150V
- Diameter : 1.13
- Barrels : 1
Product Data
- UPC : 78200128807
- GTIN : 00782001288075
- Weight : 2
