Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description

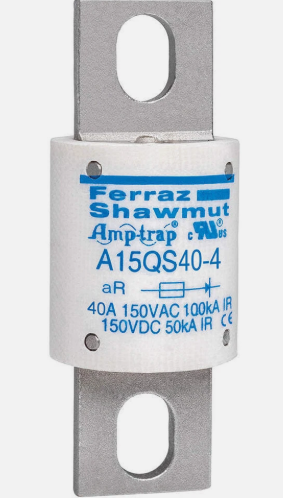

A15QS40-1
A15QS40-1 is a 40 amp, 150 volt semiconductor fast-acting fuse designed for protecting diodes and other semiconductor devices.
This Eaton A15QS series Amp-Trap Form 101 fuse features a compact design ideal for space-limited applications. It provides low I2t to minimize damage to protected components during short circuits and controlled arc voltage to reduce stress on circuit elements during fuse clearing. The fuse is clip mounted and UL recognized for safety and reliability.
- Key Specifications
- Amperage: 40 Amps
- Voltage Rating: 150 VAC/DC
- Fuse Type: Semiconductor Fast-Acting
- Mounting Type: Clip Mount
- Series: A15QS Amp-Trap Form 101
- Interrupt Rating: 100kA
- Overall Length: 50.8 mm (2.00 inches)
- Diameter: 20.6 mm (0.81 inches)
- Material: Ceramic
- UL Recognized Component
- Part Number: A15QS40-1
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Amp-Trap
- Type : A15QS
- Voltage : 150
- Amperage : 40
- AIC rating : 100kA@150V
- Connection : Ferrule
- Diameter : 0.81
- Barrels : 1
- Weight : 5.19
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
