Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A15QS150-4

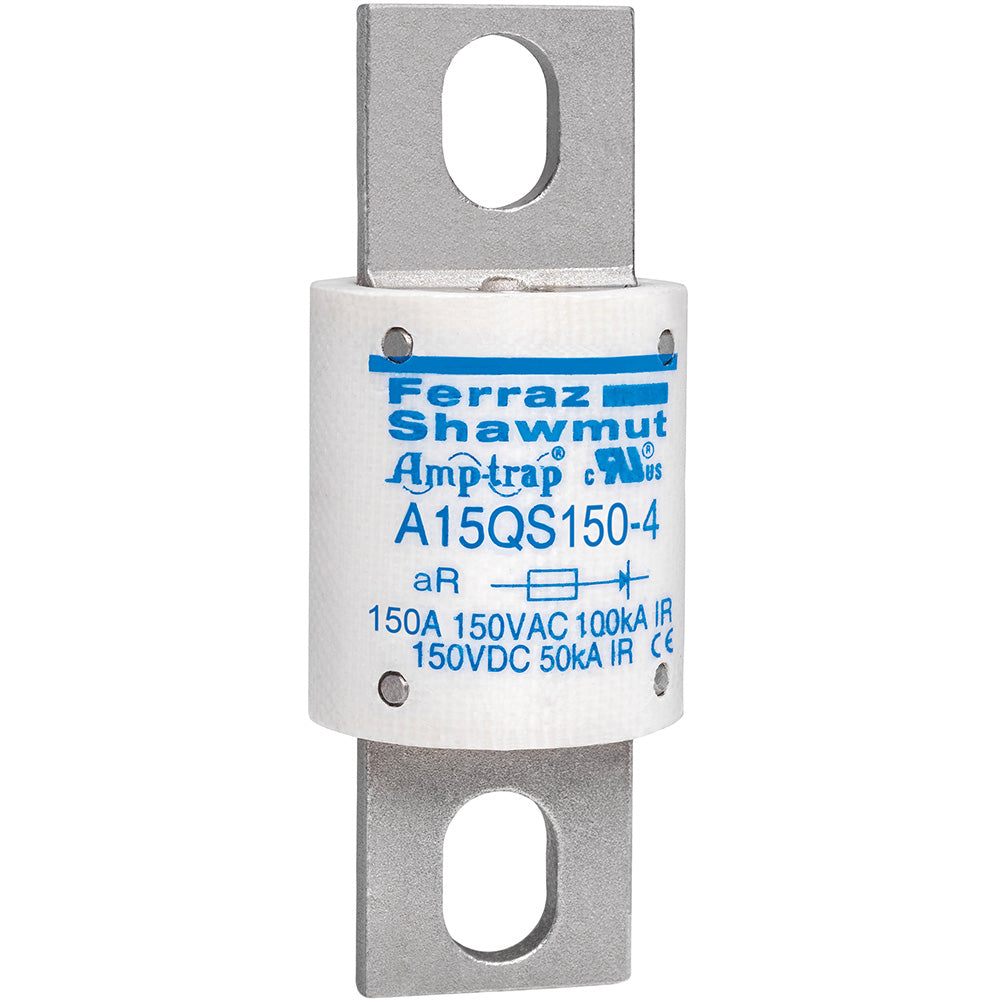

A15QS150-4 is a high speed semiconductor fuse designed for 150 amps and 150 volts AC/DC applications with bolt-on mounting.
This Eaton A15QS series fuse provides fast-acting, current-limiting protection specifically for diodes and other semiconductor devices. It features a fiberglass body, a bolt-on mounting style, and an interrupt rating of 100kA at 150V AC and 50kA at 150V DC. The compact design minimizes space requirements while controlling arc voltage to reduce stress on circuit components during fuse clearing. It is UL recognized and CSA certified, meeting industry safety standards.
- Amperage: 150A
- Voltage Rating: 150V AC / 150V DC
- Fuse Type: Semiconductor Fast-Acting
- Mounting Type: Bolt-On
- Interrupt Rating: 100kA AC, 50kA DC
- Body Material: Fiberglass
- Series: A15QS
- Standards: UL Recognized, CSA Certified
- Dimensions: Approx. 2.66 in length x 1.13 in diameter
- Application: Protection of diodes and semiconductor devices
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A15QS150-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A15QS
- Voltage : 150
- Amperage : 150
- AIC rating : 100kA@150V
- Diameter : 1.13
- Barrels : 1
Product Data
- UPC : 78200128777
- GTIN : 00782001287771
- Weight : 0.17
