Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

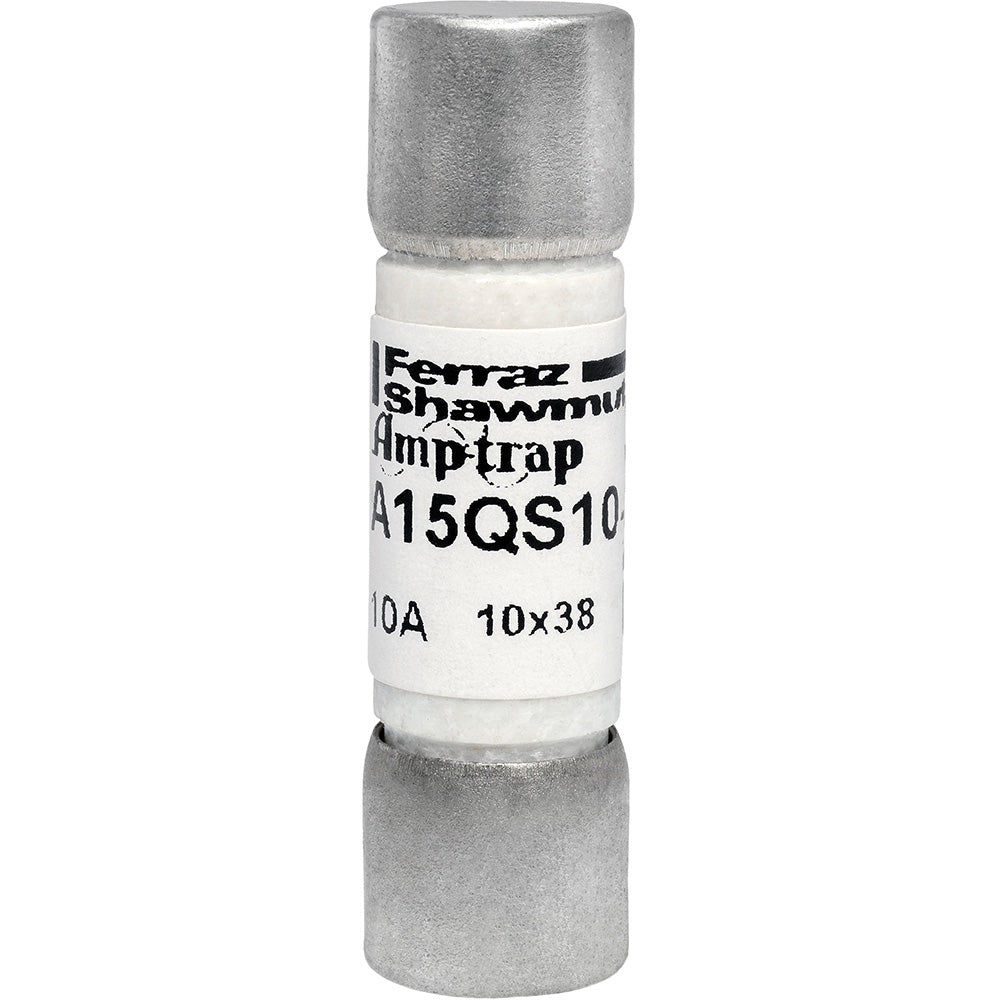

A15QS10-2
A15QS10-2 is a high-speed semiconductor fuse designed for precise protection of sensitive electronic components in AC/DC circuits up to 150 volts. This compact fuse is ideal for applications where space is limited and fast-acting, current-limiting protection is required. The A15QS10-2 features a cylindrical body with ferrule terminals and is part of the Amp-Trap® A15QS series, known for its low I²t and controlled arc voltage to minimize damage during short circuits. It is suitable for use in AC/DC drives, UPS systems, rectifiers, and other equipment rated at 150 VAC or less.
- Amperage Rating: 10 A
- Voltage Rating: 150 VAC / 150 VDC
- Interrupt Rating: 50 kA at 150 VDC, 100 kA at 150 VAC
- Mounting Type: Ferrule
- Series/Frame: A15QS Amp-Trap®
- Body Type: Cylindrical/Round
- Physical Size: 0.41" Dia x 1.5" L
- Fast-Acting
- Current Limiting
- UL Listed (File No. E60314, Guide JFHR8)
- CSA Certified
- RoHS Compliant
Specifications
- Part Number: A15QS10-2
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A15QS
- Voltage : 150
- Amperage : 10
- AIC rating : 100kA@150V
- Connection : Ferrule
- Diameter : 0.41
- Barrels : 1
Product Data
- UPC : 078200145777
- GTIN : 00782001457778
- Weight : 0.02
