Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description
A155F2DSR0-150E

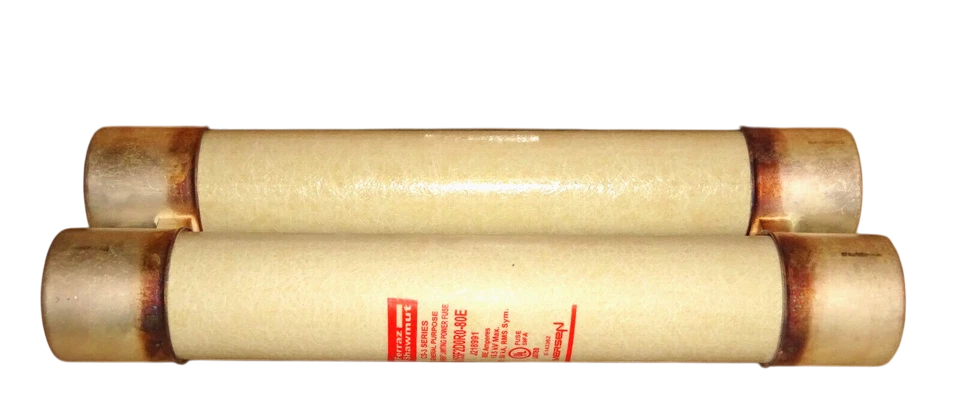

A155F2DSR0-150E is a Mersen CS-3 Series medium voltage ferrule-mount fuse designed for transformer protection in indoor and outdoor applications.
This current-limiting fuse features a 2-barrel ferrule design with spring-reinforced clip mounting. The fuse operates at 15.5kV AC with a 150A current rating and provides fast-blow response characteristics. It is rated for a 50kA interrupting rating (symmetric) and measures 21.75 inches in length with a 3-inch diameter. The fuse is UL approved and suitable for both indoor and outdoor installations.
- Part Number: A155F2DSR0-150E
- Manufacturer: Mersen
- Voltage Rating: 15.5kV AC
- Current Rating: 150A
- Fuse Type: Ferrule Mount, 2-Barrel
- Interrupting Rating: 50kA RMS Symmetric
- Response Time: Fast Blow
- Length: 21.75 inches
- Diameter: 3 inches
- Mounting: Spring-Reinforced Clip
- Series: CS-3
- Certifications: UL Approved
- Applications: Transformer Protection, Indoor/Outdoor
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A155F2DSR0-150E
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CS-3 Series
- Type : A155F
- Voltage : 15500
- Amperage : 150
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 2
- Clip Center : 18
Product Data
- UPC : 78200180246
- GTIN : 00782001802462
- Weight : 10
