Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage Fuse
Description

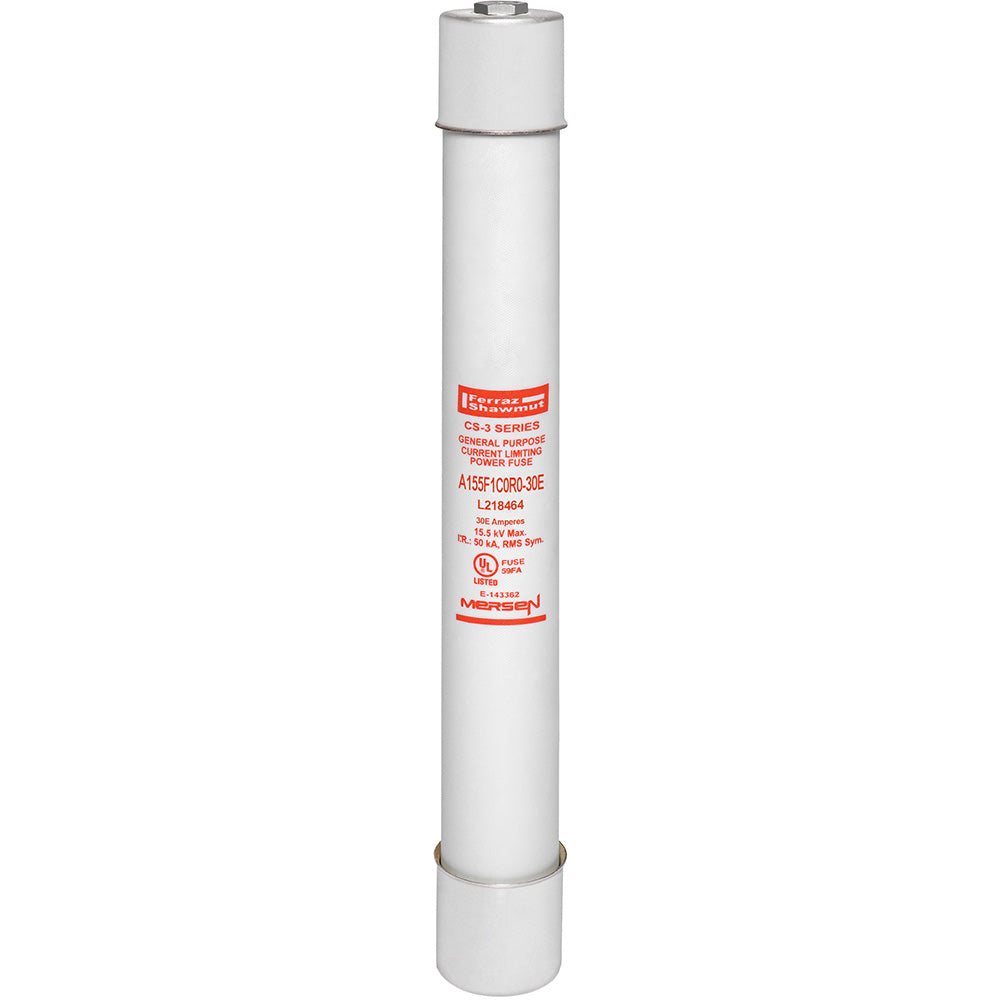

A155F1C0R0-30E
A155F1C0R0-30E is a medium voltage transformer protection fuse rated for 30 amperes at 15,500 volts AC with ferrule mounting and visual blown-fuse indicator. Mersen AMP-TRAP transformer fuses are engineered to withstand magnetizing inrush currents while providing reliable overcurrent protection in indoor distribution applications. This E-rated fuse features a 2-inch diameter barrel, 17.03-inch length, and is designed for use with standard fuse supports and disconnects. The fuse employs current-limiting technology to melt at currents as low as 1.7 times the rated amperage up to its maximum interrupting capacity.
- Current Rating: 30 Amperes
- Voltage Rating: 15,500 VAC (15.5 kV)
- Fuse Type: Medium Blow, E-Rated
- Mounting: Ferrule Mount
- Interrupt Rating: 50,000 Amperes Symmetrical at 15.5 kVAC
- Barrel Diameter: 2 Inches
- Overall Length: 17.03 Inches
- Series: C0R0
- Application: Transformer Protection, Indoor Distribution
- Features: Visual Blown-Fuse Indicator, AMP-TRAP Design
- Certifications: UL Listed
Specifications
- Part Number: A155F1C0R0-30E
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CS-3 Series
- Type : A155F
- Voltage : 15500
- Amperage : 30
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 2
- Class Rating : E
- Barrels : 1
- Clip Center : 15
Product Data
- UPC : 078200180479
- GTIN : 00782001804794
- Weight : 5
- Certification : Some UL listed to standard File E143362
