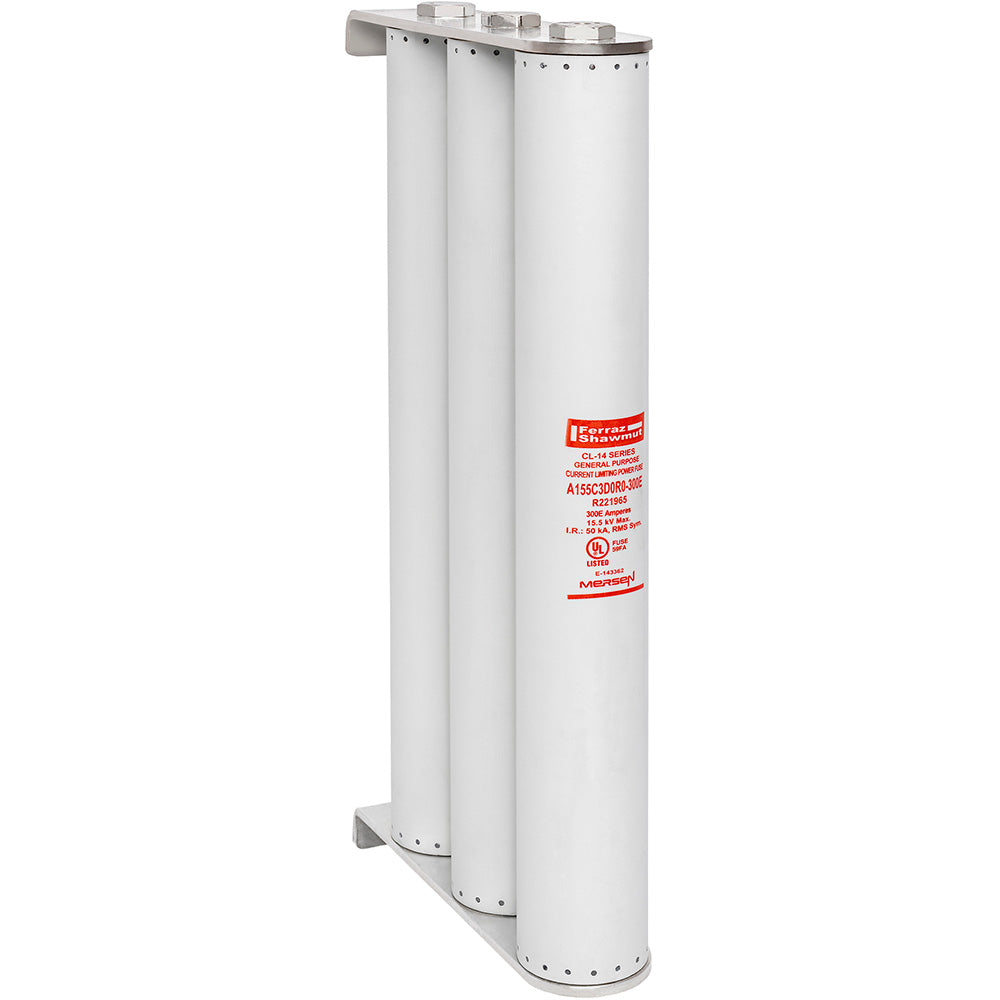

A155C3D0R0-300E - Mersen 300A 15.5kV E-Rated Clip-Lock Medium Voltage Transformer Fuse

A155C3D0R0-300E

A155C3D0R0-300E is a 300 amp, 15.5 kV E-rated medium voltage fuse with a clip-lock mounting system designed for transformer and distribution line protection.

This Mersen Amp-Trap fuse provides reliable overload and short circuit protection with a 50 kA interrupting rating. It features a visual indicator for fuse status and is constructed with silver-plated copper blade terminals for superior connection. The fuse is designed to withstand transformer magnetizing inrush current and is sized with three 3-inch diameter barrels (size D0R0 series). Its body is made of PolyTube insulating material, ensuring durability and safety in medium voltage applications.

• Amperage: 300 A
• Voltage Rating: 15,500 VAC
• Fuse Speed/Characteristic: E-Rated
• Mounting Type: Clip-lock
• Interrupt Rating: 50 kA
• Series/Frame: D0R0
• Visual Indicator: Yes
• Connection Material: Silver-Plated Copper
• Connection Type: Blade
• Body Material: PolyTube
• Number of Barrels: Triple (3 barrels, 3 inch diameter each)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A155C3D0R0-300E
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : CL-14 Series
• Type : A155C3
• Voltage : 15500
• Amperage : 300
• AIC rating : [email protected]
• Diameter : 4.31
• Class Rating : E
• Barrels : 3
• Clip Center : 21.25

Product Data

• UPC : 782001804558
• GTIN : 00782001804558
• Country of Origin : Mexico
• Dimensions : x 22.81 in x
• Weight : 43
• Certification : Some UL Listed to standard File E143362
