Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage
Description
A155C2D0R0-200E

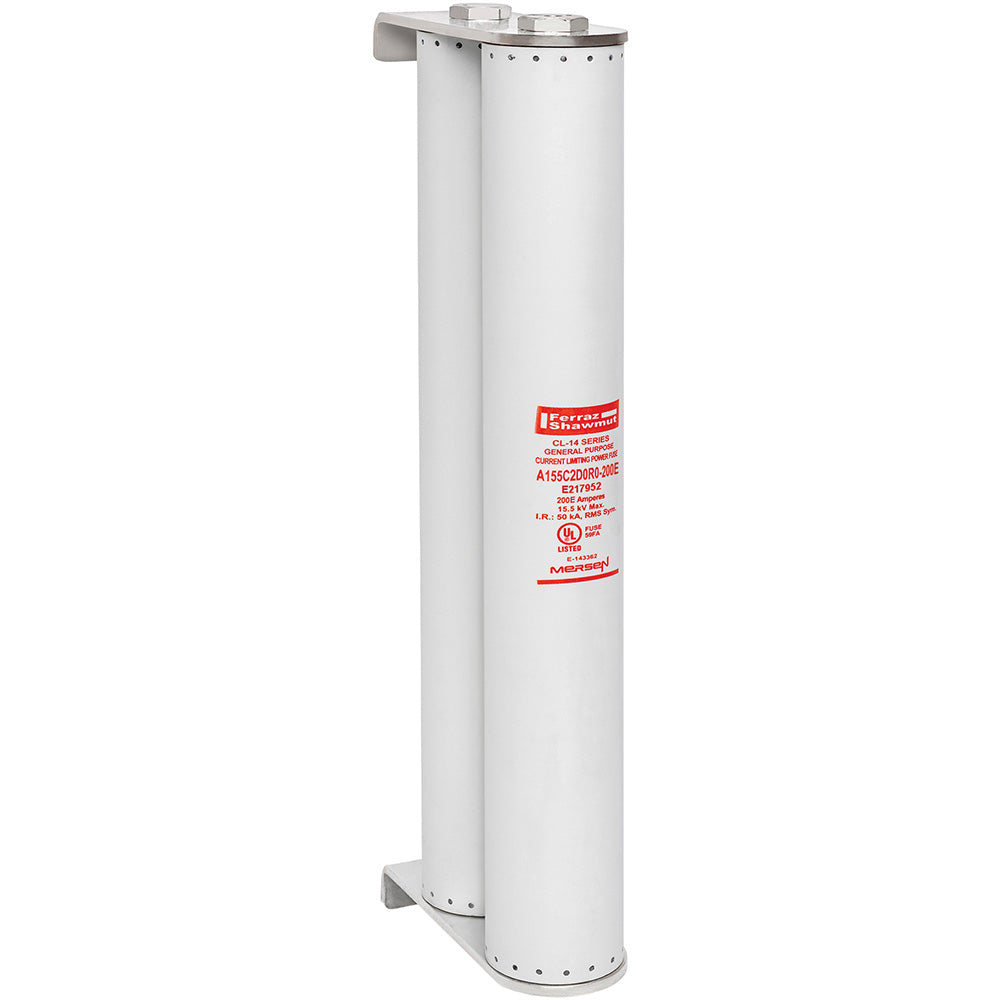

A155C2D0R0-200E is a medium voltage E-rated transformer protection fuse designed for reliable circuit protection in demanding electrical environments. This Mersen AMP-TRAP® fuse features a 2-barrel construction with a clip-lock mounting system, providing a secure connection and easy replacement. The fuse is rated for 200 amps and 15,500 volts AC, making it suitable for medium voltage transformer applications. It includes a visual blown-fuse indicator for quick status identification and is built to withstand transformer magnetizing inrush currents. The blade terminal type is silver-plated copper for optimal conductivity.
- 200A Current Rating
- 15,500V AC Voltage Rating
- 2-Barrel Construction
- Clip-Lock Mounting
- 50kA Interrupt Rating
- Blade Terminal Type
- Silver-Plated Copper Terminal Material
- Visual Blown-Fuse Indicator
- UL Certified
- Designed for Transformer Protection
- Withstands Transformer Magnetizing Inrush Current
- 3 Inch Diameter (Size D)
Specifications
- Part Number: A155C2D0R0-200E
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : CL-14 Series
- Type : A155C2
- Voltage : 15500
- Amperage : 200
- AIC rating : [email protected]
- Diameter : 4.31
- Class Rating : E
- Barrels : 2
- Clip Center : 21.25
Product Data
- UPC : 078200180270
- GTIN : 00782001802707
- Weight : 28
