Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage
Description

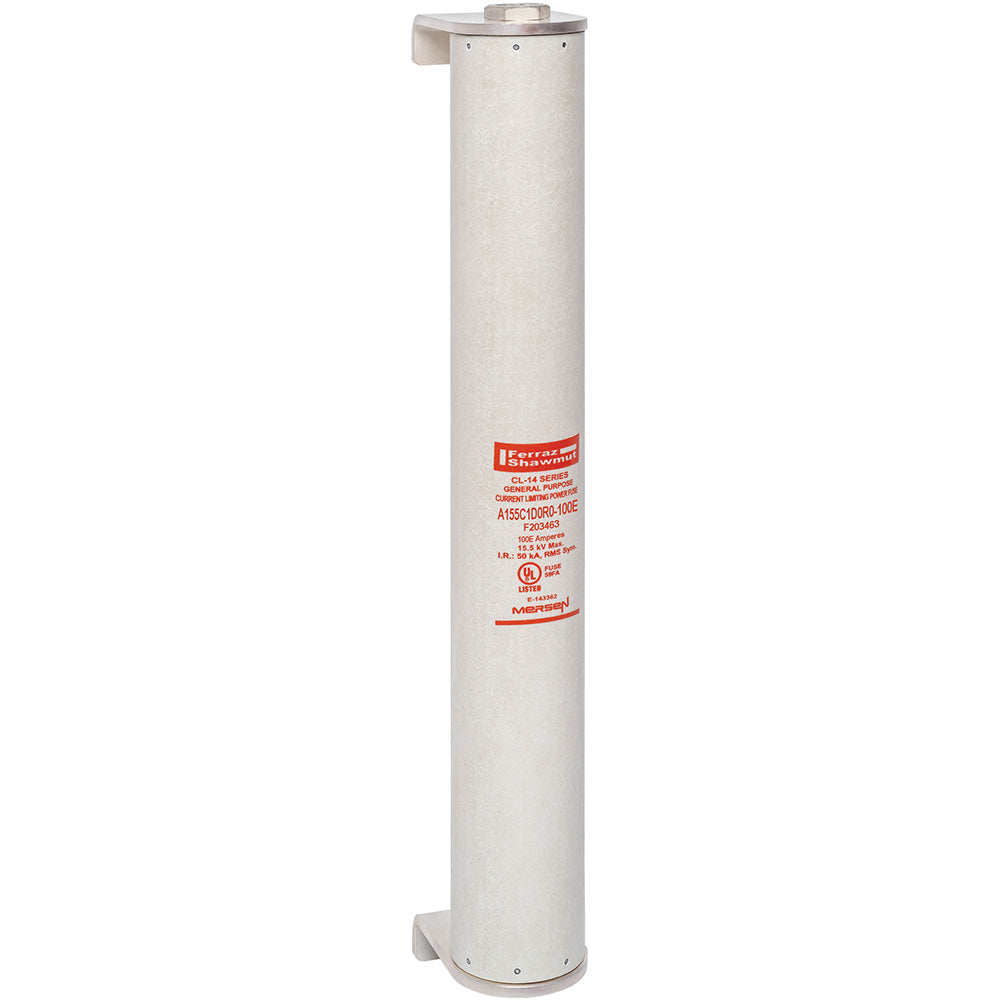

A155C1D0R0-100E
A155C1D0R0-100E is a 100 amp, 15.5 kV E-rated clip-lock mount fuse designed for transformer protection.
This Mersen Amp-Trap fuse provides current-limiting protection for medium voltage transformers and distribution systems. It features a clip-lock mounting style for secure and reliable installation, a visual blown-fuse indicator for easy status identification, and is designed to withstand transformer magnetizing inrush currents. The fuse is UL listed and suitable for use in 50/60 Hz systems with a maximum operating temperature of 80 degrees Celsius.
- Amperage: 100 A
- Voltage Rating: 15.5 kV AC
- Fuse Speed/Characteristic: E-Rated
- Mounting Type: Clip-lock
- Interrupt Rating: 50 kA
- Series: D0R0
- Visual Indicator: Amp-Trap blown-fuse indicator
- Maximum Operating Temperature: 80 °C
- Frequency: 50/60 Hz
- UL Listed (File E143362)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A155C1D0R0-100E
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : CL-14 Series
- Type : A155C1
- Voltage : 15500
- Amperage : 100
- AIC rating : [email protected]
- Diameter : 4.31
- Class Rating : E
- Barrels : 1
- Clip Center : 21.25
Product Data
- UPC : 078200180450
- GTIN : 00782001804503
- Weight : 16
