Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description

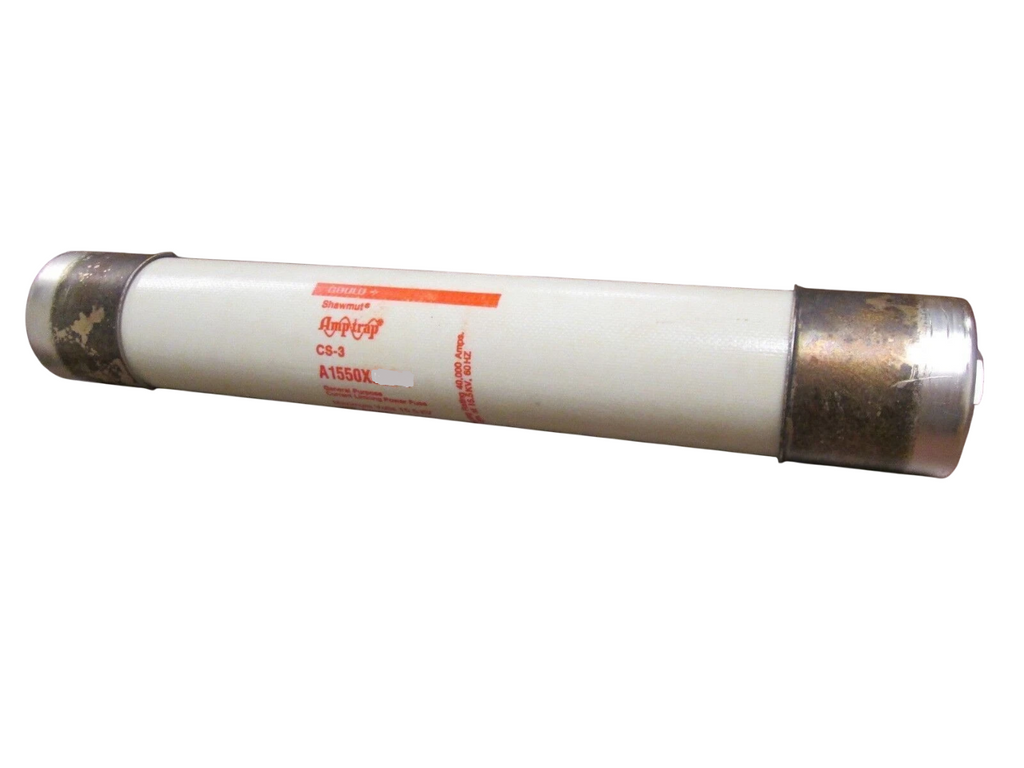

A1550X80E-1
A1550X80E-1 is an Eaton medium voltage current limiting fuse designed for electrical equipment protection up to 15.5kV with an 80 ampere rating.This fuse belongs to the E-Rated series, providing reliable current limiting protection with a 50,000 amp interrupting rating. It features a fiberglass tube construction with plated endcaps and is suitable for transformer and feeder protection applications. The fuse complies with ANSI C37.46 performance standards and is UL listed, ensuring high safety and quality standards.
- Amperage: 80A
- Voltage Rating: 15.5kV
- Interrupt Rating: 50,000 Amps
- Fuse Type: Current Limiting
- Series: E-Rated
- Construction: Fiberglass tube with plated endcaps
- Application: Transformer and feeder protection
- Standards: ANSI C37.46 compliant
- Certification: UL Listed
Specifications
- Part Number: A1550X80E-1
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : CS-3 Series
- Voltage : 15500
- Amperage : 80
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 15
Product Data
- Weight : 5.19
