Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
A1550X65E-1

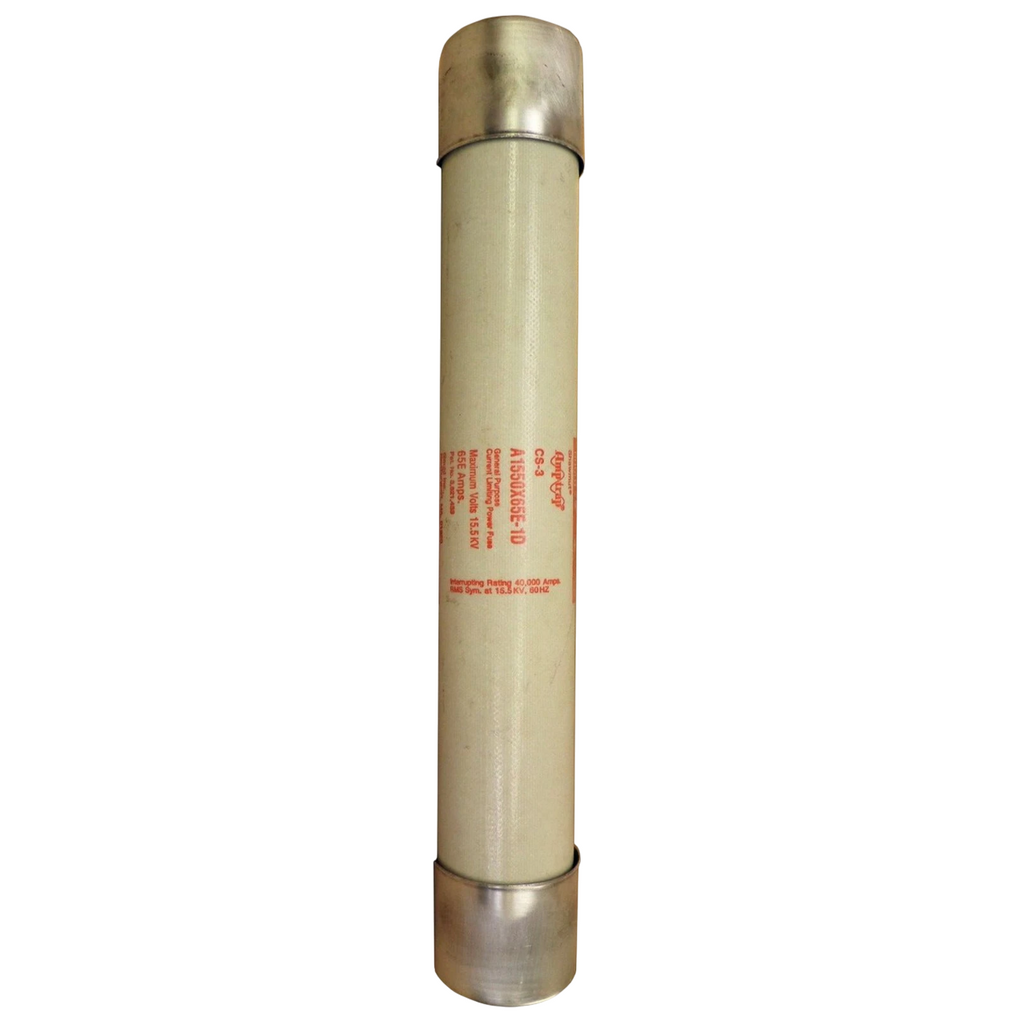

A1550X65E-1 is a medium voltage current limiting fuse designed for power distribution and circuit protection applications. This E-rated fuse is part of the CS-3 Series and provides reliable protection in medium voltage electrical systems. The fuse features a 2-barrel design with a 3-inch diameter, making it compatible with standard medium voltage fuseclips and holders. It is UL Listed under Guide JEEG, File E240398, and meets the performance characteristics of ANSI C37.46 standards. Key Specifications
- Part Number: A1550X65E-1
- Manufacturer: Eaton (Ferraz Shawmut)
- Voltage Rating: 15.5 kV
- Amperage Rating: 65E Amp
- Series: CS-3
- Fuse Type: Current Limiting, E-Rated
- Barrel Configuration: 2 Barrel
- Diameter: 3 inches
- Interrupt Rating: 40 kA RMS Symmetrical
- Certifications: UL Listed, ANSI C37.46 Compliant
- Weight: Approximately 11 lbs
Specifications
- Part Number: A1550X65E-1
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : CS-3 Series
- Voltage : 15500
- Amperage : 65
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 2
- Clip Center : 15
Product Data
- Weight : 26
