Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage
Description

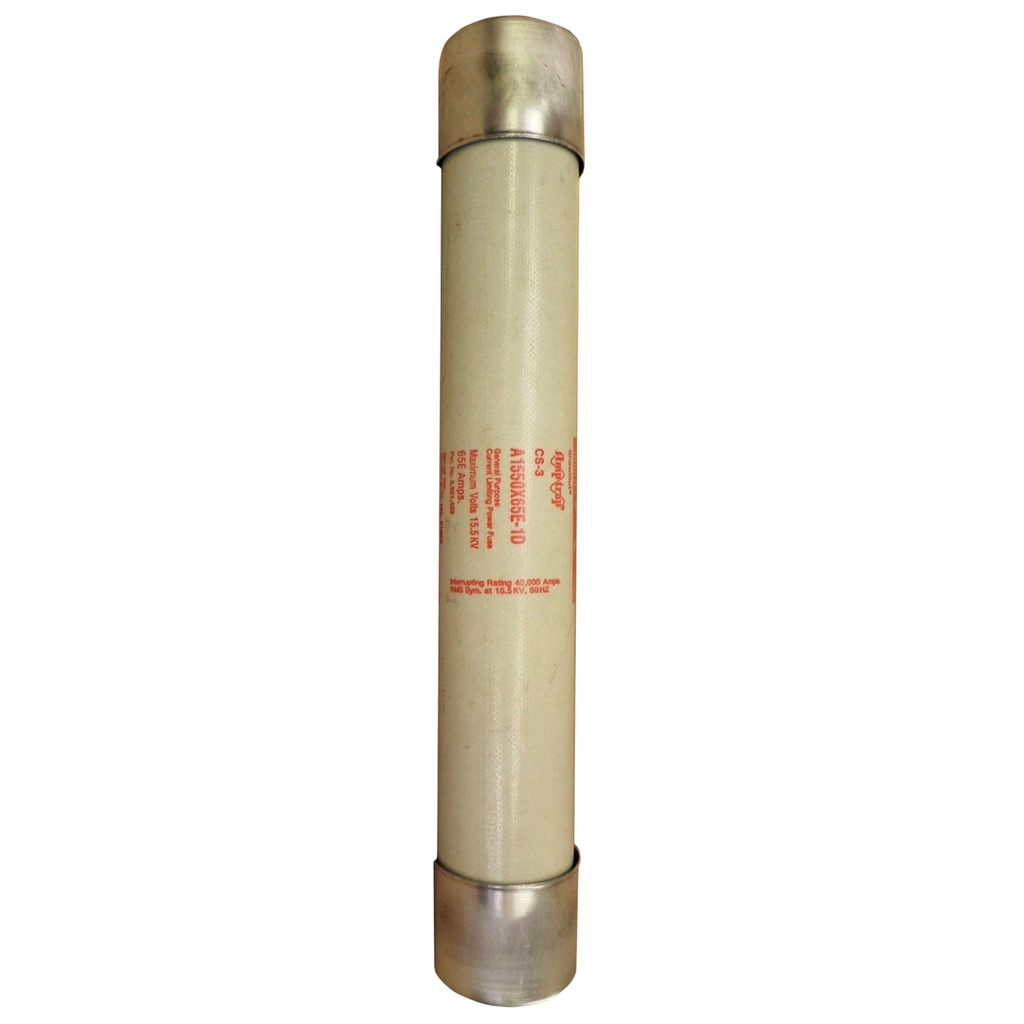

A1550X50E-1
A1550X50E-1 is a Mersen medium voltage current-limiting fuse designed for power distribution systems. This Class E rated fuse operates at 15.5kV and is rated for 50 amperes, featuring a 3-inch barrel diameter construction typical of the Amp-Trap CS-3 series. The fuse is engineered to limit fault current and minimize let-through energy during overcurrent events, melting at currents as low as 1.7 times the rated amperage up to its maximum interrupting rating. Key Specifications
- Part Number: A1550X50E-1
- Manufacturer: Mersen
- Voltage Rating: 15.5kV
- Amperage Rating: 50A
- Class: E-Rated
- Series: Amp-Trap CS-3
- Barrel Diameter: 3 inches
- Type: Current-Limiting Fuse
- Application: General Purpose Power Distribution
- Maximum Interrupting Rating: 50kA RMS Symmetrical
Specifications
- Part Number: A1550X50E-1
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : CS-3 Series
- Voltage : 15500
- Amperage : 50
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 15
Product Data
- Weight : 5.19
