Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage
Description
A1550X150E-1D

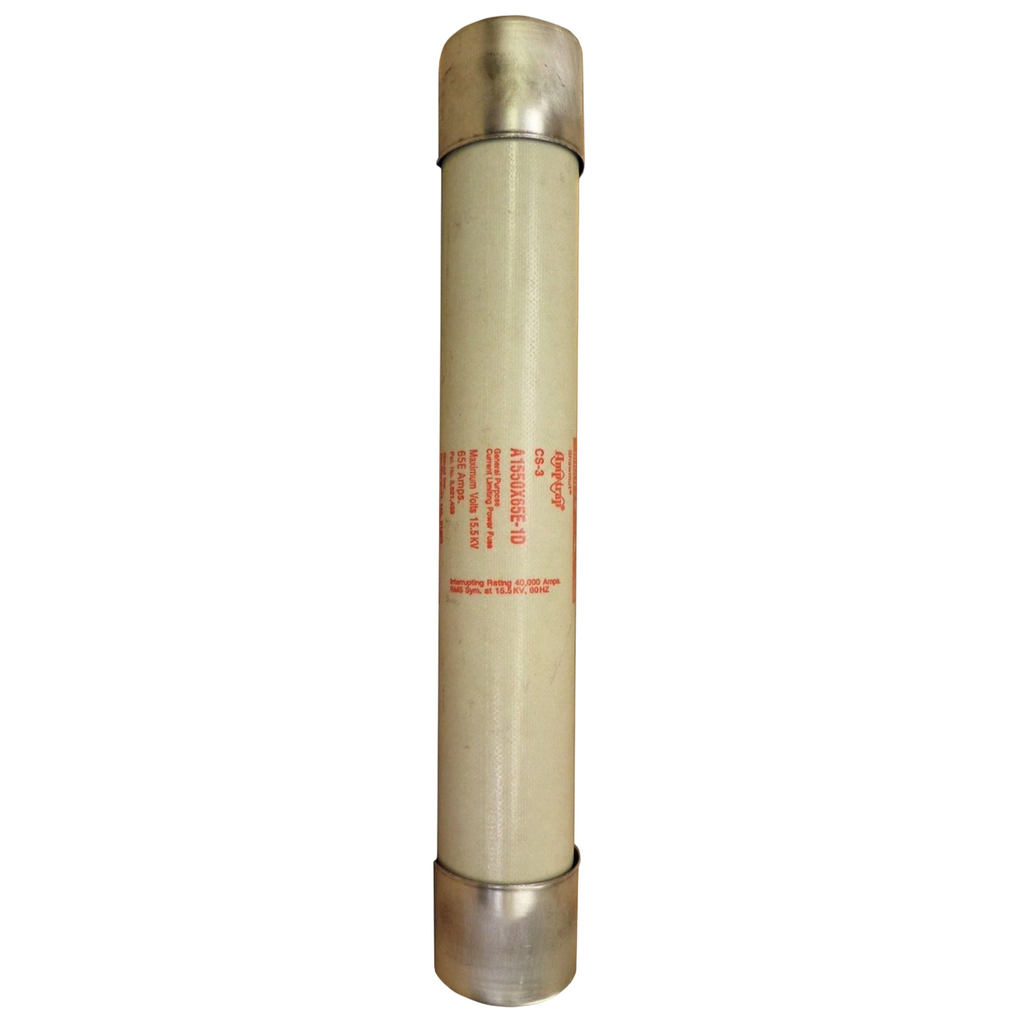

A1550X150E-1D is a Mersen clip mount transformer fuse designed for high voltage protection applications.This fuse provides current-limiting protection for transformers and distribution lines, capable of withstanding transformer magnetizing inrush current. It features a 150E amp rating and a voltage rating of 15.5 kV AC. The fuse body is constructed with a polytube insulating material and uses silver-plated copper ferrule terminals for reliable connection. It mounts using spring reinforced clips and includes a visual blown-fuse indicator for easy status identification. This fuse is part of Mersen's Amp-Trap series, known for superior equipment protection and compatibility with UL listed equipment.
- Key Specifications
- Manufacturer: Mersen
- Amperage Rating: 150E Amp
- Voltage Rating: 15.5 kV AC
- Mounting Type: Clip Mount
- Fuse Type: Transformer Fuse
- Body Material: Polytube
- Terminal Material: Silver-Plated Copper
- Connection Type: Ferrule
- Current-Limiting: Yes
- Visual Indicator: Yes
- Part Number: A1550X150E-1D
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : CS-3 Series
- Voltage : 15500
- Amperage : 150
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 2
- Clip Center : 18
- Weight : 25
